Coil Operation Check

Connect a 12-volt test light to negative terminal of ignition coil. See Fig 1. Ground test light. Crank engine, but do not start. Test light should flicker slightly.

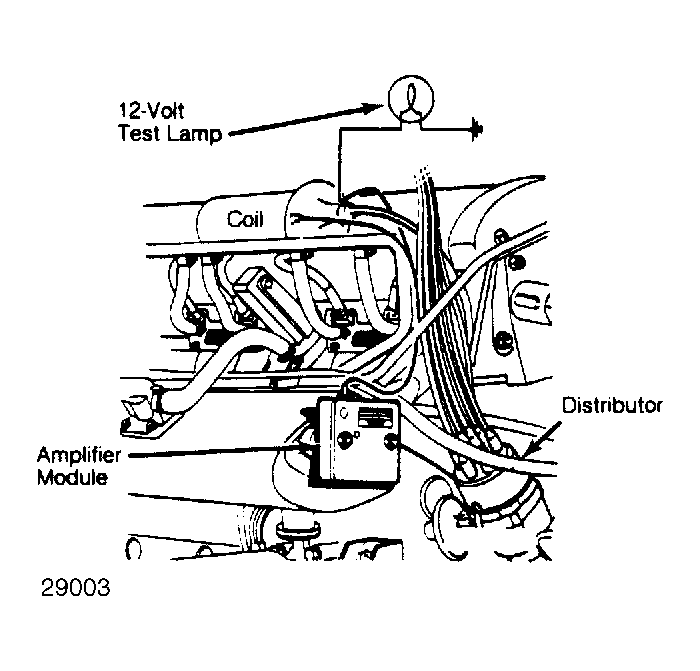

Fig 1: Checking Ignition Coil Operation

Courtesy of JAGUAR CARS, INC.
