Fuel Injection System - LUCAS/BOSCH "P": Wiring Diagram

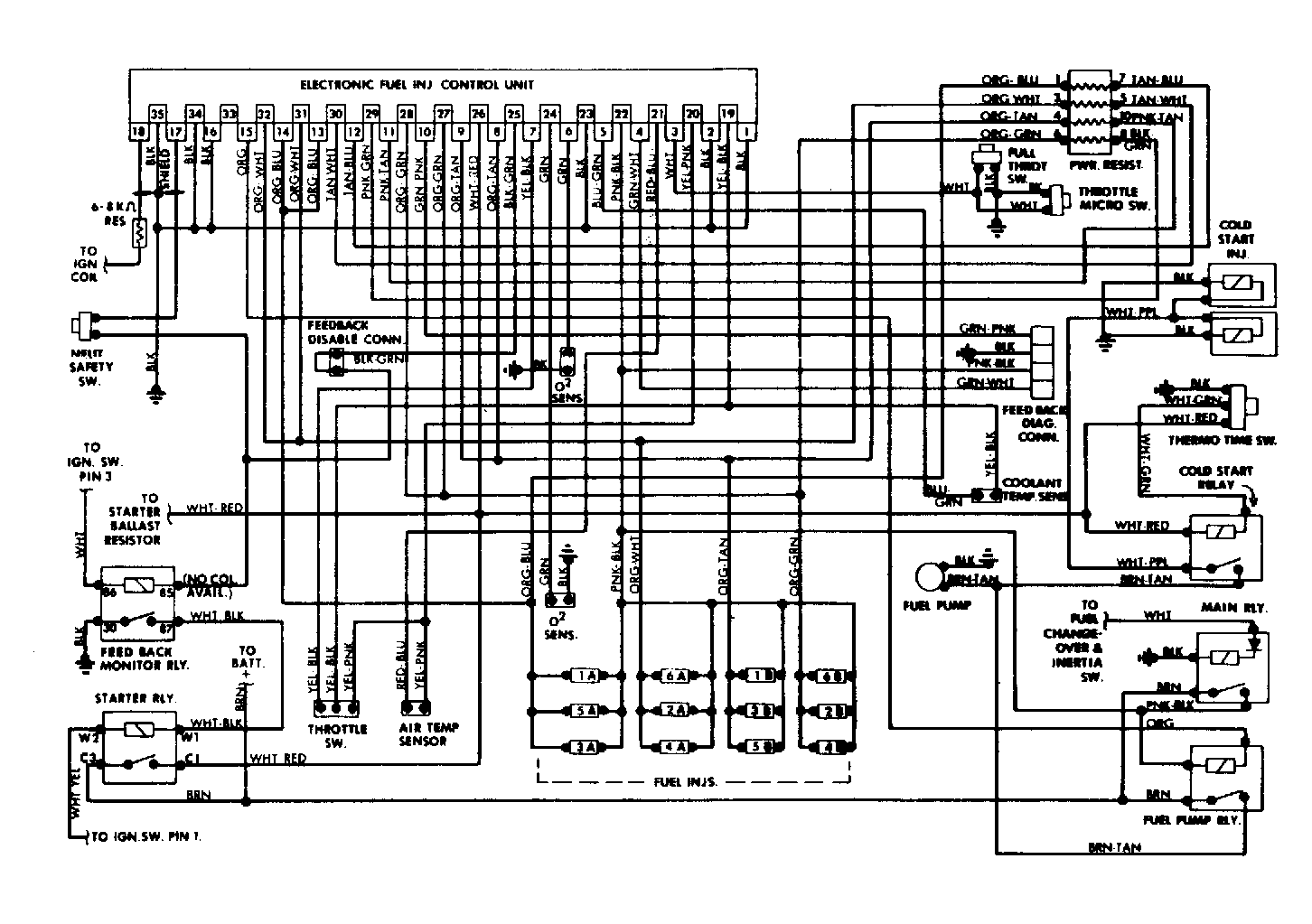

Fig 1: Lucas-Bosch "P" Type Fuel Injection System Wiring Diagram

G62380
