Alignment Specifications
WHEEL ALIGNMENT SPECIFICATIONS
| Application |
Specification |
| XJ6 III, XJS |

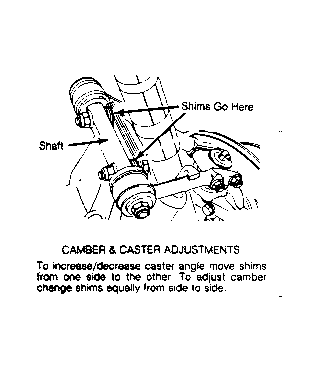

| Front (See Figure
) |
| Camber in Degrees |
| Fraction |
-1/2 +/- 1/4 |
| Decimal |
-.500 +/- .250 |
| Caster in Degrees |
| Fraction |
3 1/2 +/- 1/4 |
| Decimal |
3.500 +/- .250 |
| Toe-In in Inches |
| Fraction |
1/16 +/- 1/16 |
| Decimal |
.063 +/- .063 |
| Toe-In in Degrees |
| Fraction |
1/8 +/- 1/8 |
| Decimal |
.125 +/- .125 |
| Toe-Out in Turns |
| Inner |
|
| Outer |
|
| Steering Axis Inclination (SAI) |
2° |

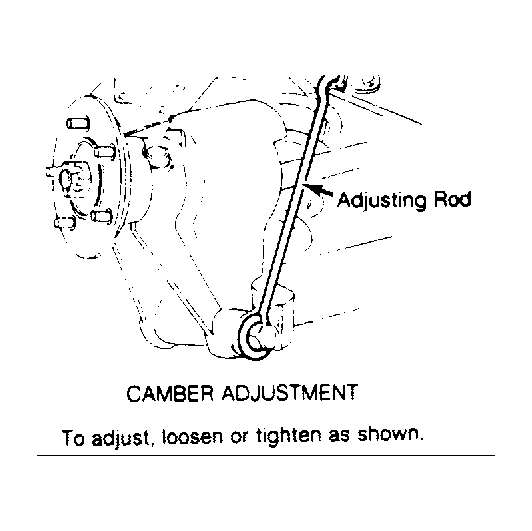

| Rear (See Figure
) |
| Camber in Degrees |
| Fraction |
-3/4 +/- 1/4 |
| Decimal |
-.750 +/- .250 |
| Caster in Degrees |
| Fraction |
N/A |
| Decimal |
N/A |
| Toe-In in Inches |
| Fraction |
0 +/- 1/32 |
| Decimal |
0 +/- .032 |
| Toe-In in Degrees |
| Fraction |
0 +/- 1/16 |
| Decimal |
0 +/- .063 |
| Toe-Out in Turns |
| Inner |
N/A |
| Outer |
N/A |
| Steering Axis Inclination (SAI) |
N/A |
