System Specifications

Engine Specifications

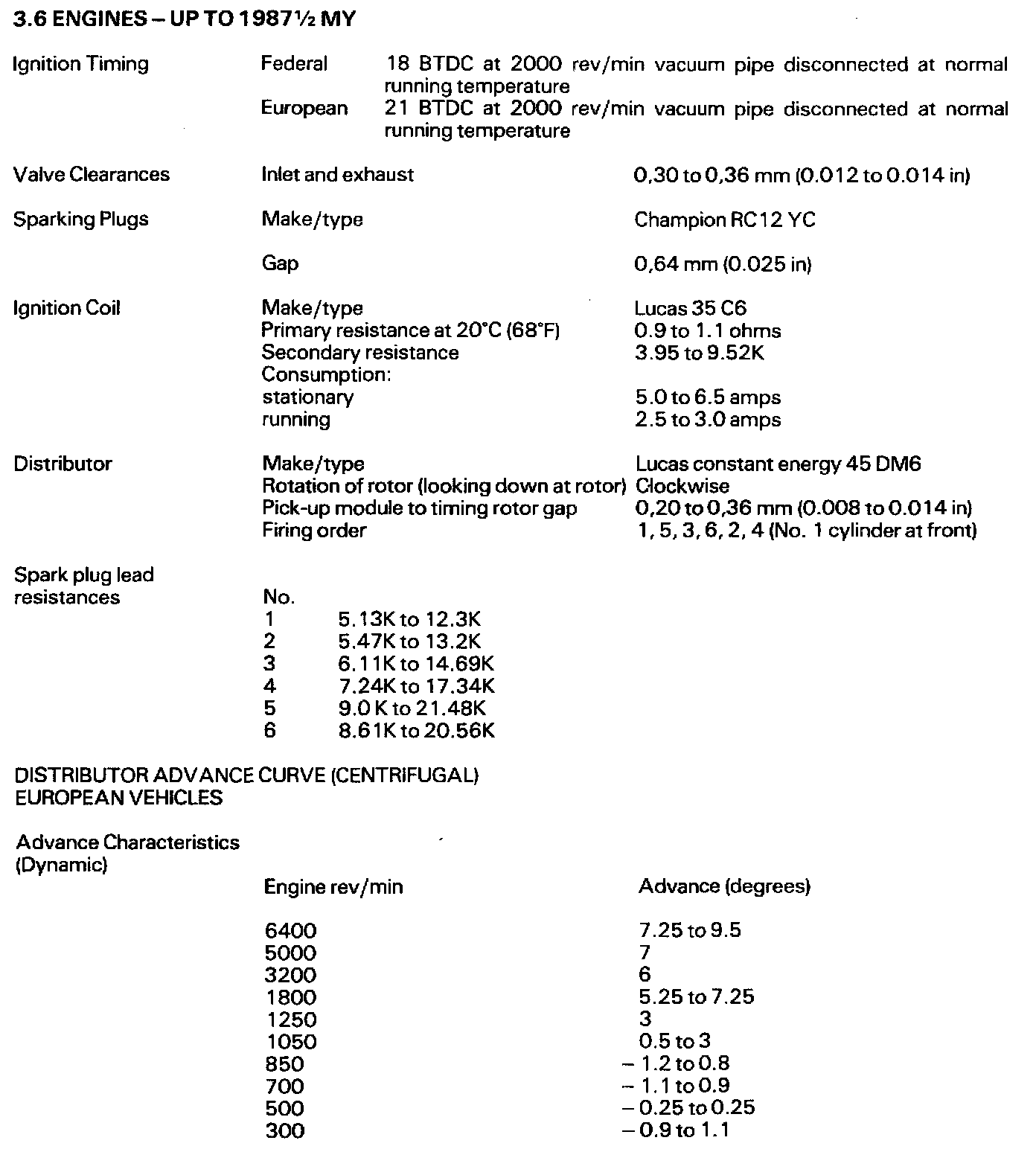

Engine Specifications Up To 1987 1/2 Model Year:

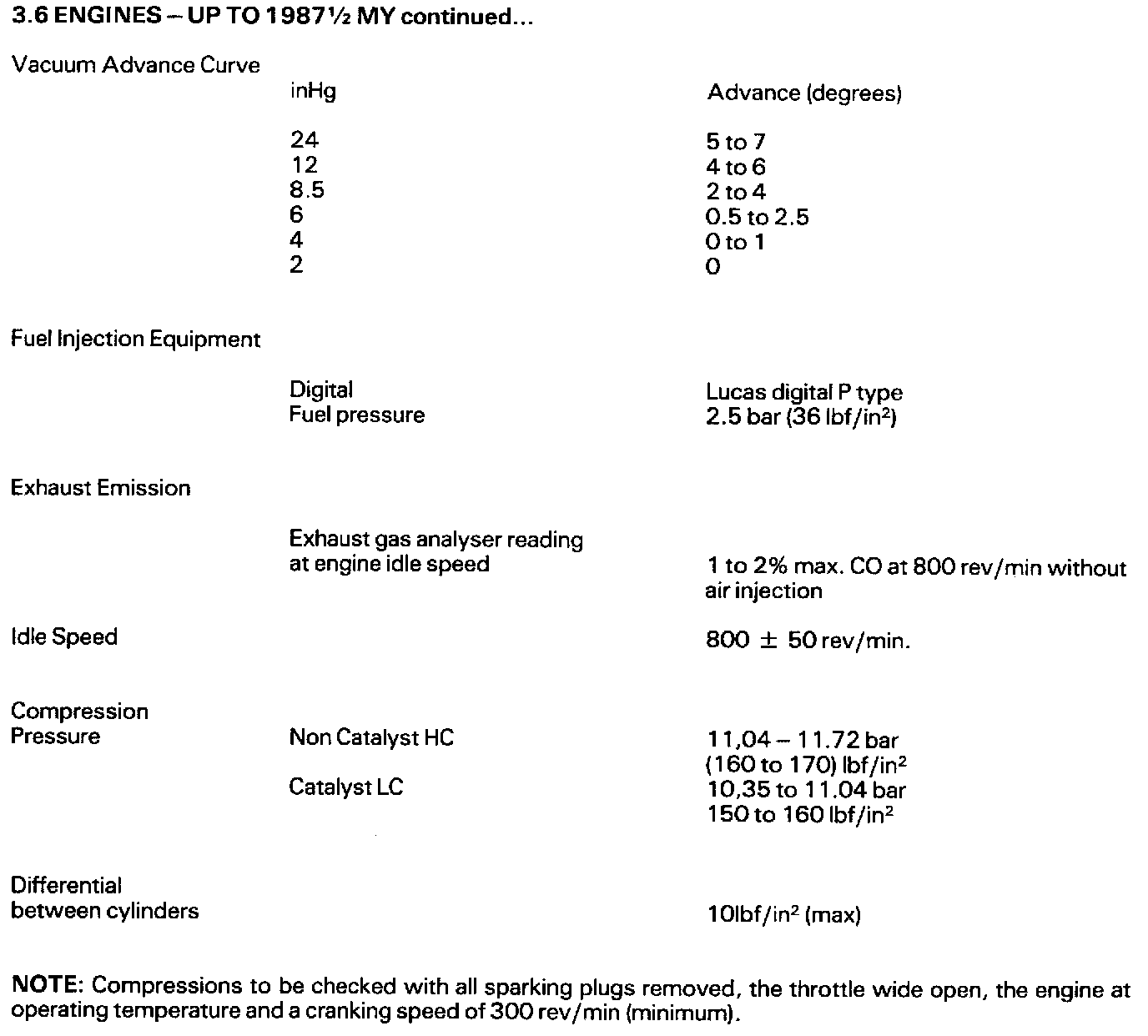

Engine Specifications Up To 1987 1/2 Model Year Continued:

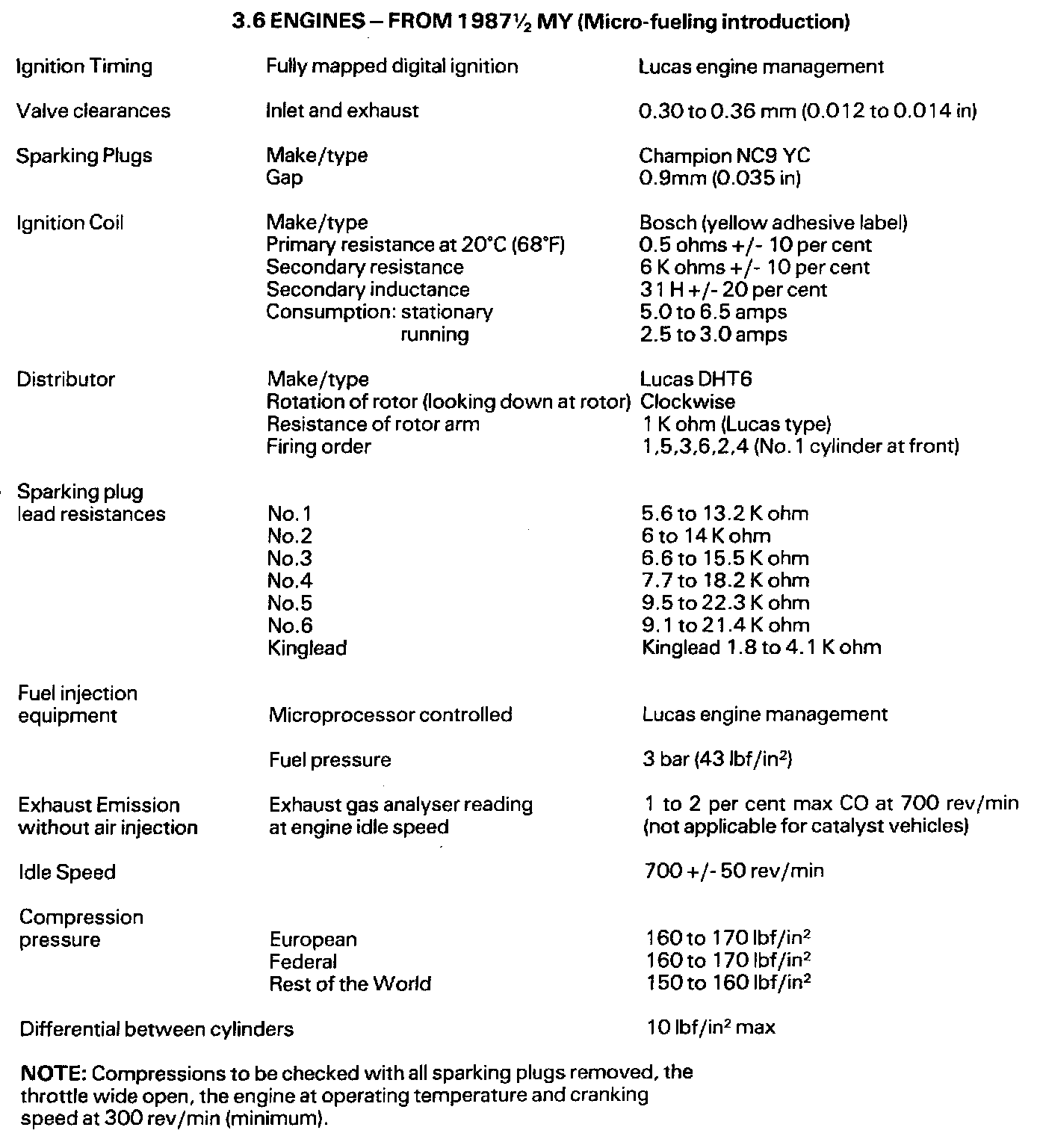

Engine Specifications From 1987 1/2 Model Year:
