Circuit Protection Devices
CIRCUIT PROTECTION DEVICES

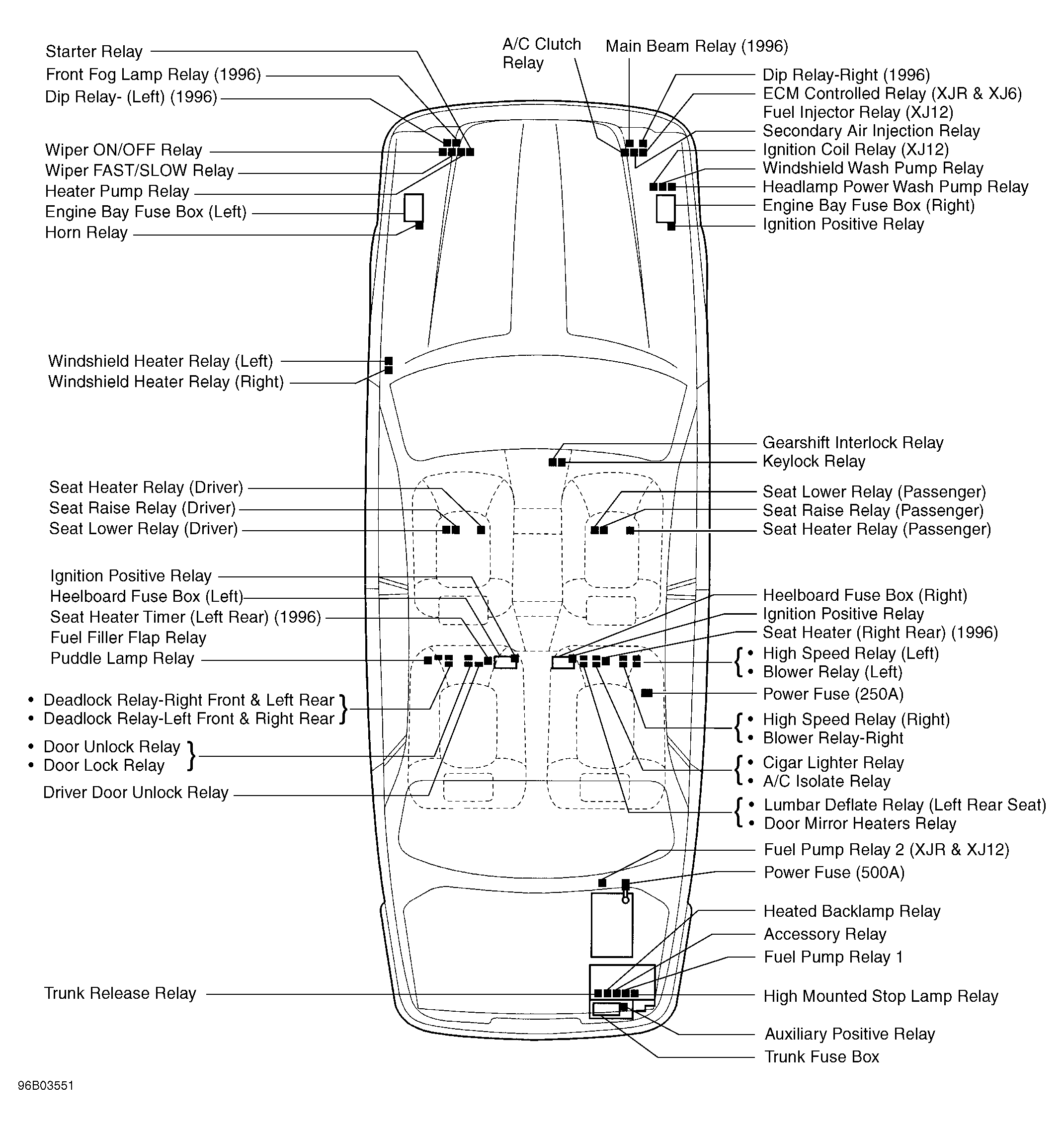

| Component | Component Location |
|---|---|
| Engine Bay Fuse Box (Left) | In engine compartment, on left front inner wheelwell. See Figure . |
| Engine Bay Fuse Box (Right) | In engine compartment, on right front inner wheelwell. See Figure . |
| Heelboard Fuse Box (Left) | On left side of heelboard. See Figure . |
| Heelboard Fuse Box (Right) | On right side of heelboard. See Figure . |
| Power Fuse (250A) | Under front right side of right rear seat. See Figure . |
| Power Fuse (500A) | On rear of battery. See Figure . |
| Trunk Fuse Box | On right rear side of luggage compartment. See Figure . |
