Service Point Locations

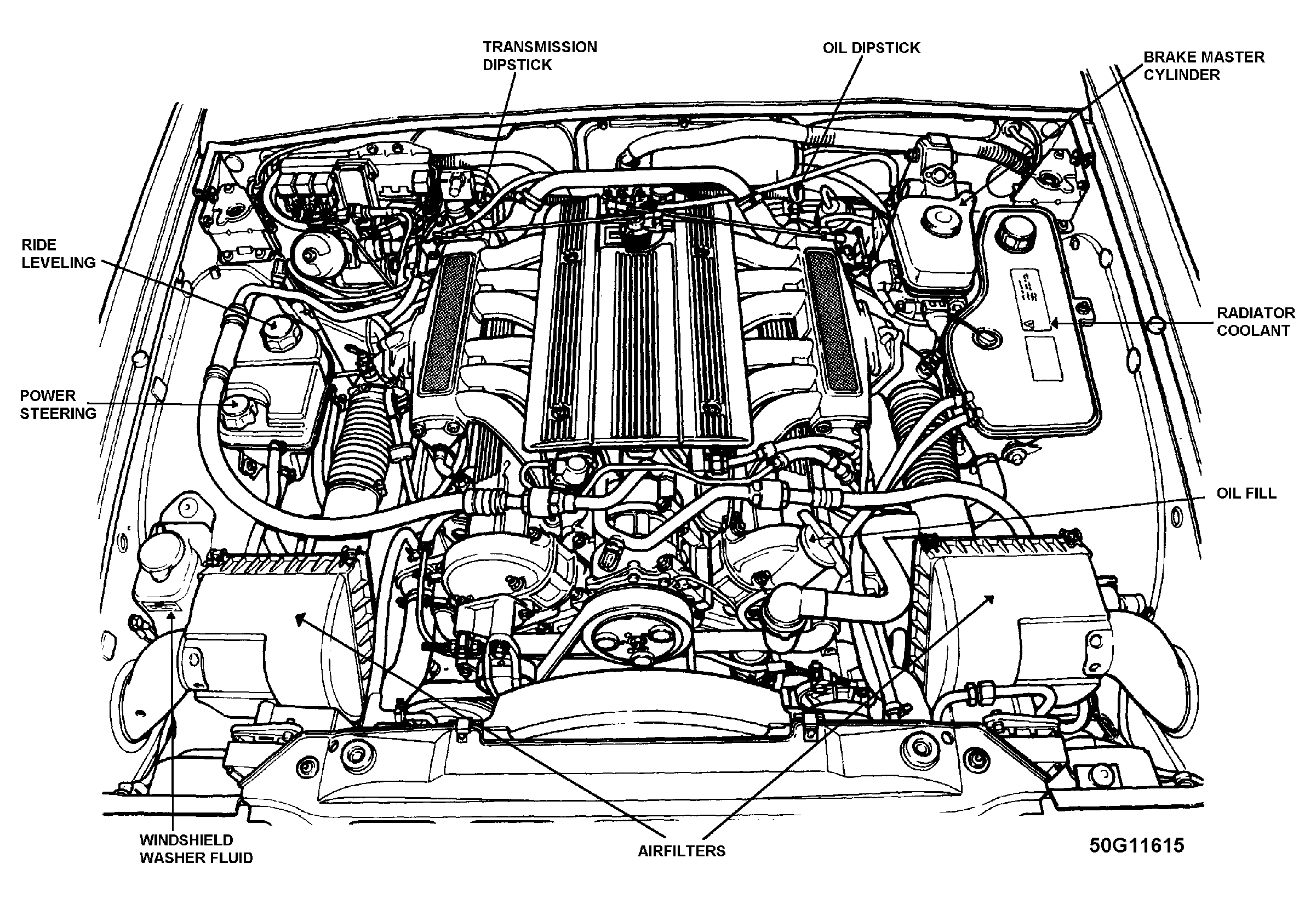

Fig 1: Engine Service Point Locations
G50G11615Courtesy of JAGUAR CARS, INC.

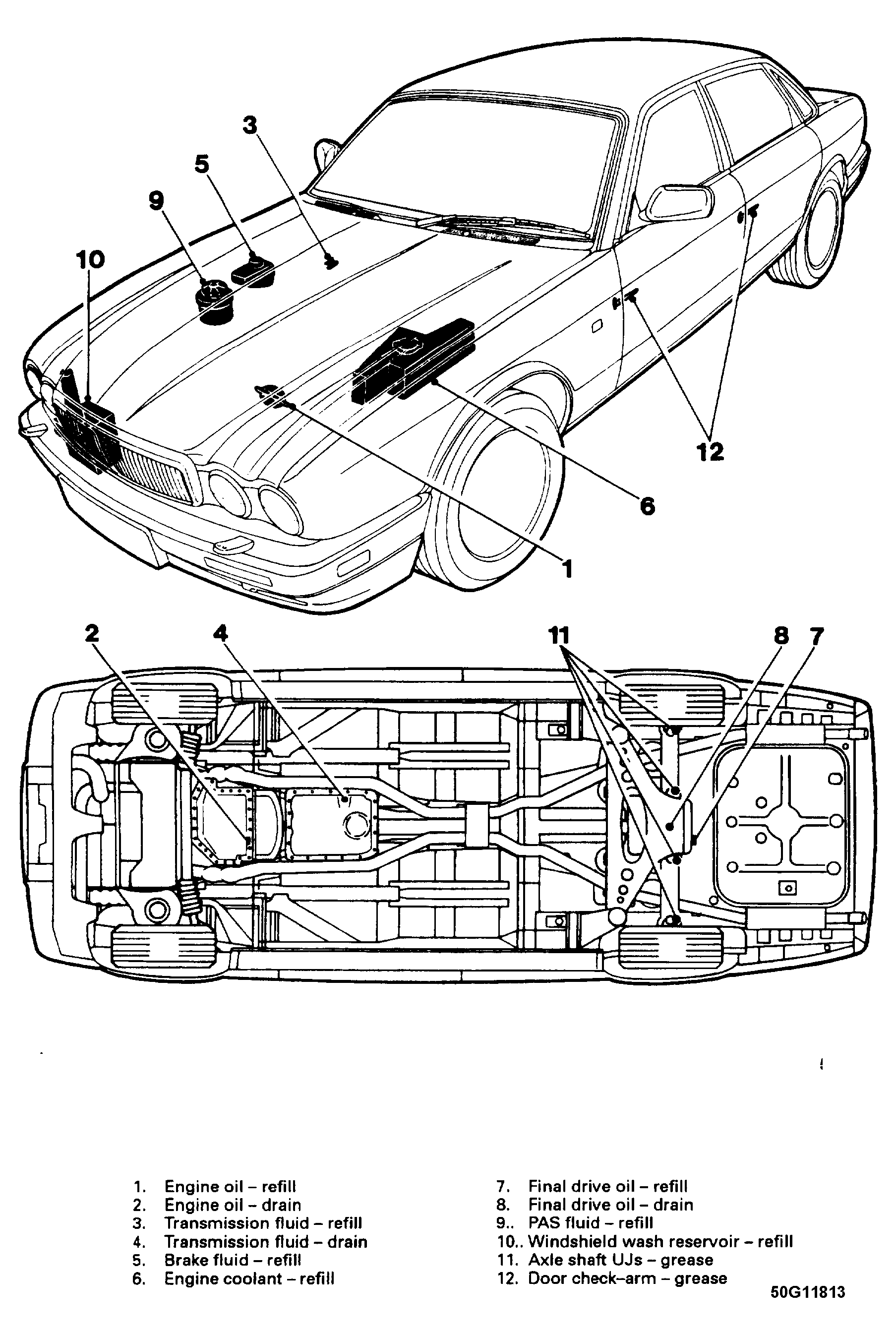

Fig 2: Fluid & Lubrication Service Points
G50G11813Courtesy of JAGUAR CARS, INC.
