F6: Check For O2 Sensor Failure

  1. With the conditions held as F5, suddenly accelerate to approximately 2500 rpm

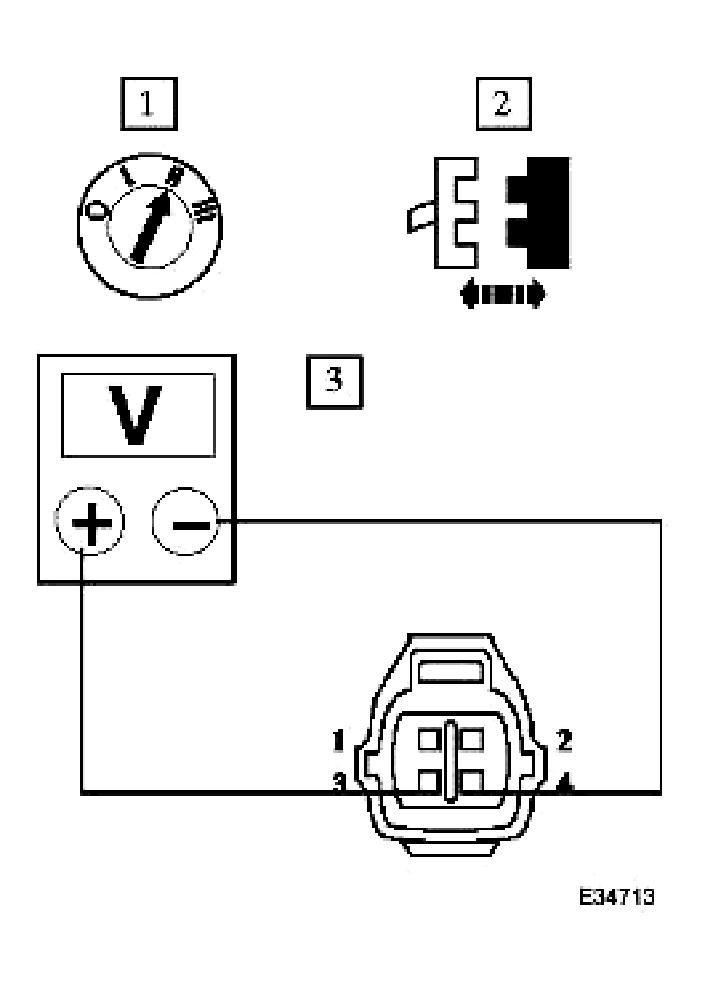

    Fig 1: Checking For O2 Sensor Failure (With Conditions Held as F5)
    G04355514Courtesy of JAGUAR CARS, INC.
    • Has the voltage risen to between 600mV and 1 volt?

    Yes  : GO to F7

    No  : Renew O2 sensor, reconnect plug(s)

    GO to F8
