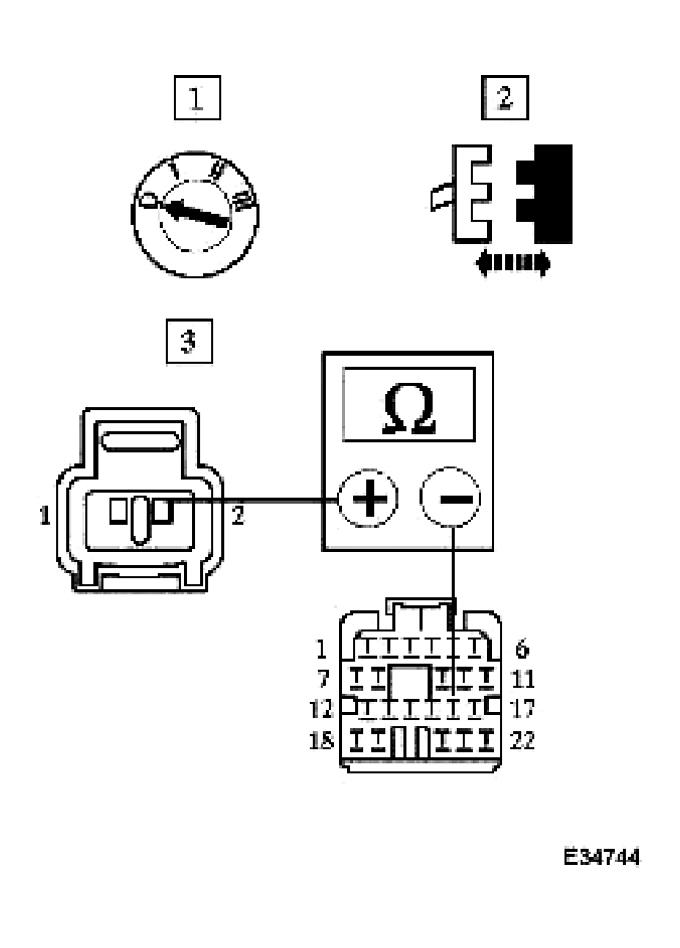

With EM012 and EM024 disconnected, measure the resistance between EM012/016 and EM024/002
Courtesy of JAGUAR CARS, INC.
- Is the resistance < 0.5OHM
Yes
: GO to H9
No
: Inspect connectors EM012, and EM024 for corrosion, damaged / pushed back pins or repair the harness; reconnect plug(s)
GO to H11
