Circuit Diagram, O2 Sensors / ECM

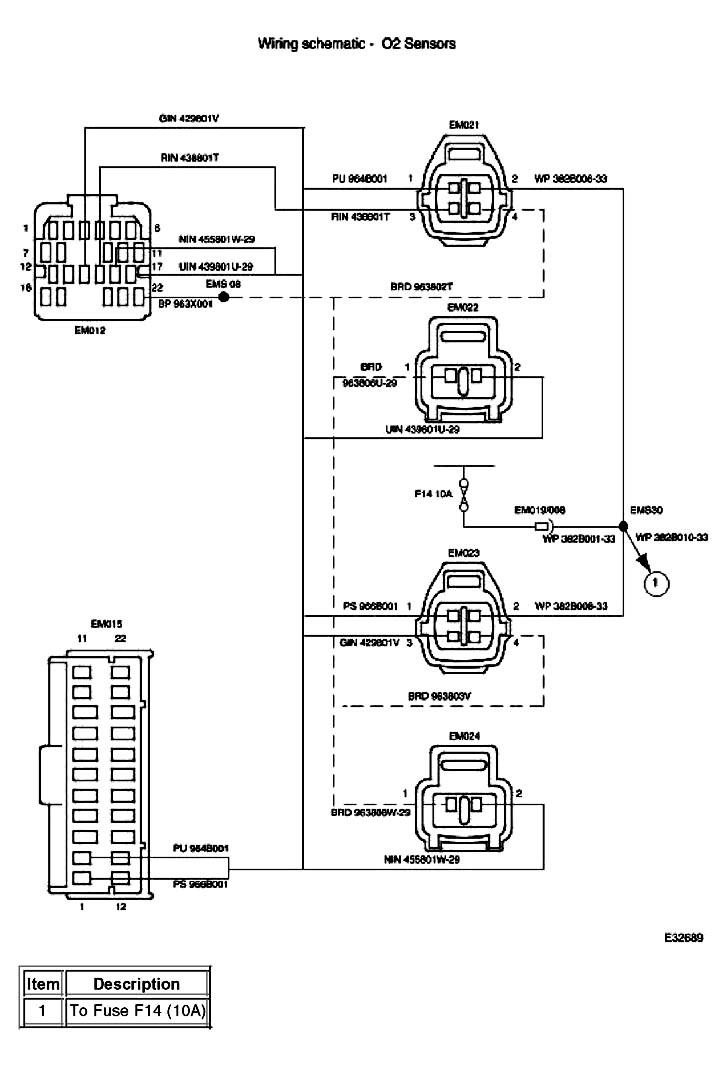

Fig 1: O2 Sensors/ECM - Circuit Diagram

G04355431

Courtesy of JAGUAR CARS, INC.
