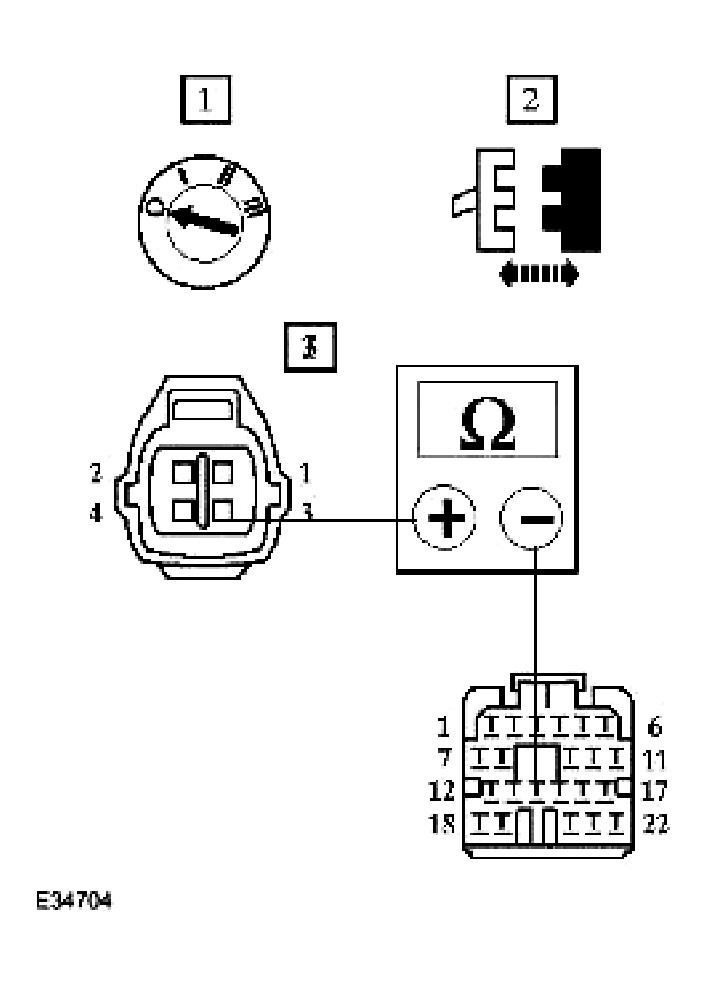

With EM012 and EM023 disconnected, measure the resistance between EM012/014 and EM023/003
Courtesy of JAGUAR CARS, INC.
- Is the resistance < 0.5OHM?
Yes
: GO to F14
No
: Inspect connectors EM012, and EM023 for corrosion, damaged / pushed back pins or repair the harness, reconnect plug(s)
GO to F19
