Description & Operation: Notes

The module communications network consists of 3 multiplex systems. The network provides the ability for module-to-module communication by sharing inputs and outputs instead of each component having an input and output wired directly to each module. See Fig 1 and Fig 2 .

A network BUS consists of a pair of twisted wires, one positive (+) and one negative (-) circuit, to transfer information between each module.

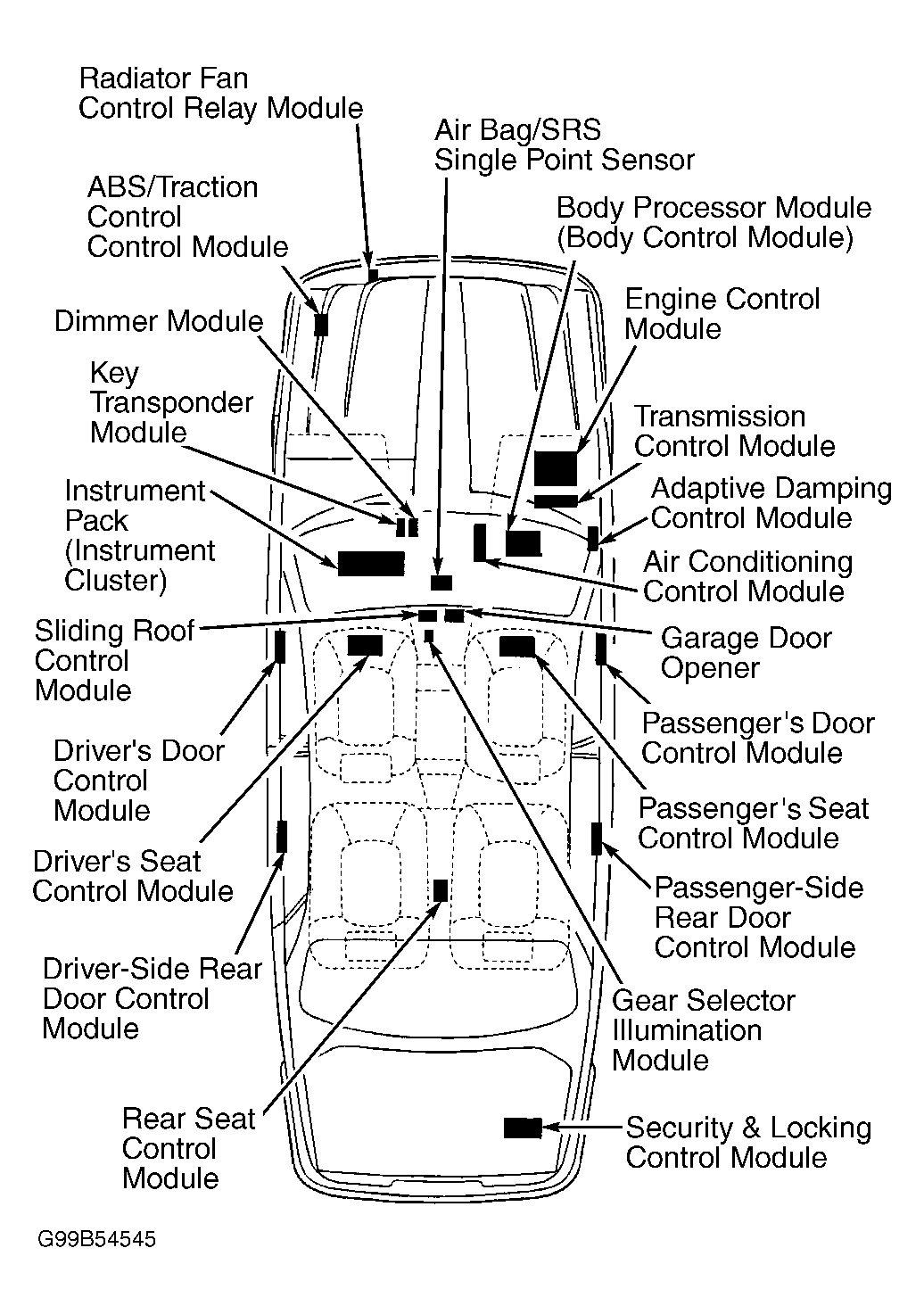

Fig 1: Locating Control Modules (XJR & XJ8)

Courtesy of JAGUAR CARS, INC.

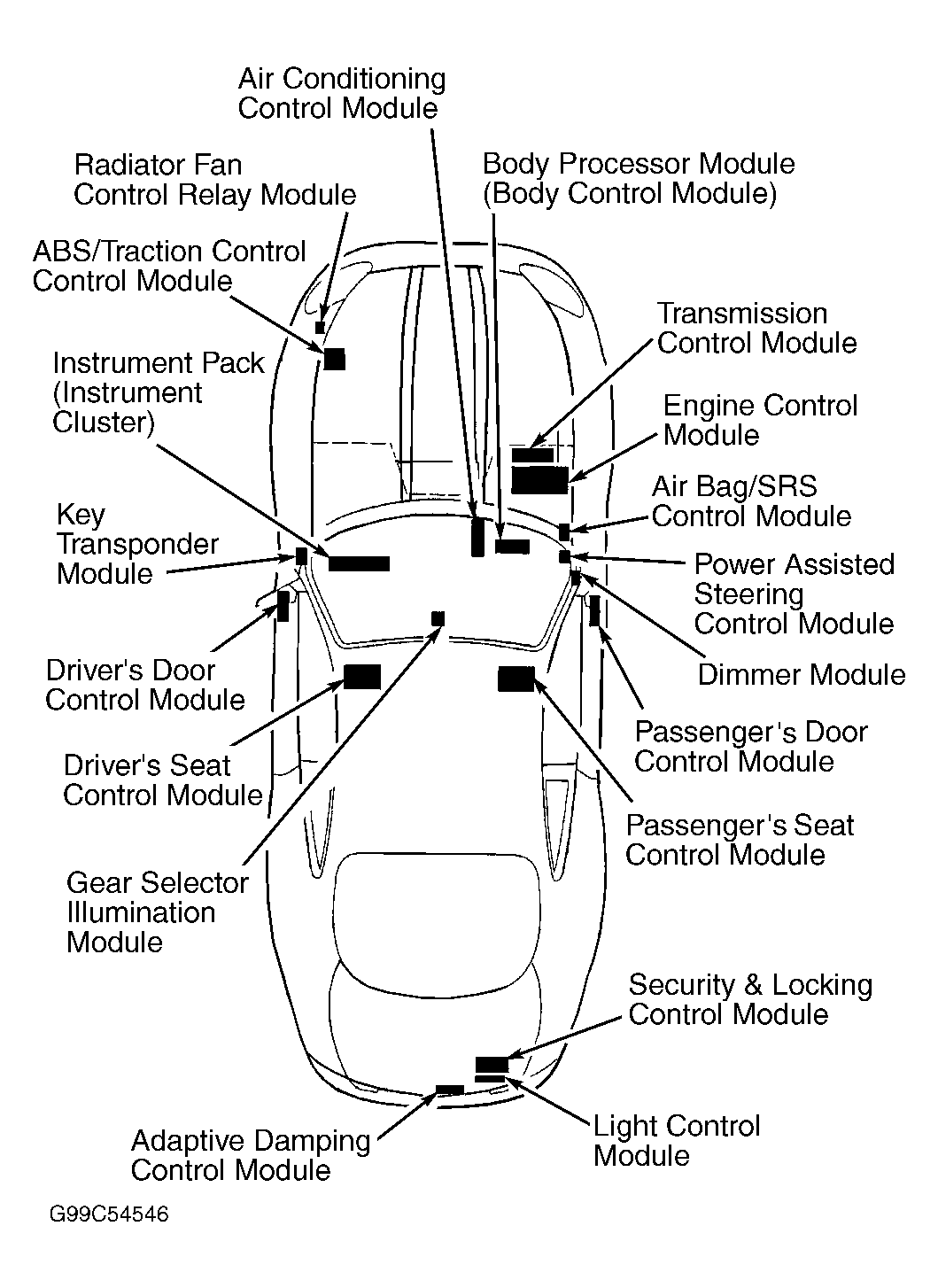

Fig 2: Locating Control Modules (XK8)

Courtesy of JAGUAR CARS, INC.
