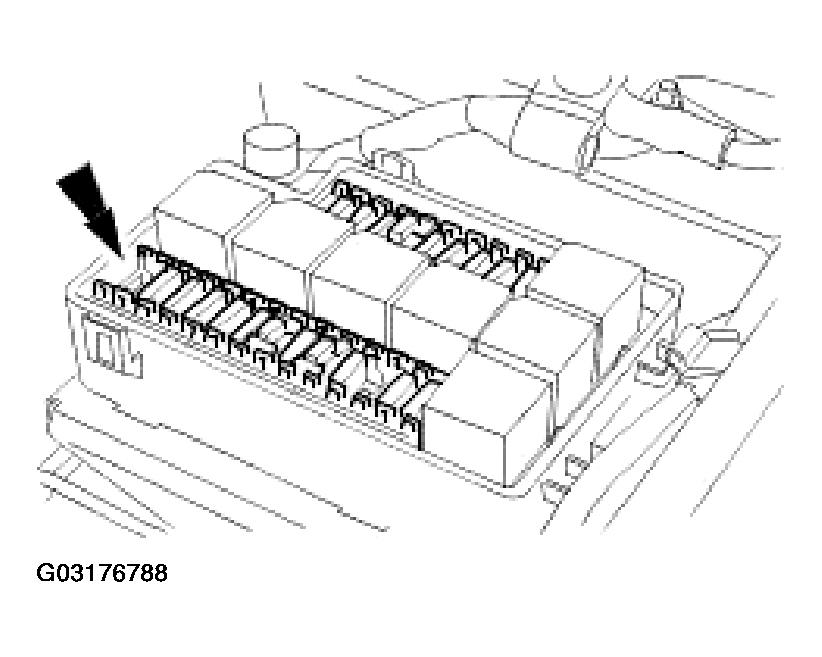

Engine Compartment Fuse Box
WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2003 Jaguar XJR, 2003 Jaguar XJ8, 2003 Jaguar XJ, 2002 Jaguar XJR, and 2002 Jaguar XJ8. However, it is still accessible from the selected car via links, so may be relevant.
ENGINE COMPARTMENT FUSE BOX SPECIFICATIONS
| Fuse No | Rating (amps) | Circuit |
|---|---|---|
| 1 | 10 | Transmission control module. |
| 2 | 5 | Screen heaters relay, alternator regulator. |
| 3 | 10 | Security sounder, headlamp levelling, ignition coils +Ve, fog lamp switches. |
| 4 | 5 | ABS control module. |
| 5 | 10 | Adaptive damping, starter relay coil, engine management control module and relays. |
| 6 | 10 | Right-hand low beam headlamp. |
| 7 | 30 | Power wash pump. |
| 8 | 10 | Left-hand low beam headlamp. |
| 9 | 10 | Security sounder. |
| 10 | - | Not used. |
| 11 | 10 | Right-hand horn. |
| 12 | 30 | Radiator cooling fans series/right-hand fast. |
| 13 | 10 | Left-hand horn |
| 14 | 30 | Cooling fans left-hand fast. |
| 15 | 10 | Air conditioning coolant pump. |
| 16 | 30 | ABS pump control. |
| 17 | 15 | Front fog lamps. |
| 18 | 30 | ABS pump motor. |
| 19 | 10 | Right-hand high beam headlamp. |
| 20 | - | Not used. |
| 21 | 10 | Left-hand high beam headlamp. |
| 22 | 30 | Wiper motor. |
