Module Controlled Functions - Description & Operation: Notes

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2008 Jaguar S-Type, 2007 Jaguar S-Type, 2006 Jaguar S-Type, 2005 Jaguar S-Type, and 2004 Jaguar S-Type. However, it is still accessible from the selected car via links, so may be relevant.

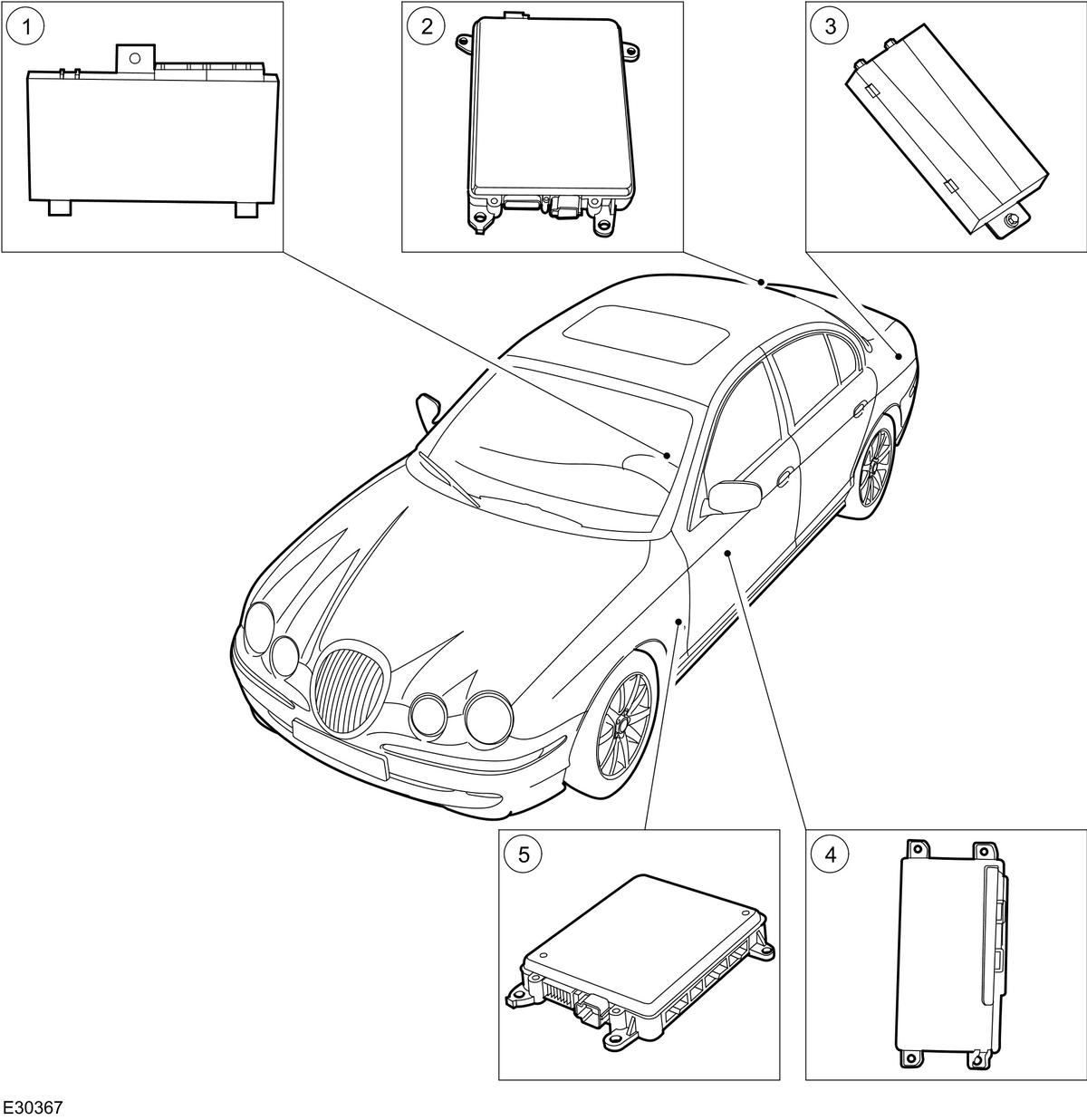

Fig 1: Multifunction Electronic Modules

Courtesy of JAGUAR CARS, INC.

Item Number	Description
1	Driver seat module (DSM)
2	Rear electronics module (REM)
3	Multifunction voice activated module
4	Driver door module (DDM)
5	Front electronic module (FEM)
