Engine Speed Input Circuit

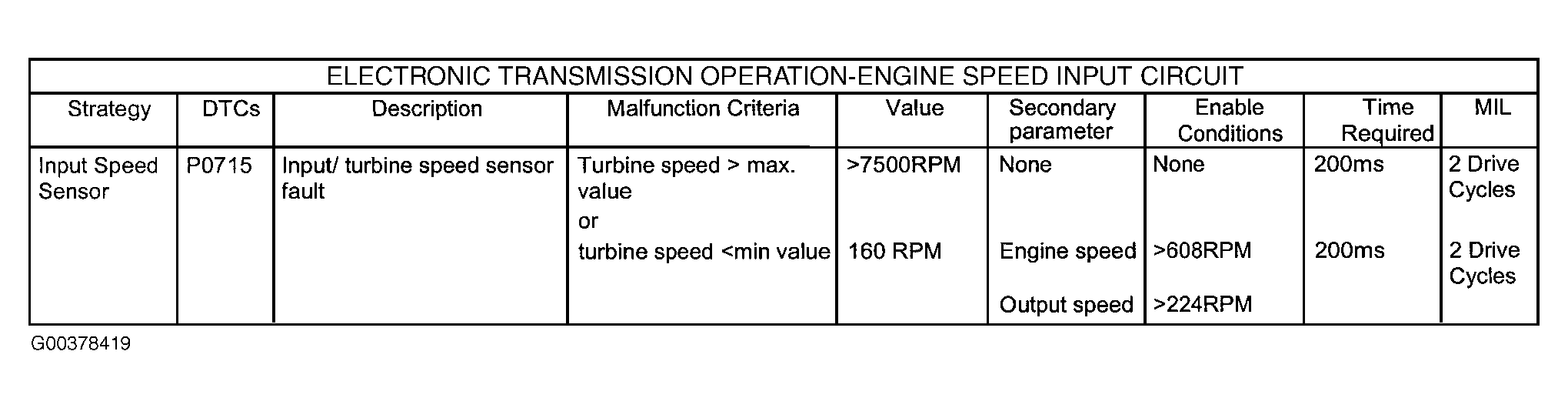

Fig 1: Engine Speed Input Circuit Table
Courtesy of JAGUAR CARS, INC.
Courtesy of JAGUAR CARS, INC.
