Audio System - Description & Operation: Notes
WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2008 Jaguar S-Type, 2007 Jaguar S-Type, 2006 Jaguar S-Type, 2005 Jaguar S-Type, and 2004 Jaguar S-Type. However, it is still accessible from the selected car via links, so may be relevant.
| Item Number | Description |
|---|---|
| 1 | Dolby noise reduction button |
| 2 | Repeat CD button |
| 3 | Audio system display |
| 4 | Seek a stored number from the phones memory |
| 5 | Radio station pre-set buttons |
| 6 | Seek a stored number from the phones memory |
| 7 | CD track mix button |
| 8 | Priority program type button |
| 9 | Traffic announcement button |
| 10 | Auto memory button |
| 11 | Select CD changer |
| 12 | Cassette play and side change button |
| 13 | Audio Source - AM/FM radio |
| 14 | Cassette eject button |
| 15 | CD seek forward, cassette fast forward, radio seek forward button |
| 16 | CD seek back, cassette fast rewind, radio seek back button |
| 17 | Mode button (volume/bass/treble/balance/fade) |
| 18 | ON/OFF push (rotary volume/bass/treble/balance/fade) knob |
| 19 | Phone mode - send/end button |
| 20 | Phone mode select button |
| 21 | Memory recall button |
| 22 | Cancel button |

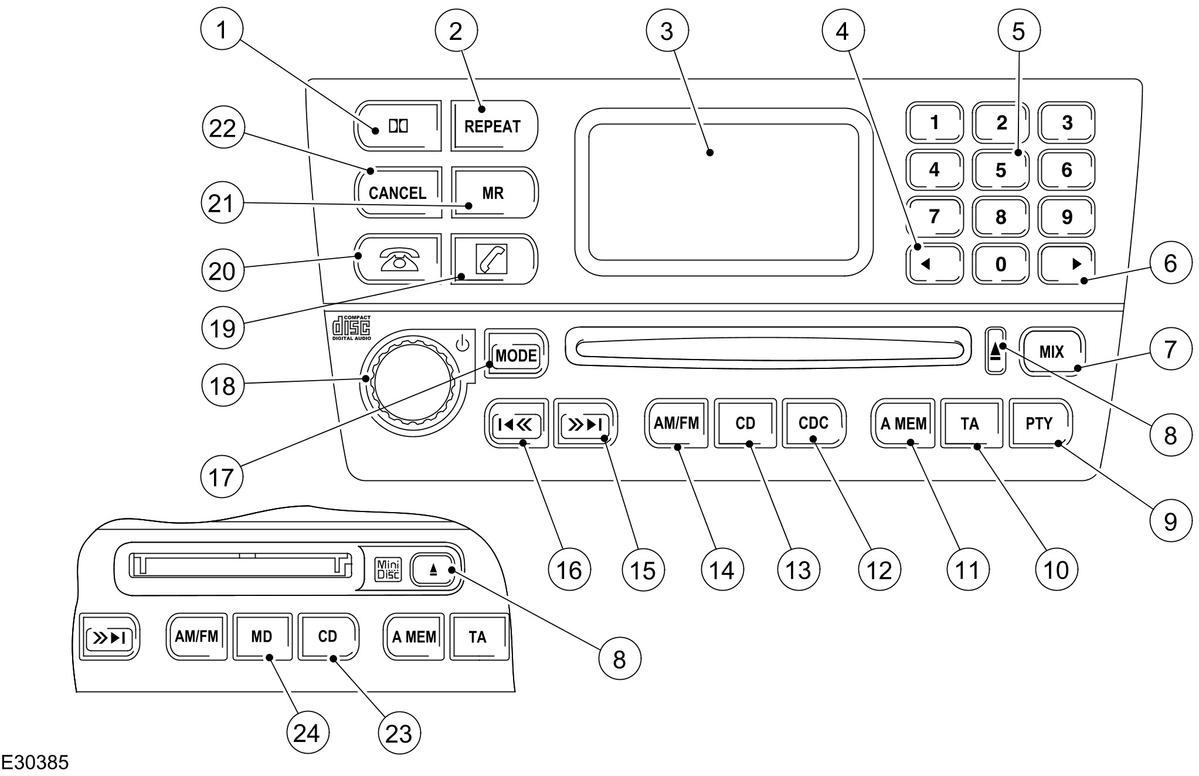

| Item Number | Description |
|---|---|
| 1 | Mutes audio |
| 2 | Repeat CD button |
| 3 | Audio system display |
| 4 | Seek a stored number from the phones memory |
| 5 | Radio station pre-set buttons |
| 6 | Seek a stored number from the phones memory |
| 7 | Mix CDs or CD/MD tracks button |
| 8 | Eject CD or MD |
| 9 | Priority program type button |
| 10 | Traffic announcement button |
| 11 | Auto memory button |
| 12 | Select CD changer |
| 13 | Select compact disc when in other audio mode, or CD pause |
| 14 | Audio Source - AM/FM radio |
| 15 | CD seek forward, cassette fast forward, radio seek forward button |
| 16 | CD seek back, cassette fast rewind, radio seek back button |
| 17 | Mode button (volume/bass/treble/balance/fade) |
| 18 | ON/OFF push (rotary volume/bass/treble/balance/fade) knob |
| 19 | Phone mode - send/end button |
| 20 | Phone mode select button |
| 21 | Memory recall button |
| 22 | Cancel button |
| 23 | Select CD changer |
| 24 | Select mini disc play when in other audio mode or MD pause |

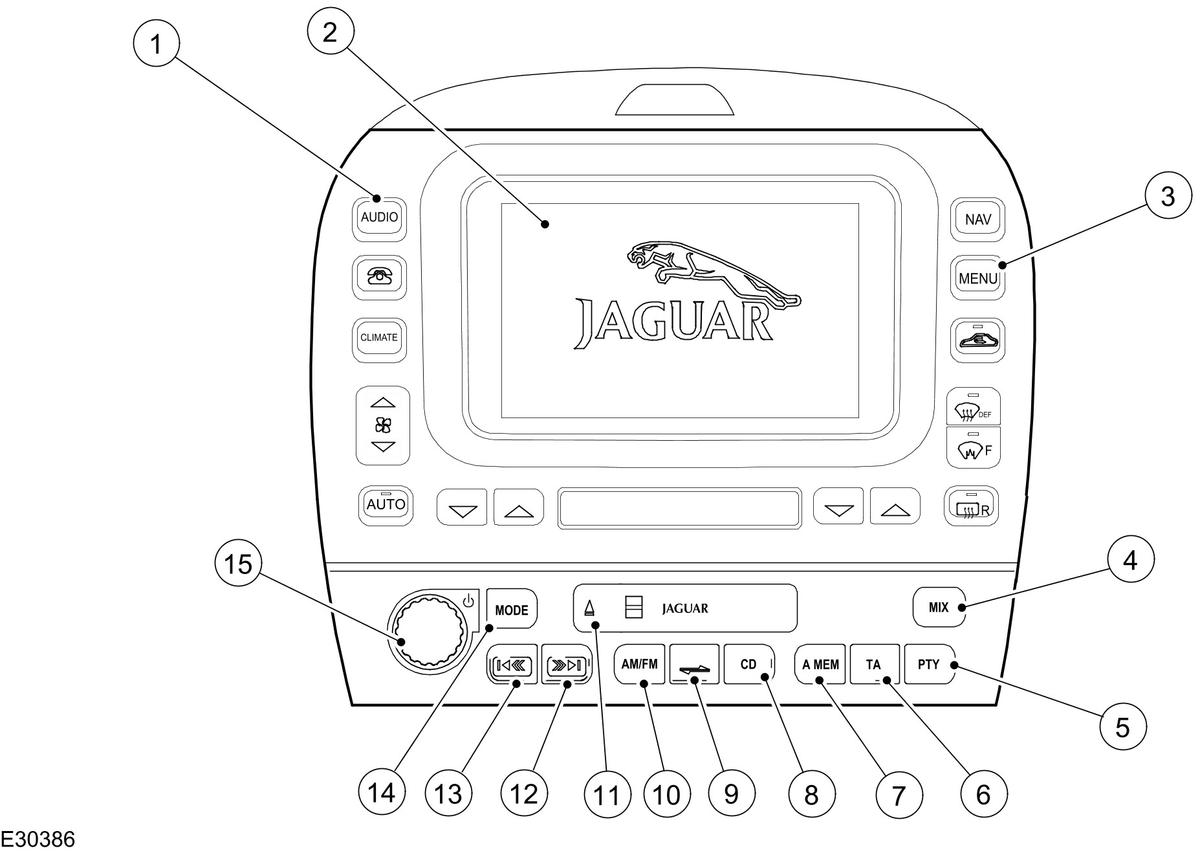

| Item Number | Description |
|---|---|
| 1 | On/Off push for touch-screen controls |
| 2 | Touch-screen display |
| 3 | Press to access touch-screen options |
| 4 | CD track mix button |
| 5 | Priority program type button |
| 6 | Traffic announcement button |
| 7 | Auto memory button |
| 8 | Select CD changer |
| 9 | Cassette play and side change button |
| 10 | Audio Source - AM/FM radio |
| 11 | Cassette eject button |
| 12 | CD seek forward, cassette fast forward, radio seek forward button |
| 13 | CD seek back, cassette fast rewind, radio seek back button |
| 14 | Mode button (volume/bass/treble/balance/fade) |
| 15 | ON/OFF push (rotary volume/bass/treble/balance/fade) knob |

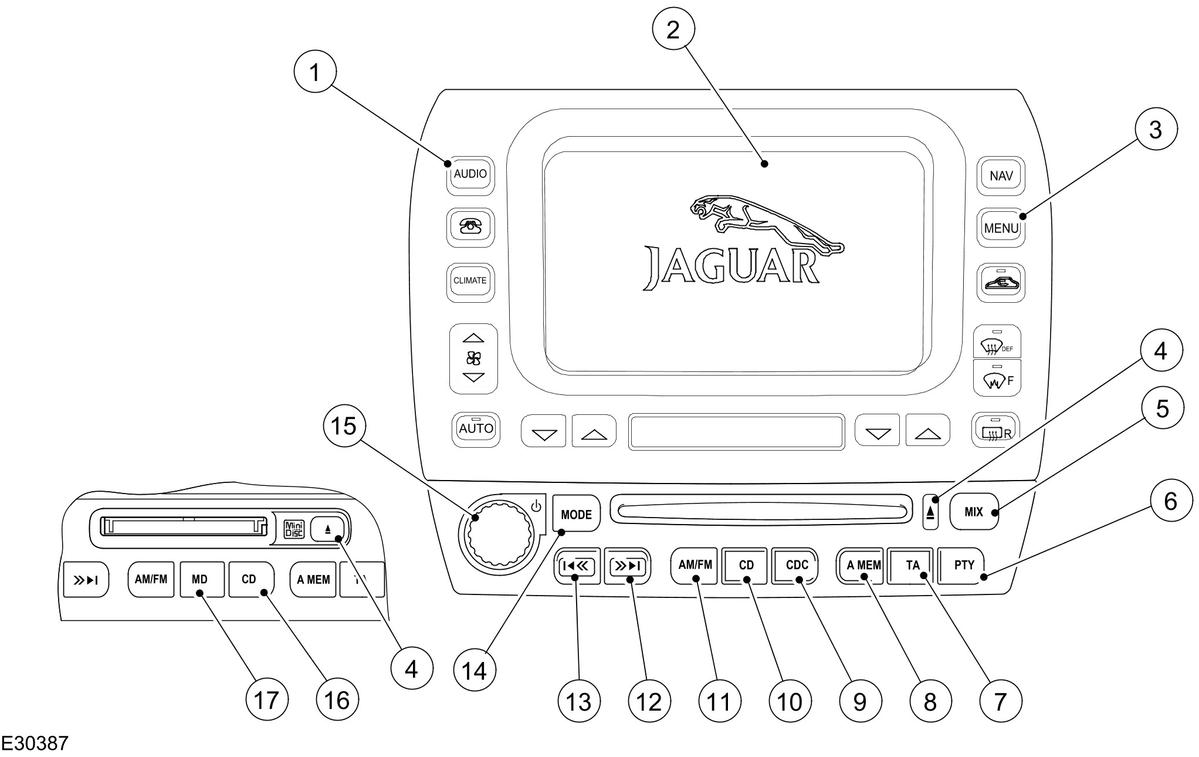

| Item Number | Description |
|---|---|
| 1 | On/Off push for touch-screen controls |
| 2 | Touch-screen display |
| 3 | Press to access touch-screen options |
| 4 | Eject CD or MD |
| 5 | Mix CDs or CD/MD tracks button |
| 6 | Priority program type button |
| 7 | Traffic announcement button |
| 8 | Auto memory button |
| 9 | Select CD changer |
| 10 | Select compact disc when in other audio mode, or CD pause |
| 11 | Audio Source - AM/FM radio |
| 12 | CD seek forward, cassette fast forward, radio seek forward button |
| 13 | CD seek back, cassette fast rewind, radio seek back button |
| 14 | Mode button (volume/bass/treble/balance/fade) |
| 15 | ON/OFF push (rotary volume/bass/treble/balance/fade) knob |
| 16 | Select CD changer |
| 17 | Select mini disc play when in other audio mode or MD pause |
NOTE:
Mini Disc (MD) and cassette audio systems are not fitted from 2008MY.
The choice of two entertainment systems is available; base or premium. The radio and single CD player or mini disc player and the AM/FM aerial are common to both. Both systems may be operated remotely by use of switches located on the steering wheel.
The premium system has the addition of different speakers, touch screen control and a CD autochanger. The CD autochanger is located in the luggage compartment.
Refer to the Sound System Handbook for setting-up procedures and use, after diagnostic or repair operations.
