Fault Monitoring Conditions

NOTE: It is recommended that the applicable WIRING DIAGRAMS be referenced when using the information contained in Fig 2 -Fig 10 .

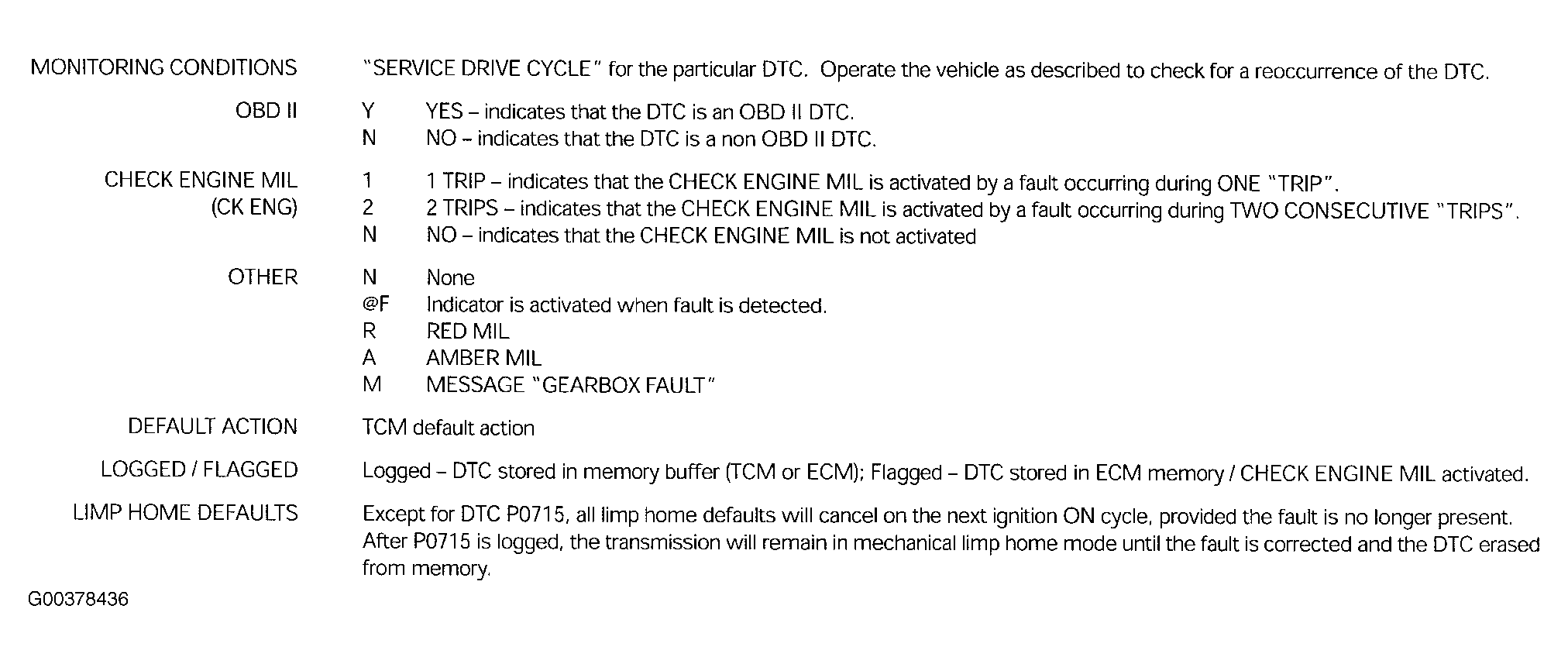

Fig 1: Definitions For Fault Monitoring Conditions (Definitions For Fig. 16 - Fig. 24)

Courtesy of JAGUAR CARS, INC.

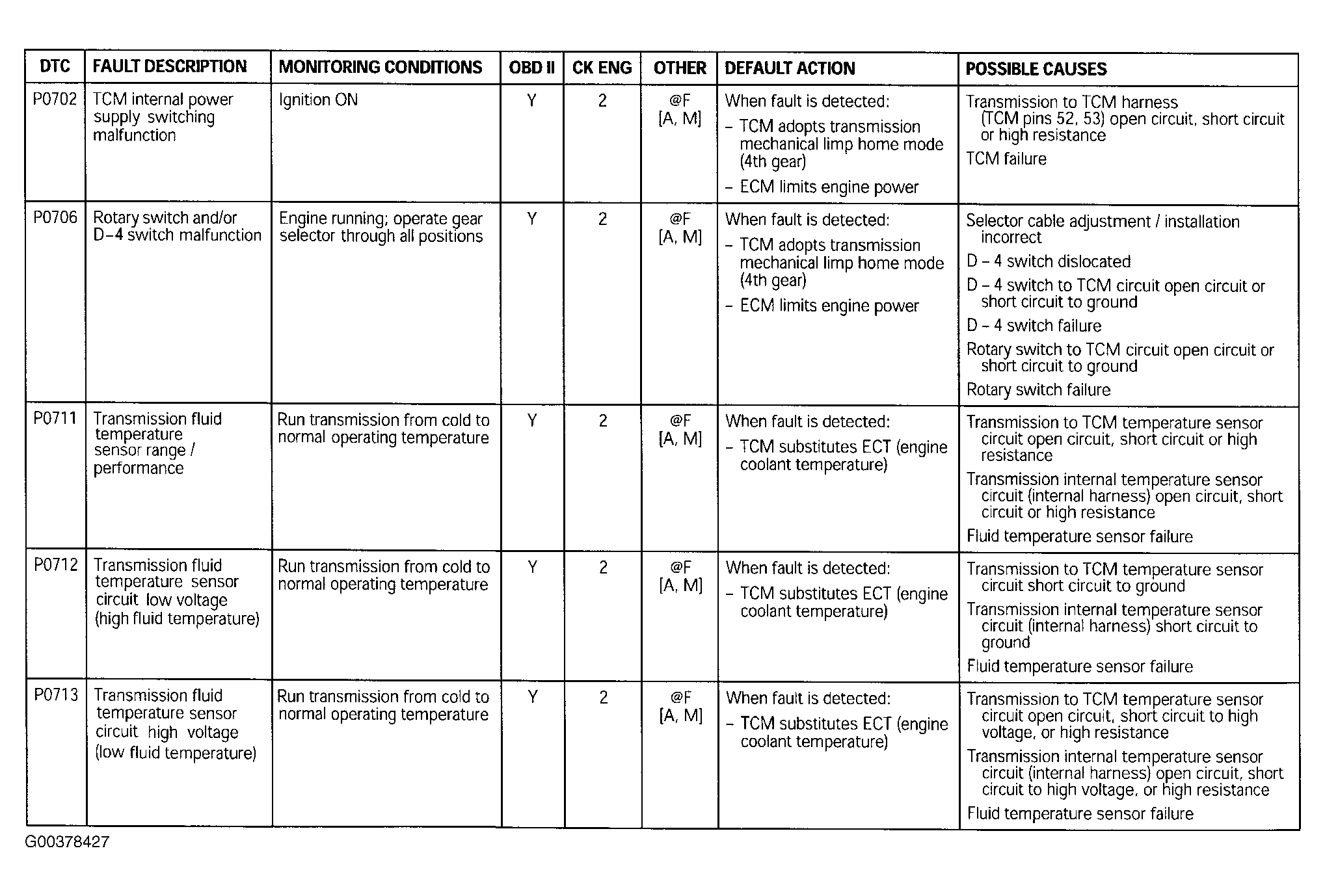

Fig 2: DTC P0702, P0706, P0711, P0712 & P0713 Fault Monitoring Conditions

Courtesy of JAGUAR CARS, INC.

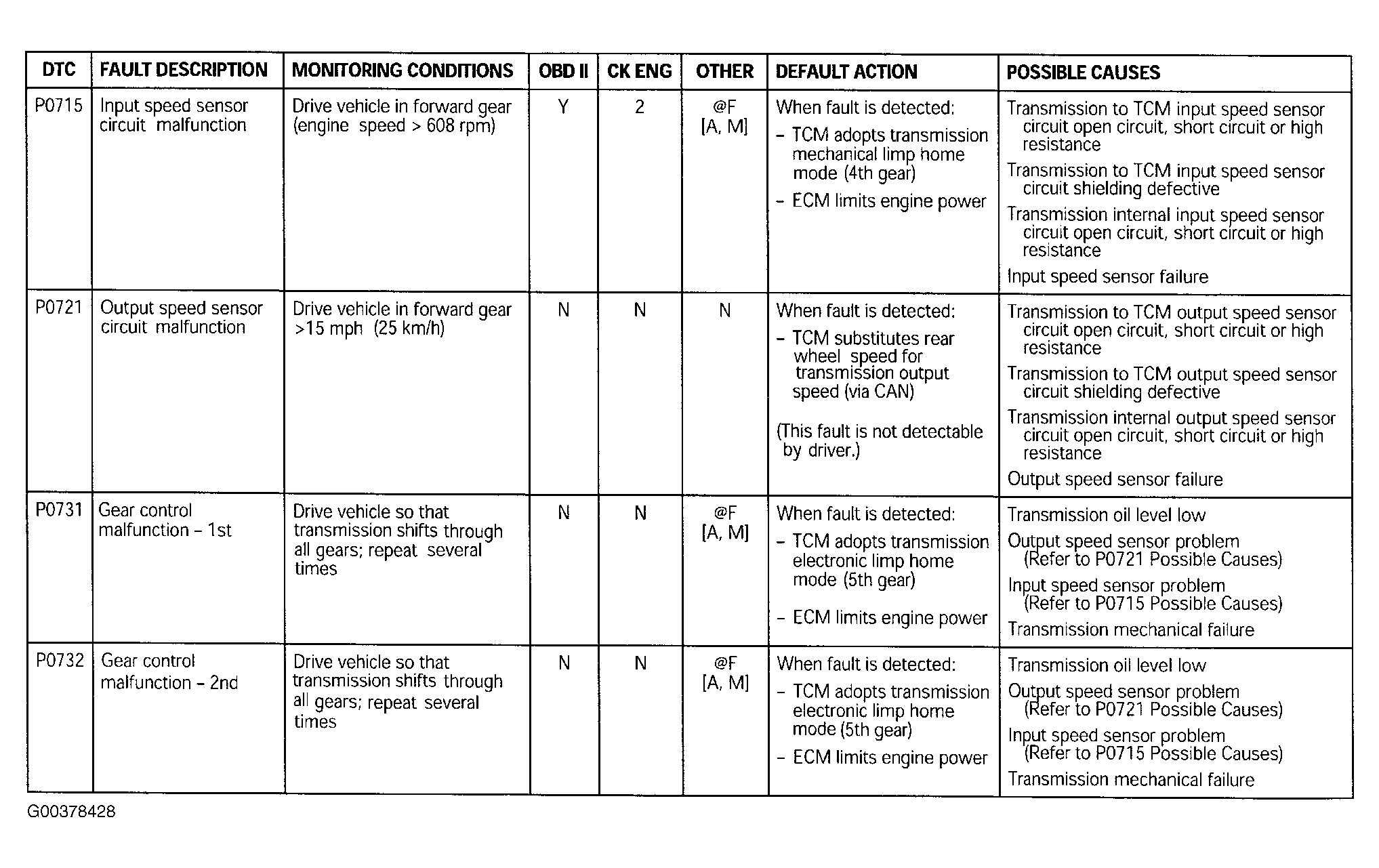

Fig 3: DTC P0715, P0721, P0731 & P0732 Fault Monitoring Conditions

Courtesy of JAGUAR CARS, INC.

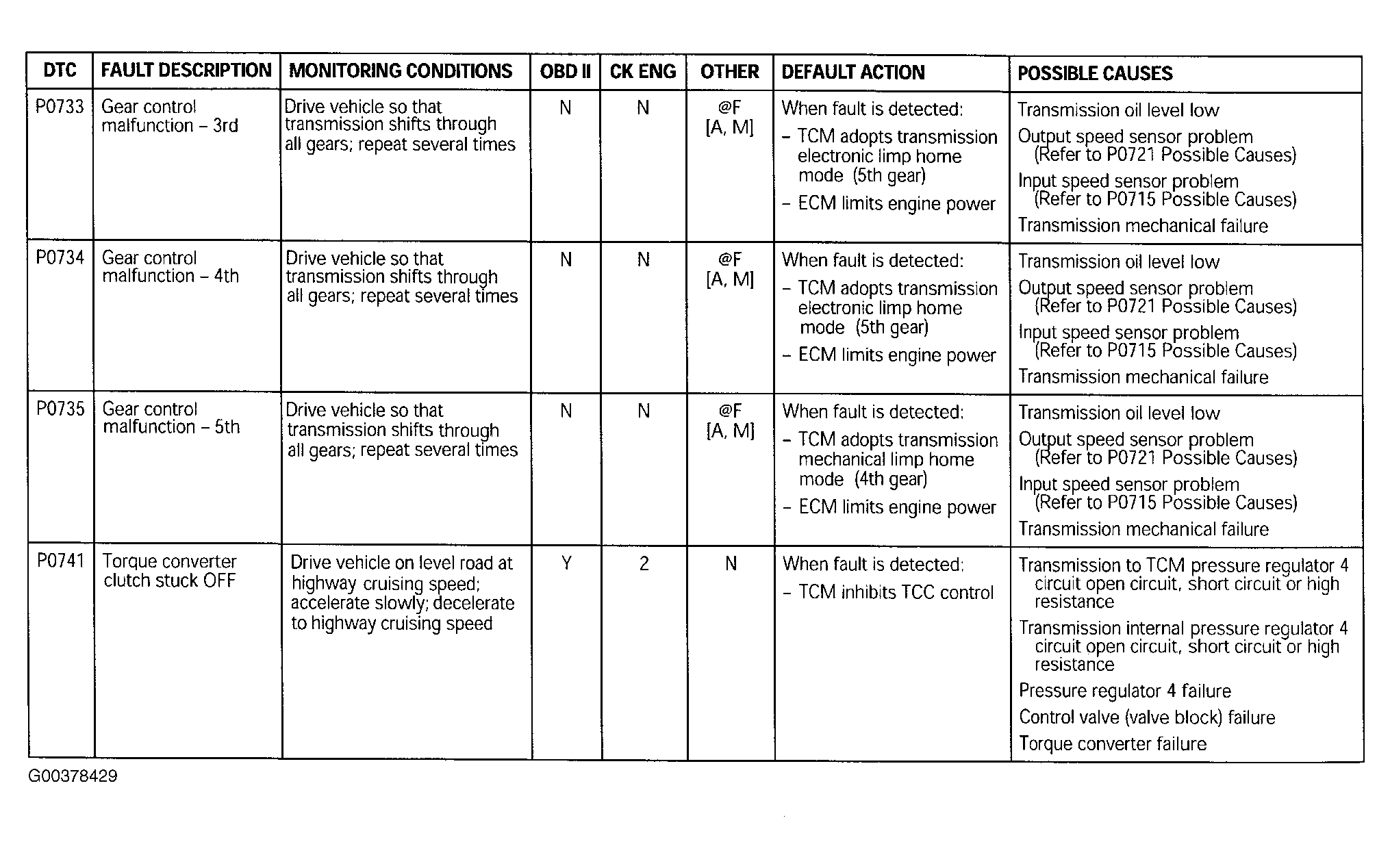

Fig 4: DTC P0733, P0734, P0735 & P0741 Fault Monitoring Conditions

Courtesy of JAGUAR CARS, INC.

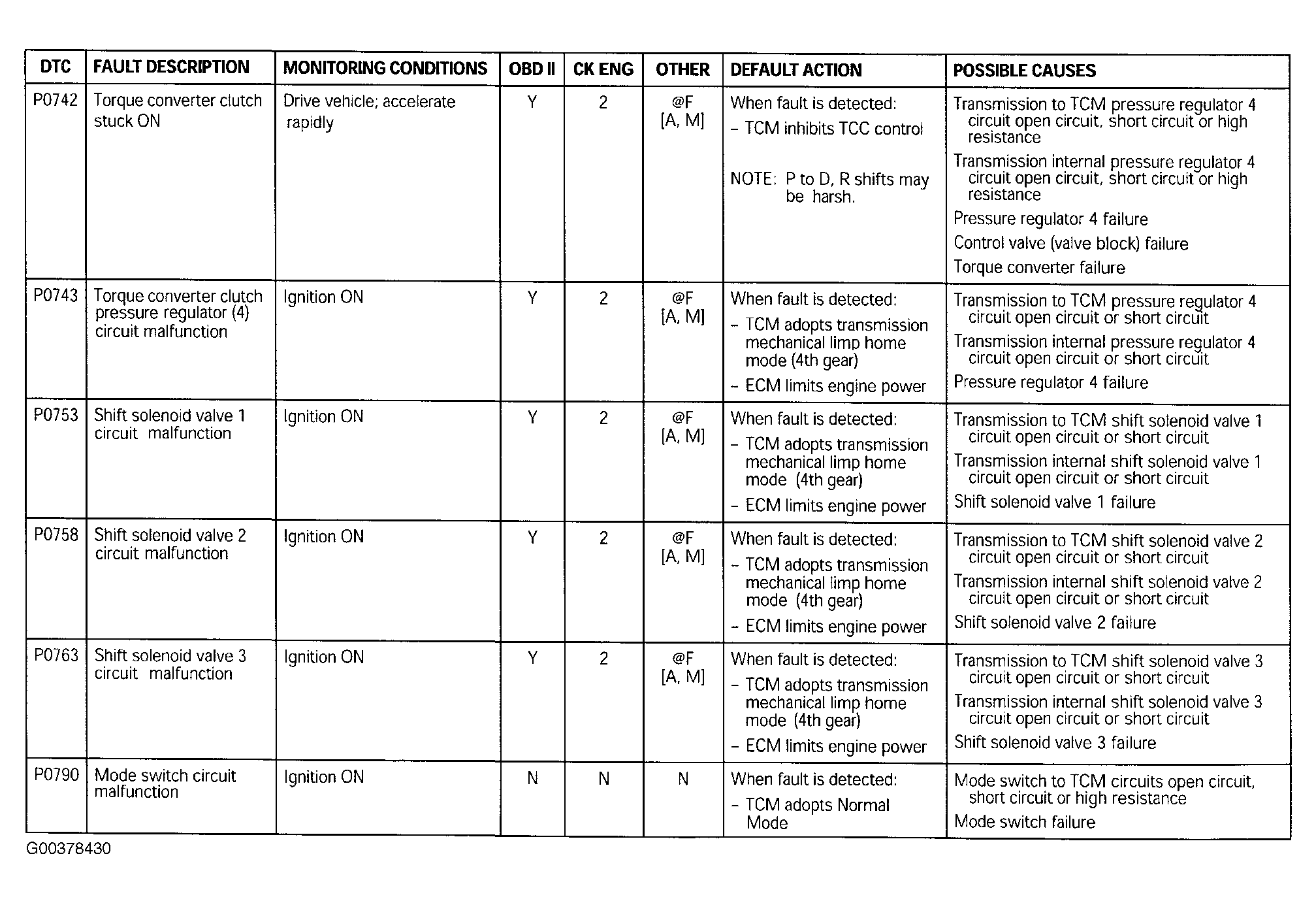

Fig 5: DTC P0742, P0743, P0753, P0758, P0763 & P0790 Fault Monitoring Conditions

Courtesy of JAGUAR CARS, INC.

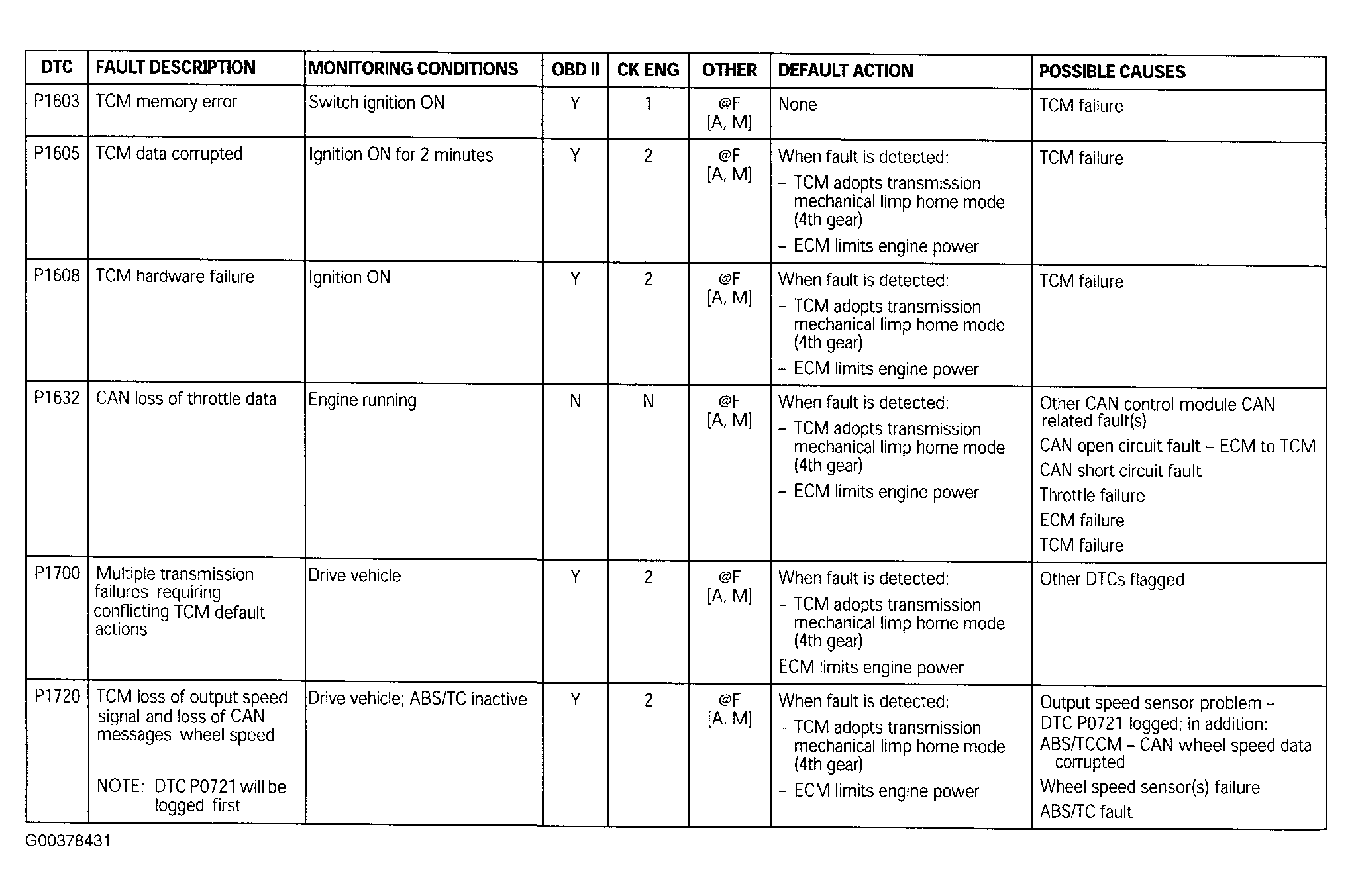

Fig 6: DTC P1603, P1608, P1632, P1700 & P1720 Fault Monitoring Conditions

Courtesy of JAGUAR CARS, INC.

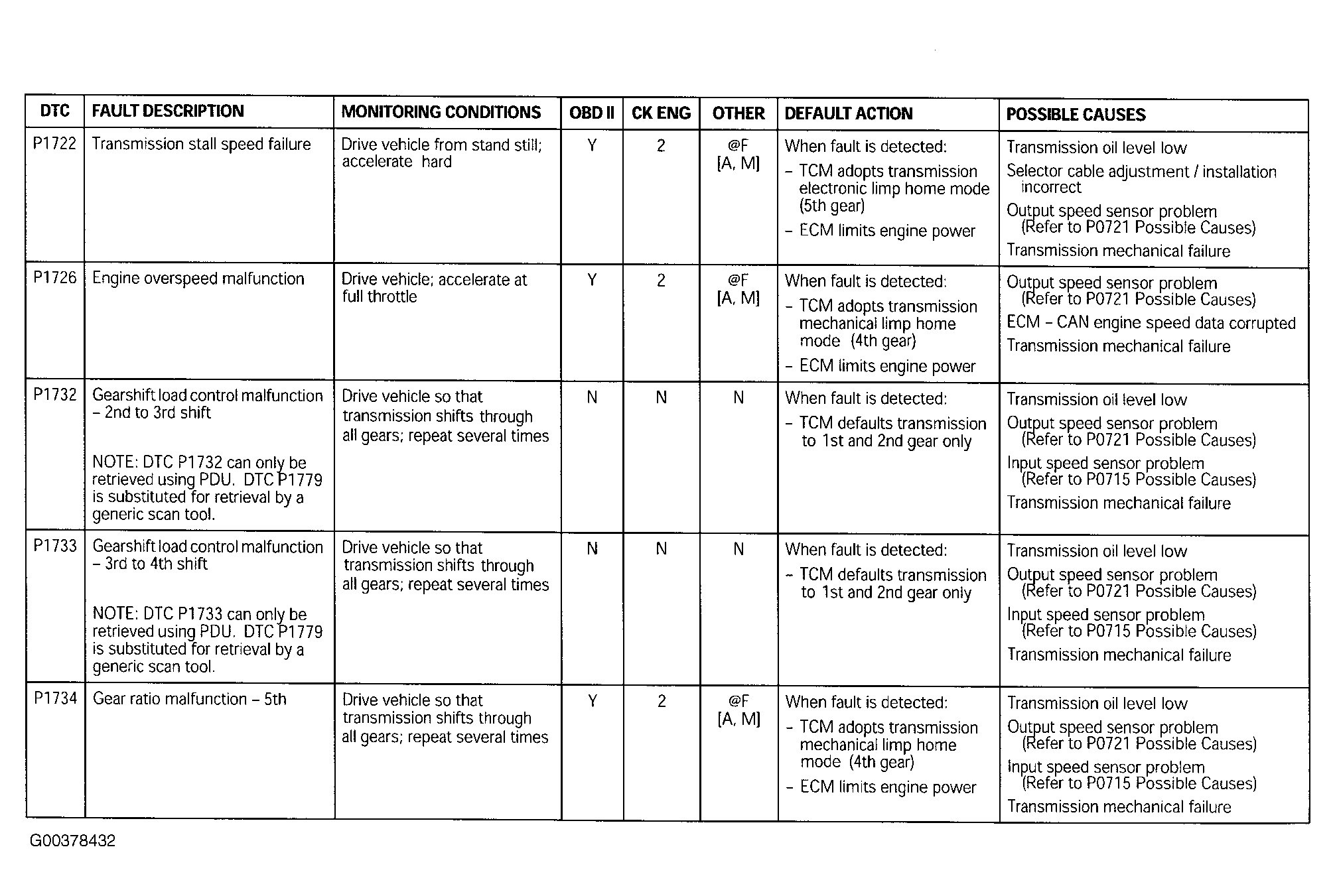

Fig 7: DTC P1722, P1726, P1732, P1733 &P1734 Fault Monitoring Conditions

Courtesy of JAGUAR CARS, INC.

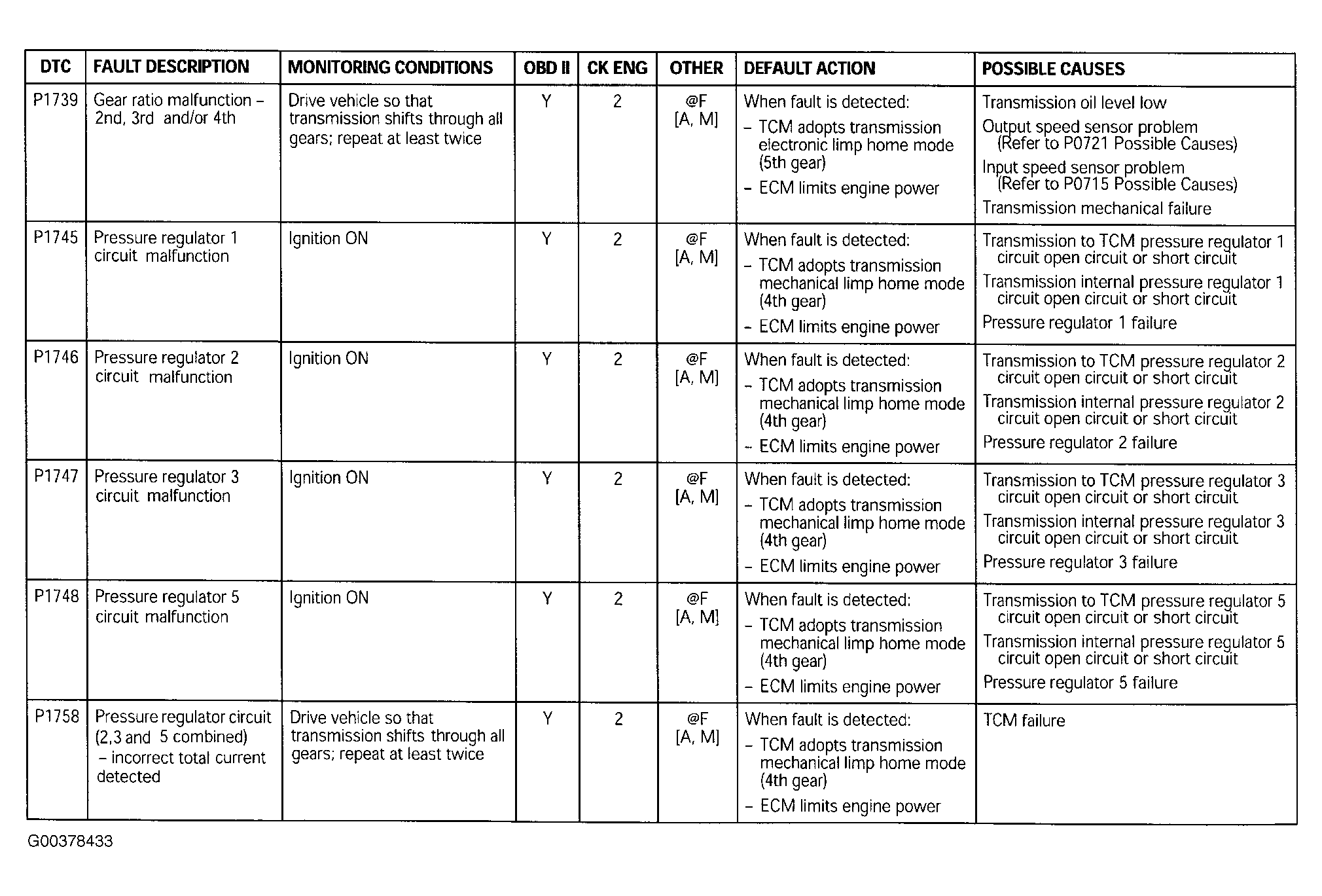

Fig 8: DTC P1739, P1745, P1746, P1747, P1748 & P1758 Fault Monitoring Conditions

Courtesy of JAGUAR CARS, INC.

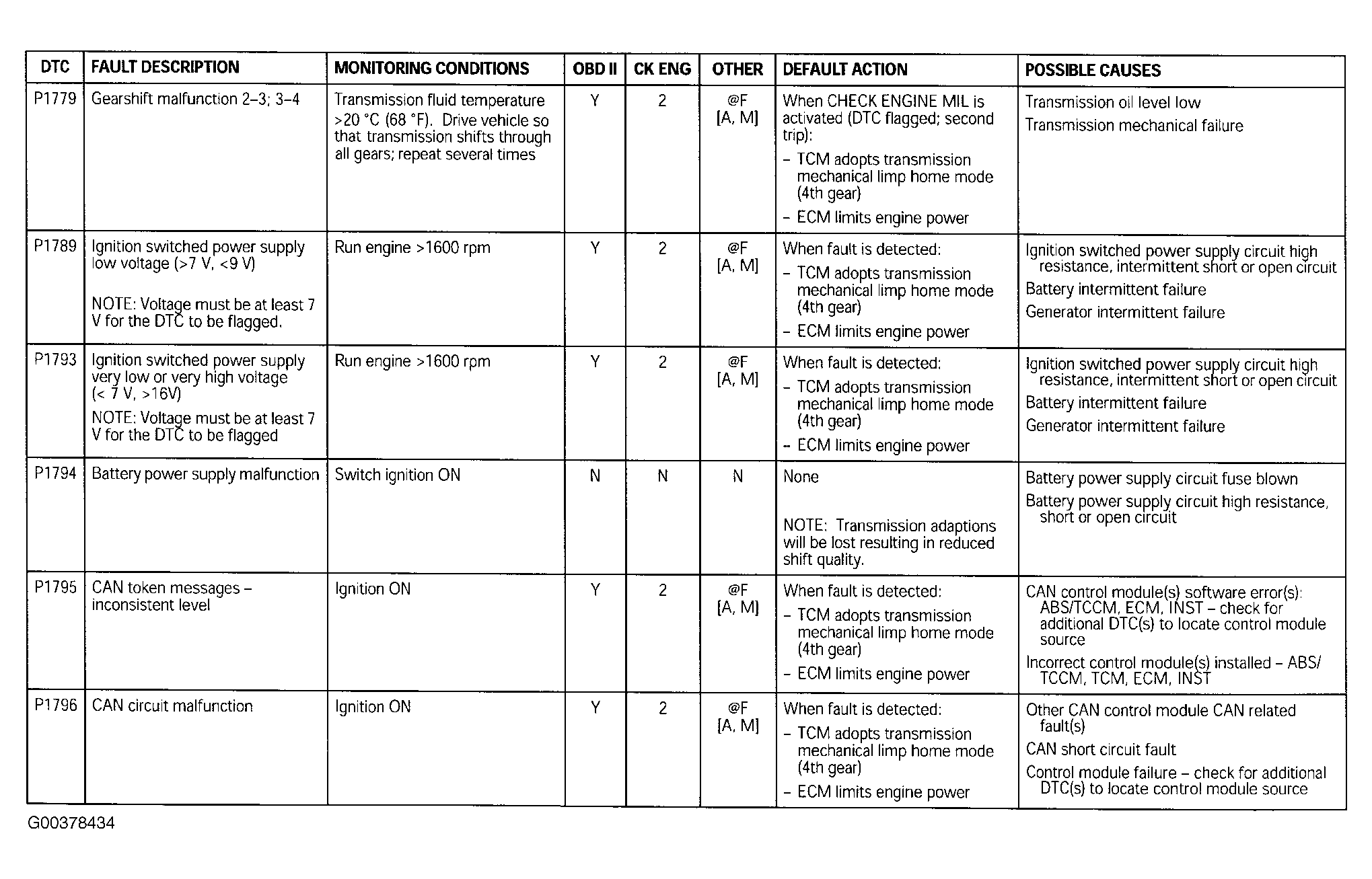

Fig 9: DTC P1779, P1789, P1793, P1794, P1795 & P1796 Fault Monitoring Conditions

Courtesy of JAGUAR CARS, INC.

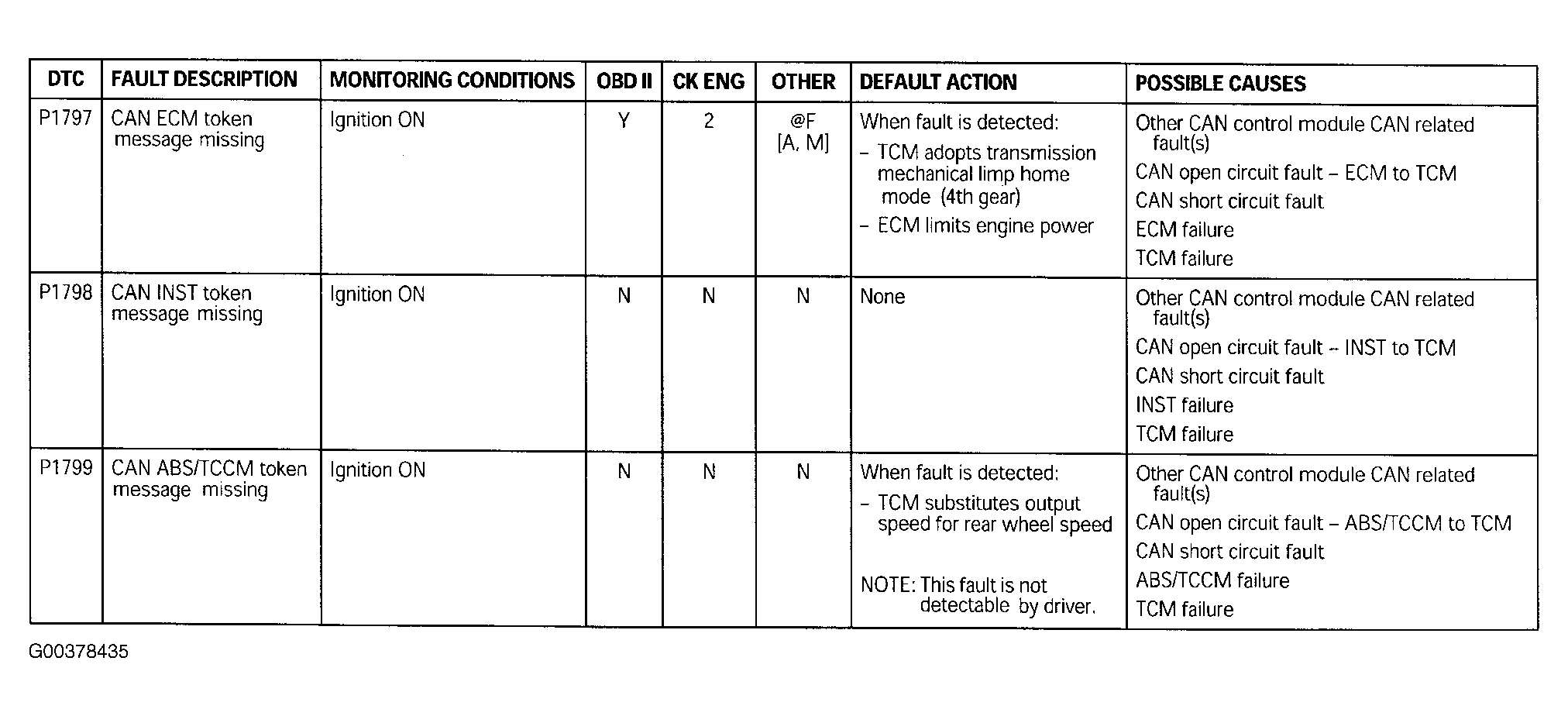

Fig 10: DTC P1797, P1798 & P1799 Fault Monitoring Conditions

Courtesy of JAGUAR CARS, INC.
