Driver Seat Module (DSM): Installation

  1. To install, reverse the removal procedure.
    • Tighten to 7 Nm.

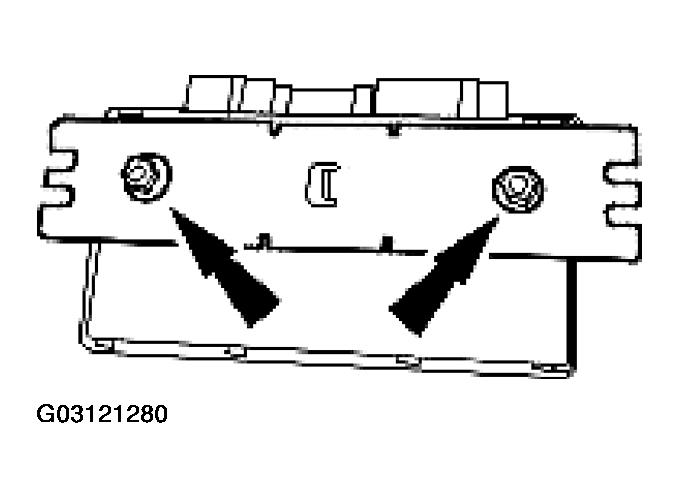

      Fig 1: Installing DSM
      G03121280
  2. Tighten to 4 Nm.

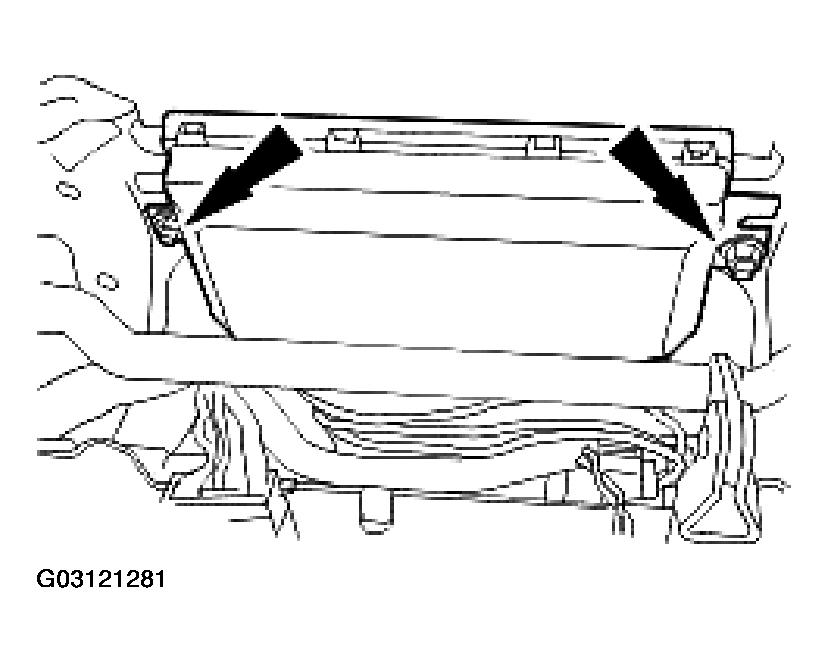

    Fig 2: Identifying Bolts
    G03121281
  3. Carry out the battery reconnection procedure. Refer to BATTERY RECONNECTION PROCEDURE .
