Speed Control Module: Installation

Adjust the speed control module alignment bolt shoulder to mounting bracket clearance to 1.5mm.

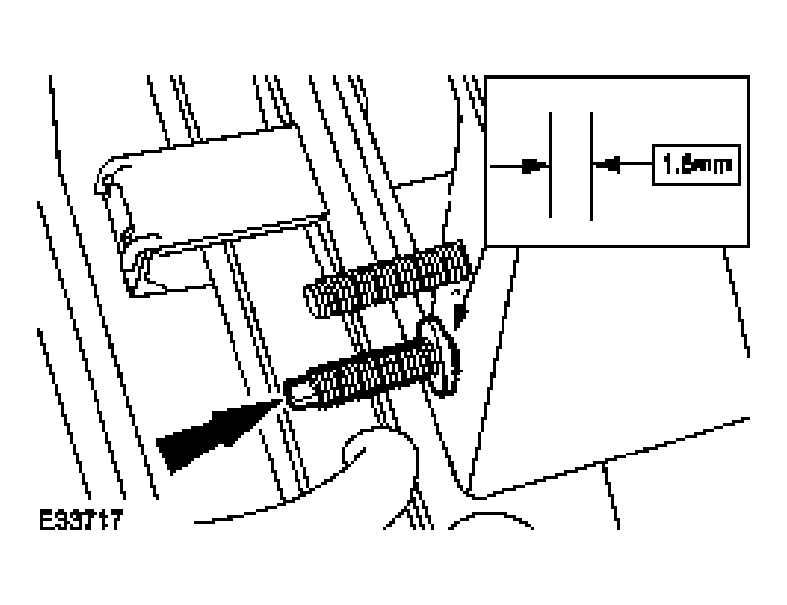

Fig 1: Adjusting Speed Control Module Alignment Bolt
Courtesy of JAGUAR CARS, INC.
Install the speed control module
- Tighten to 5 Nm
Fig 2: Installing Speed Control Module
Courtesy of JAGUAR CARS, INC.
Connect the speed control module electrical connector.

Fig 3: Connecting Speed Control Module Electrical Connector
Courtesy of JAGUAR CARS, INC.
Check and adjust the speed control module alignment.
For additional information, refer to SPEED CONTROL MODULE ALIGNMENT
Install the hood. For additional information, refer to HOOD .
Carry out the battery reconnection procedure. For additional information, refer to DISCONNECTING/CONNECTING THE BATTERY .
Initialize the system. For additional information, refer to the Jaguar approved diagnostic system.
