Engine Control Module (AJ27 SC) Connector End View

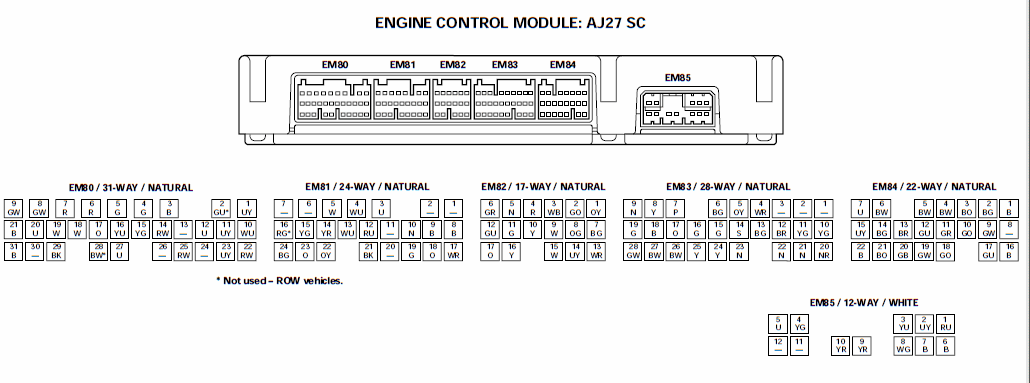

Fig 1: Engine Control Module (AJ27 SC) Connector End View
G00558652Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
