Input Speed Sensor Circuit

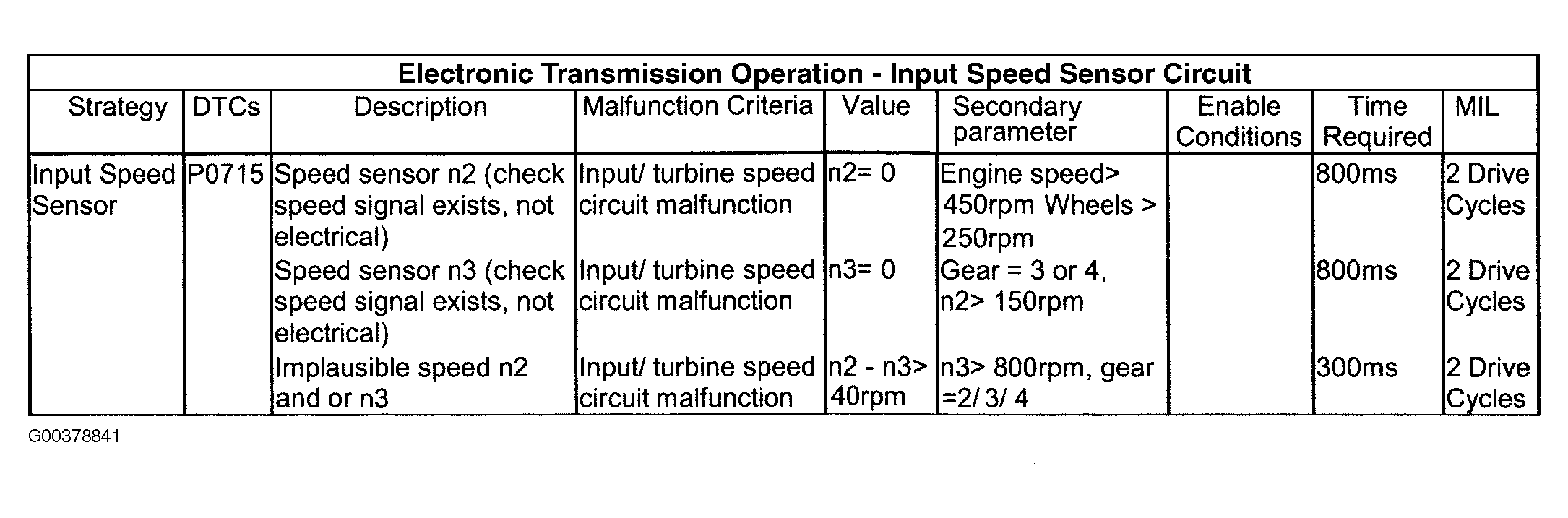

Fig 1: Input Speed Sensor Circuit Table
G00378841Courtesy of JAGUAR CARS, INC.

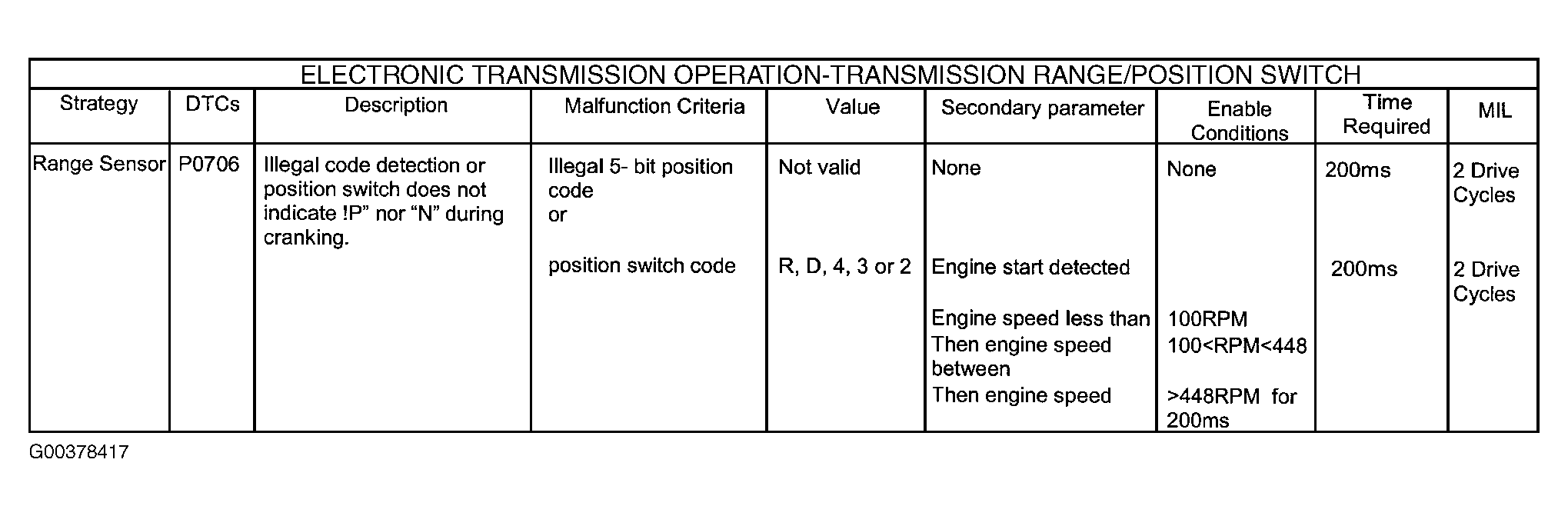

Fig 2: Transmission Range/Position Switch Table
G00378417Courtesy of JAGUAR CARS, INC.
