Wheel Speed Sensor Ring: Installation

If necessary, install a grease deflector ring to the rotor nut. Refer to WHEEL SPEED SENSOR RING GREASE DEFLECTOR .
Install rotor nut to hub.
- Install rotor nut. (1)
- Using special tool tighten rotor nut. (2)

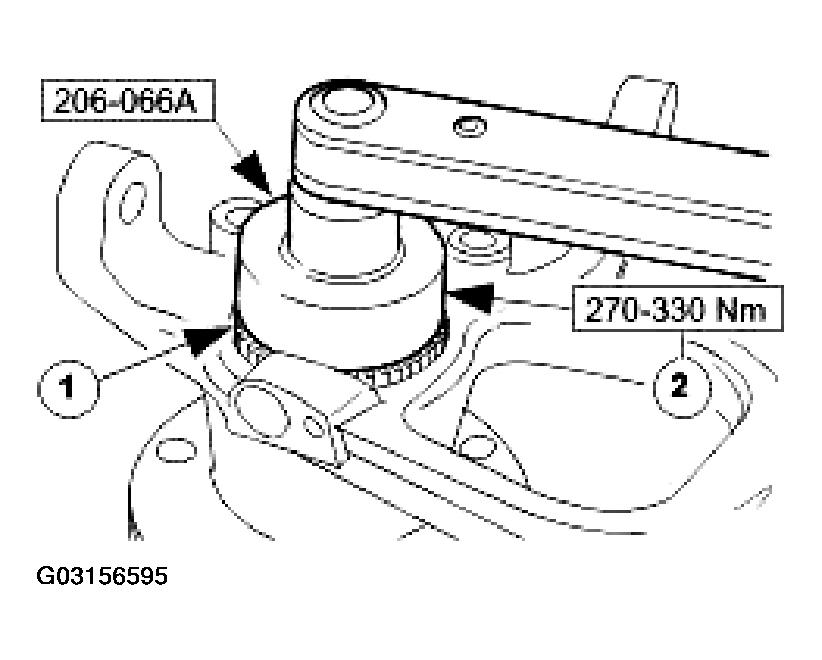

Fig 1: Tightening Rotor Nut
Courtesy of JAGUAR CARS, INC.

CAUTION: Do not slacken the rotor nut to engage the spring clip.

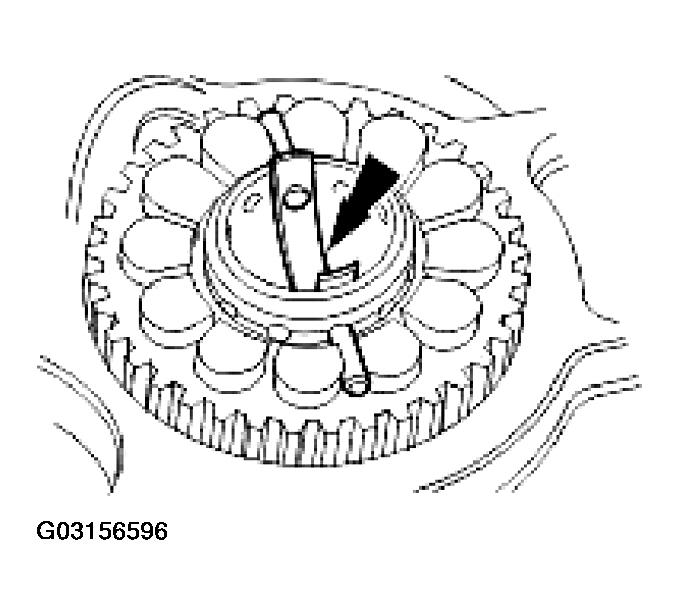

Fig 2: Installing Rotor Nut Spring-Clip

Courtesy of JAGUAR CARS, INC.

Install rotor nut spring-clip.
- Install spring clip into the hub retaining holes and, if aligned, into the castellated slots of the rotor nut.
- If the castellated slots of the rotor nut are not aligned it will be necessary to tighten the rotor nut further until the spring clip engages the slots.
Remove vertical link and hub assembly from special tool.
Install disc shield to vertical link.
- Position disc shield. (1)
- Install and tighten bolts. (2)

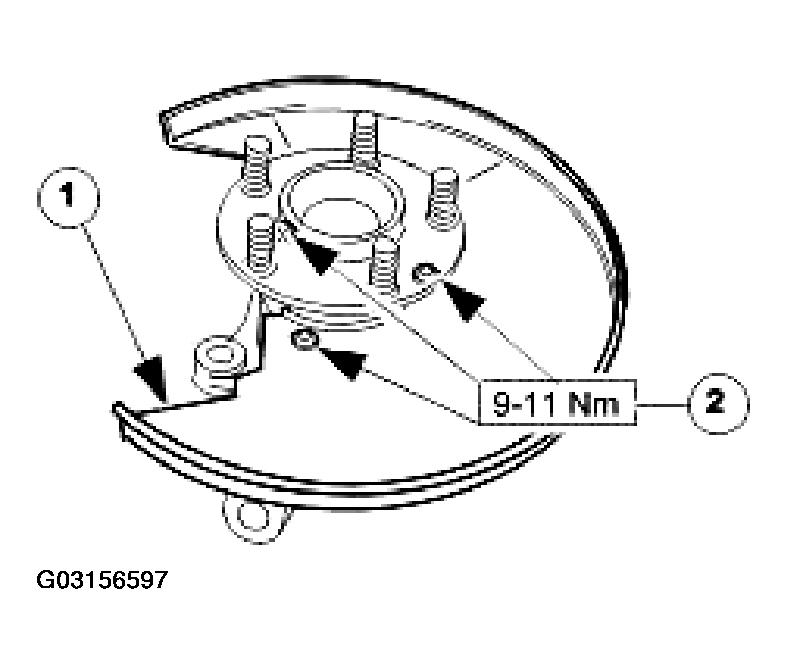

Fig 3: Fitting Disc Shield To Vertical Link
Courtesy of JAGUAR CARS, INC.
Install vertical link and hub assembly to vehicle. Refer to WHEEL KNUCKLE AND WHEEL HUB ASSEMBLY .
Install brake disc. Refer to FRONT DISC BRAKE ROTOR .
Install wheel. Refer to WHEEL AND TIRE .
Remove stands and lower vehicle.
