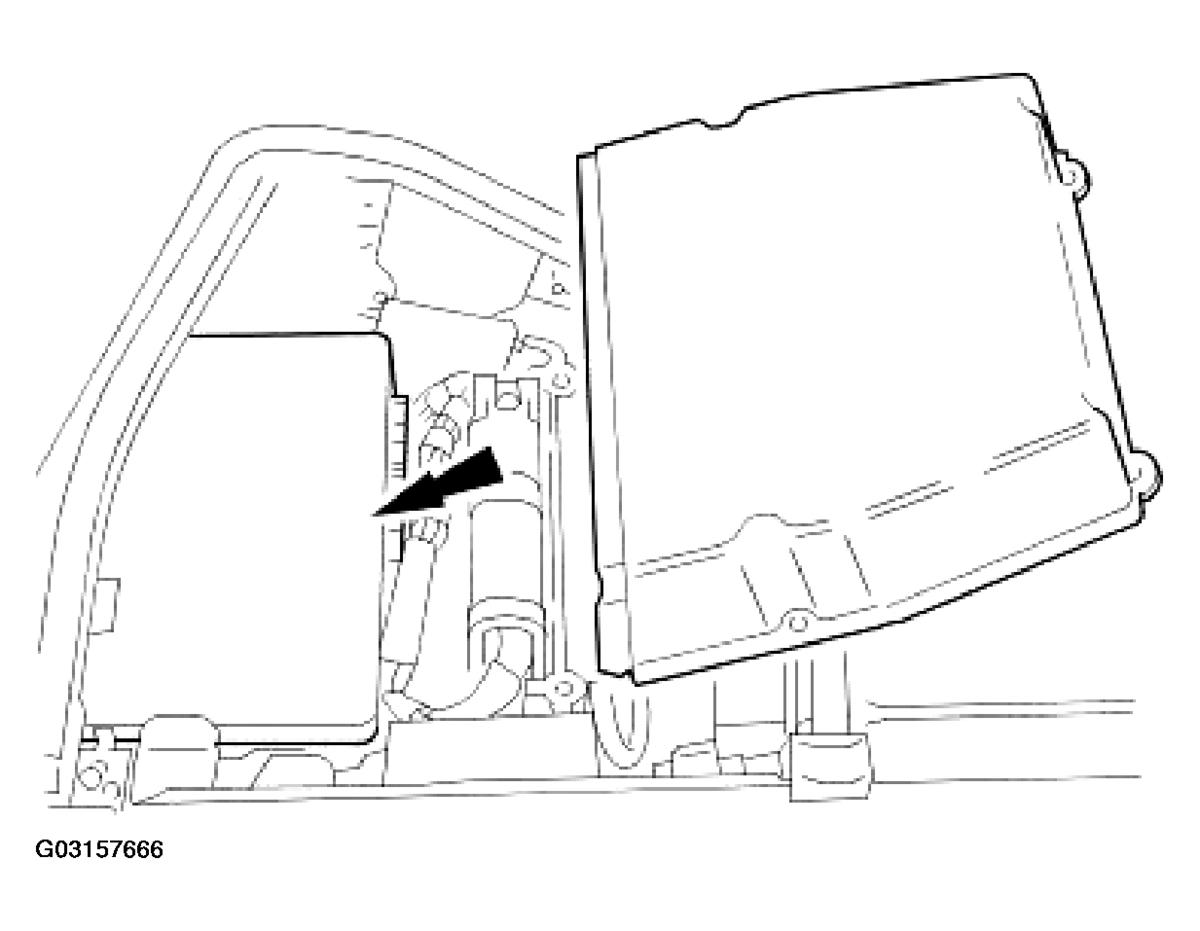

Engine Control Module (ECM)
The ECM incorporates a comprehensive monitoring and diagnostic capability including software variations to ensure system compliance with the latest diagnostic and emissions legislation in different markets. The engine control module controls the coil on plug ignition system, electronic fuel system, cruise control and the electronic throttle control system.
The ECM responds to input signals received from sensors relating to engine operating conditions and provides output signals to the appropriate actuators. These output signals are based on the evaluated input signals which are compared with calibrated data tables or maps held within the ECM before the output signal is generated.
The ECM needs the following inputs to calibrate the engine properly:
- camshaft position
- engine rpm
- engine coolant temperature
- amount of engine detonation
