Engine Control Module (ECM): Removal

Connect the battery and fit the battery cover.
- Refer to BATTERY RECONNECTION PROCEDURE .
Remove ECM housing cover.

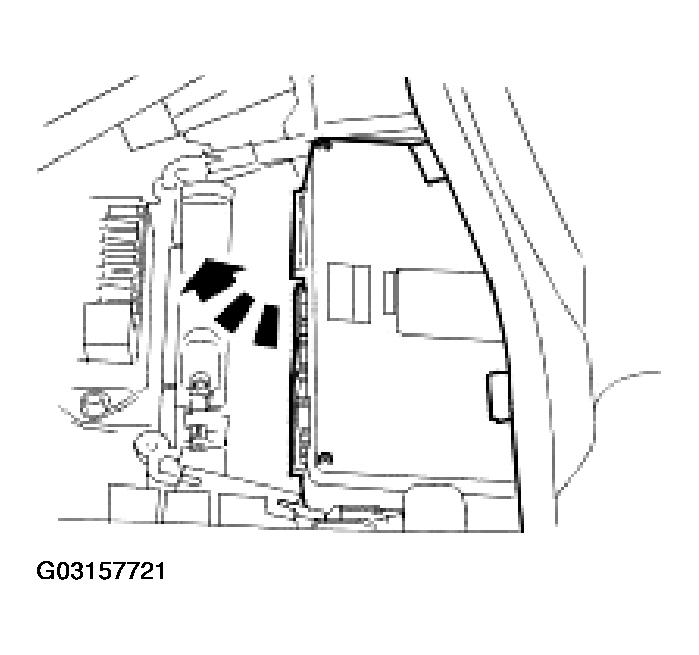

Fig 1: Removing Housing Cover
Courtesy of JAGUAR CARS, INC.
RHD only: Remove security bracket securing screws.
- Remove bracket.
Disconnect electrical connectors.
Lift ECM from housing.

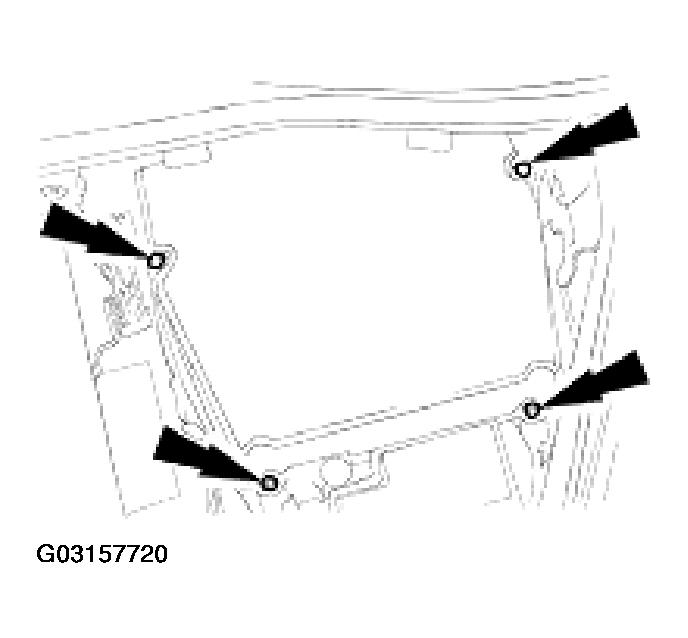

Fig 2: Removing ECM
Courtesy of JAGUAR CARS, INC.
RHD only: Remove security bracket securing screws.
- Remove brackets.
