Description And Operation: Notes

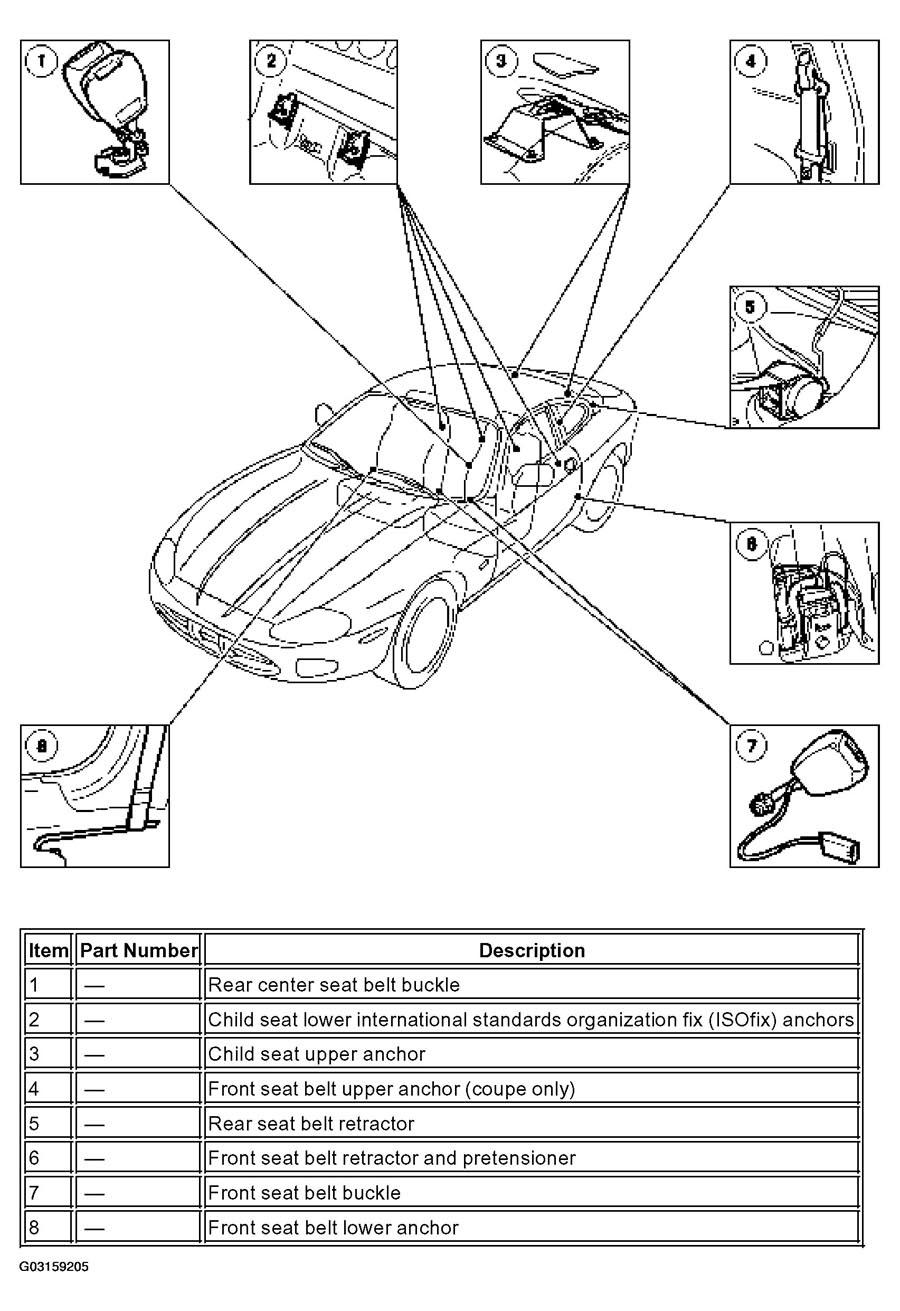

Fig 1: Identifying Safety Belt System Components
G03159205Courtesy of JAGUAR CARS, INC.
