Steering Gear Alignment Markers

  1. The steering gear should always be centralized prior to steering column or suspension geometry adjustment.
    • Centralization of the steering gear is achieved by aligning the marker on the centralizing cap with a locator on the pinion housing.

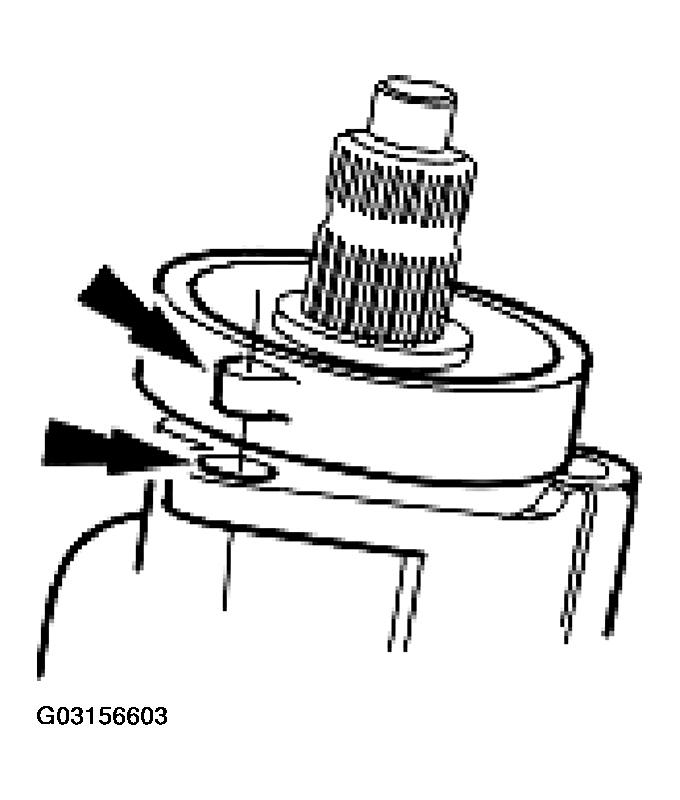

    Fig 1: Aligning Marker On Centralizing Cap With Locator On Pinion Housing
    G03156603Courtesy of JAGUAR CARS, INC.
