Engine Control Module: Locations

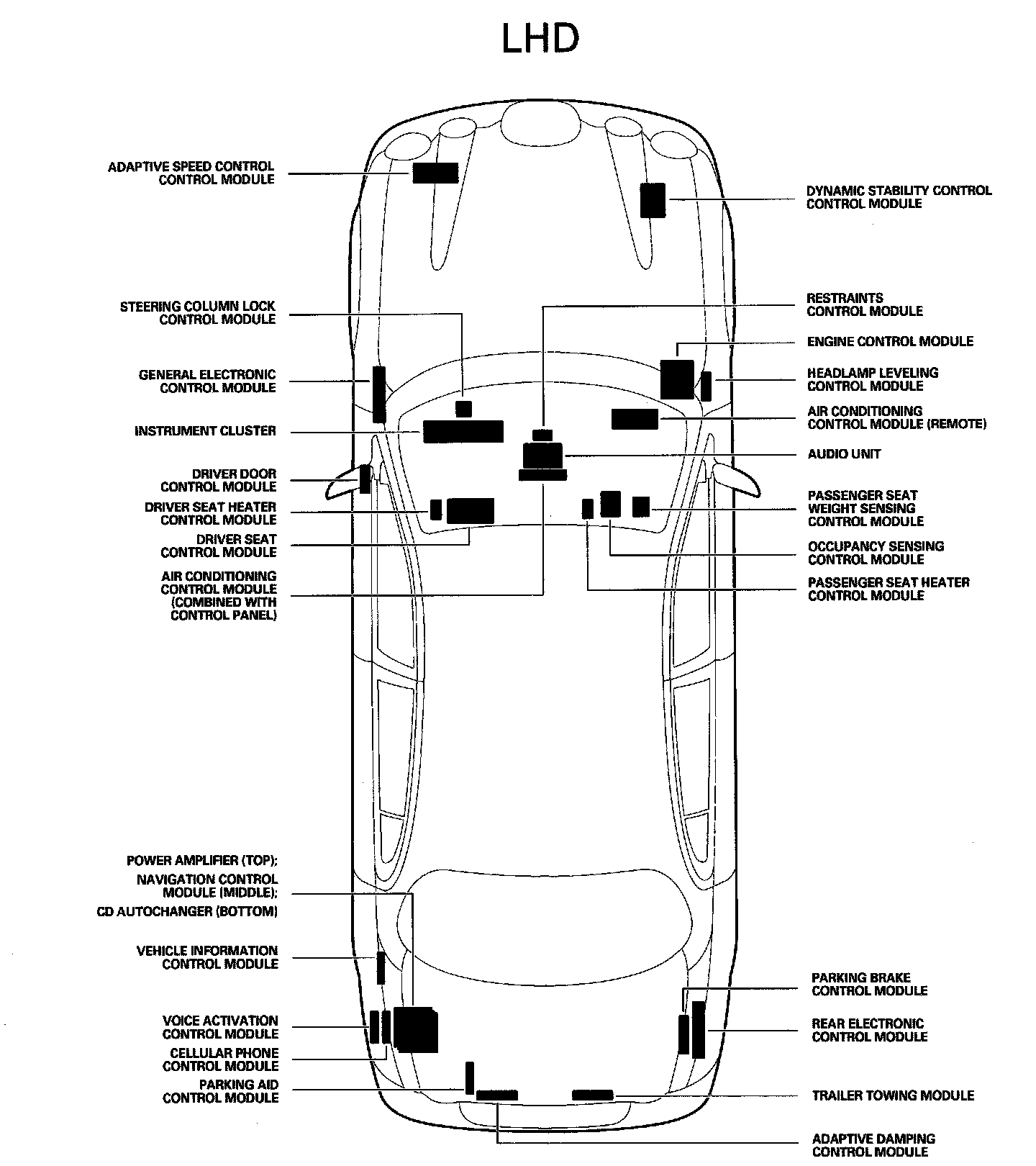

Control Module Location


LHD:






NOTE: THE TRANSMISSION CONTROL MODULE IS CONTAINED WITHIN THE TRANSMISSION.
