Security & Locking Control Module Connector End View

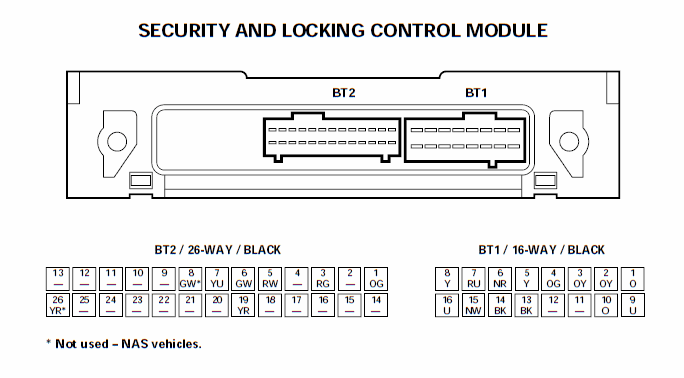

Fig 1: Security & Locking Control Module Connector End View
G00558659Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
