Driver Seat Control Module (Non-Memory) Connector End View

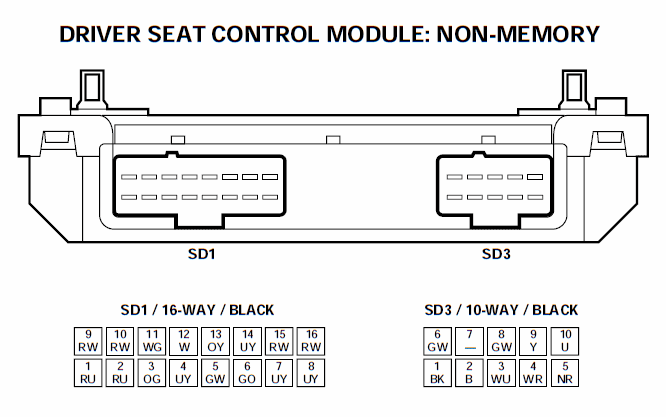

Fig 1: Driver Seat Control Module (Non-Memory) Connector End View
G00558650Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
