Body Processor Module Connector End View

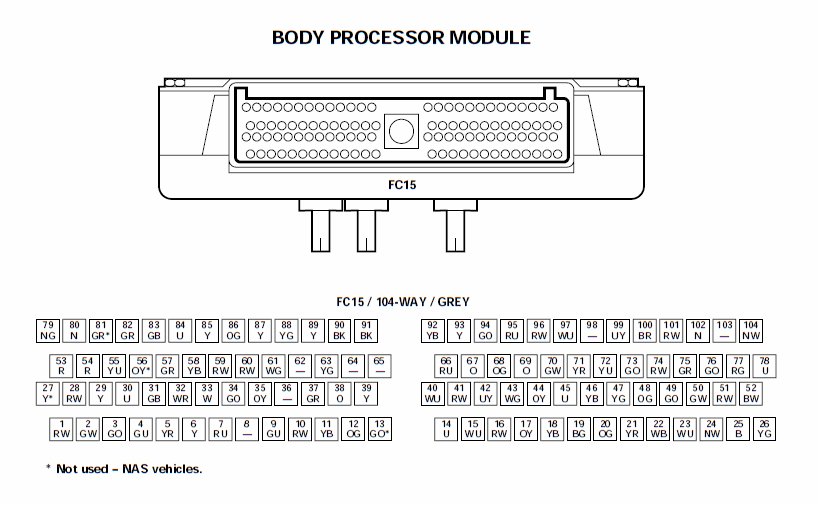

Fig 1: Body Processor Module Connector End View
G00558646Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
