Accelerator Pedal: Removal

  1. Remove the driver side instrument panel lower trim panel.
    Fig 1: Removing Driver Side Instrument Panel Lower Trim Panel
    G03555554Courtesy of JAGUAR CARS, INC.
  2. Detach the accelerator pedal retaining bracket.

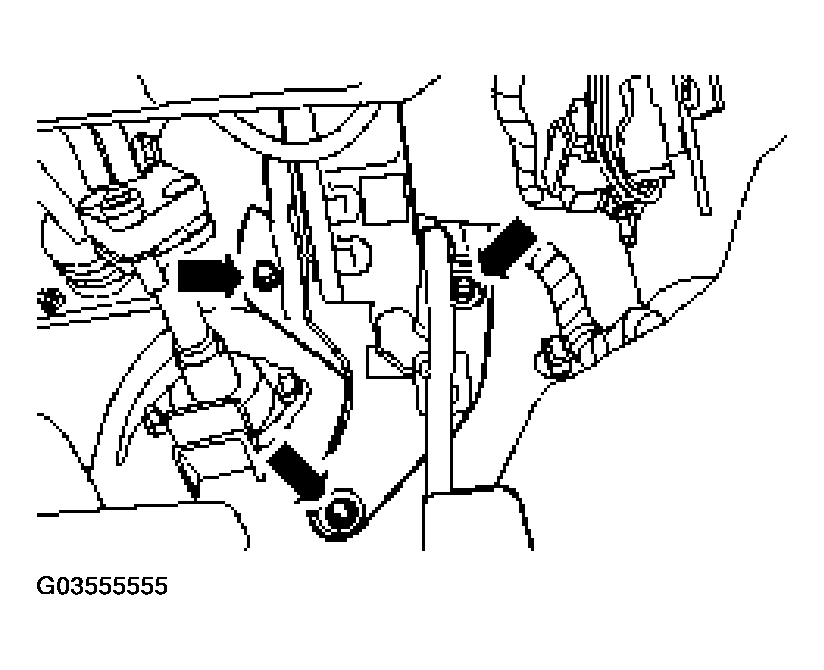

    Fig 2: Detaching Accelerator Pedal Retaining Bracket
    G03555555Courtesy of JAGUAR CARS, INC.
  3. Disconnect the accelerator pedal electrical connector.

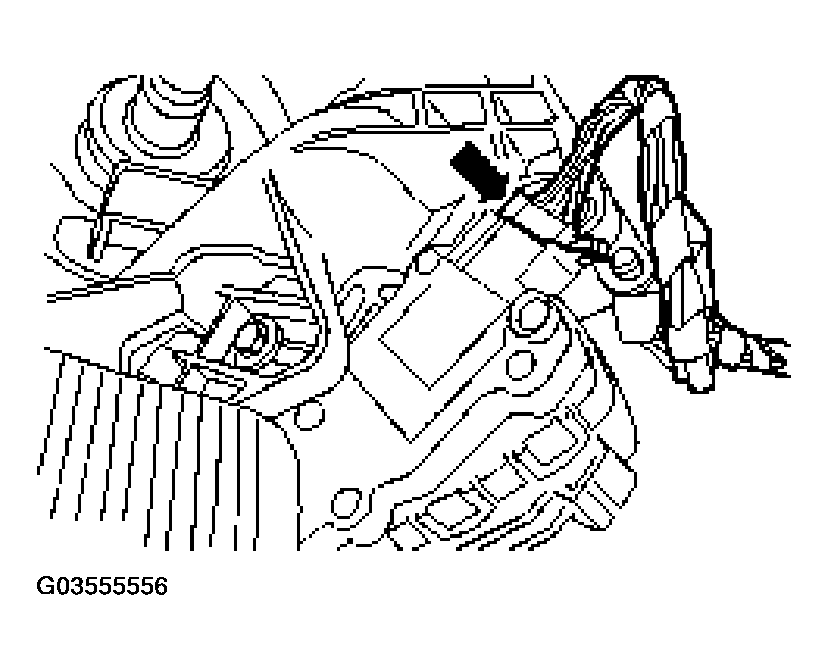

    Fig 3: Disconnecting Accelerator Pedal Electrical Connector
    G03555556Courtesy of JAGUAR CARS, INC.
  4. Detach the accelerator pedal wiring harness.

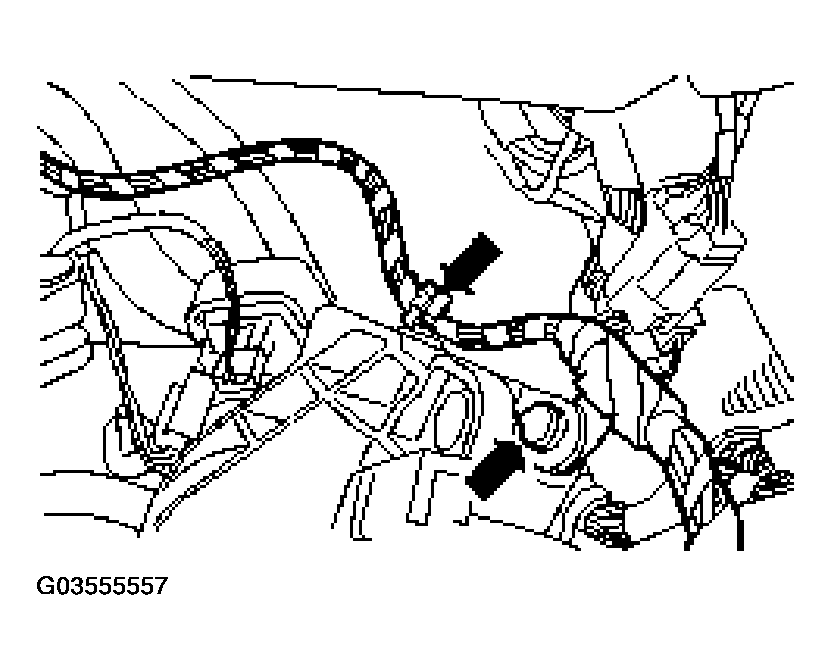

    Fig 4: Detaching Accelerator Pedal Wiring Harness
    G03555557Courtesy of JAGUAR CARS, INC.
  5. Disconnect the electrical connectors.

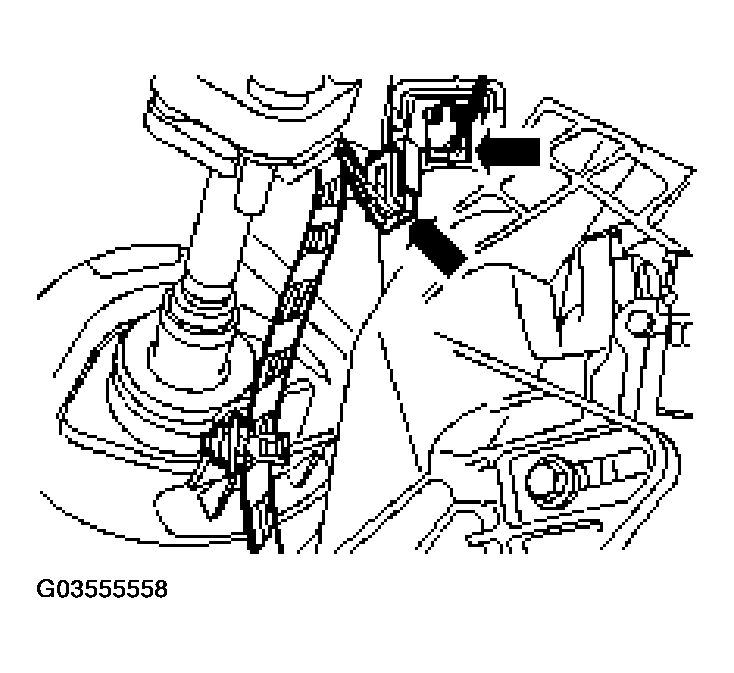

    Fig 5: Disconnecting Electrical Connectors
    G03555558Courtesy of JAGUAR CARS, INC.
  6. Remove the accelerator pedal.
    • Disconnect the height adjustable drive cable.

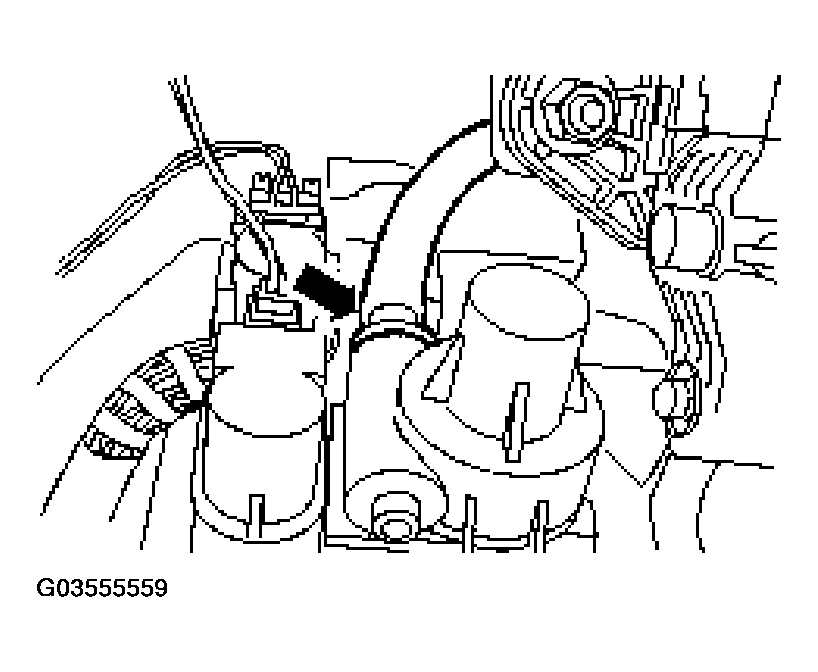

      Fig 6: Disconnecting Height Adjustable Drive Cable
      G03555559Courtesy of JAGUAR CARS, INC.
