Climate Control Assembly - Removal and Installation: Removal

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2006 Jaguar XKR, 2006 Jaguar XK8, 2005 Jaguar XKR, 2005 Jaguar XK8, and 2004 Jaguar XKR. However, it is still accessible from the selected car via links, so may be relevant.

Remove battery cover and disconnect ground cable from battery terminal. Refer to BATTERY GROUND CABLE - REMOVAL AND INSTALLATION .
Remove 'J' gate surround. Refer to SELECTOR LEVER CABLE AND BRACKET - REMOVAL AND INSTALLATION .
Remove center console. Refer to FLOOR CONSOLE - REMOVAL AND INSTALLATION .

Courtesy of JAGUAR CARS, INC.

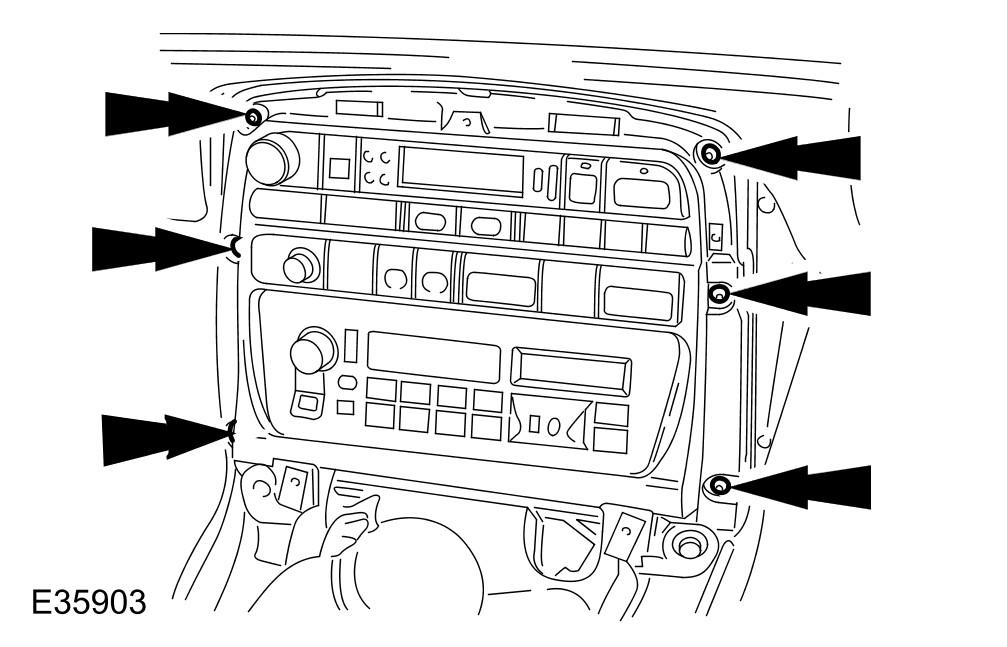

Remove radio console securing screws and position console for access.

Courtesy of JAGUAR CARS, INC.

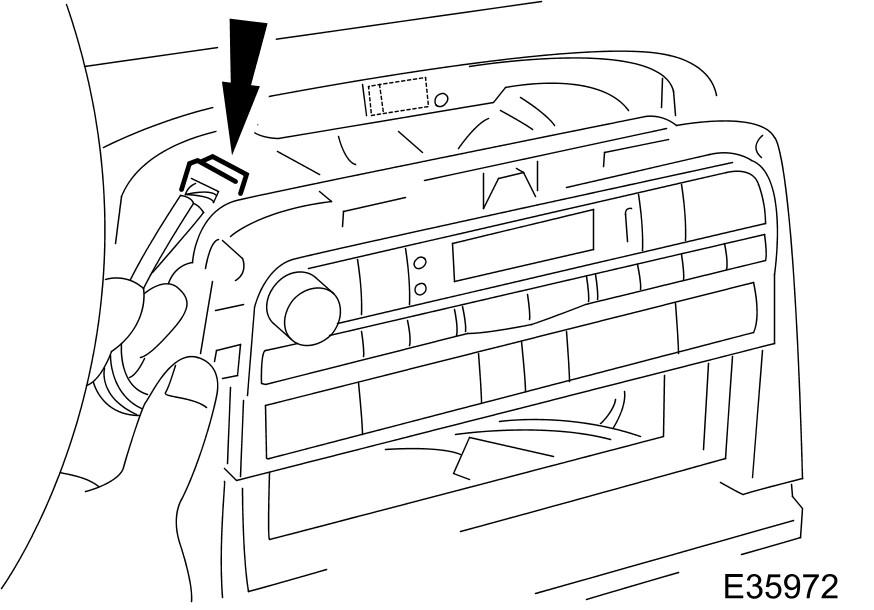

Disconnect air conditioning control module harness multi-plug and cut and remove securing tie strap.

Courtesy of JAGUAR CARS, INC.

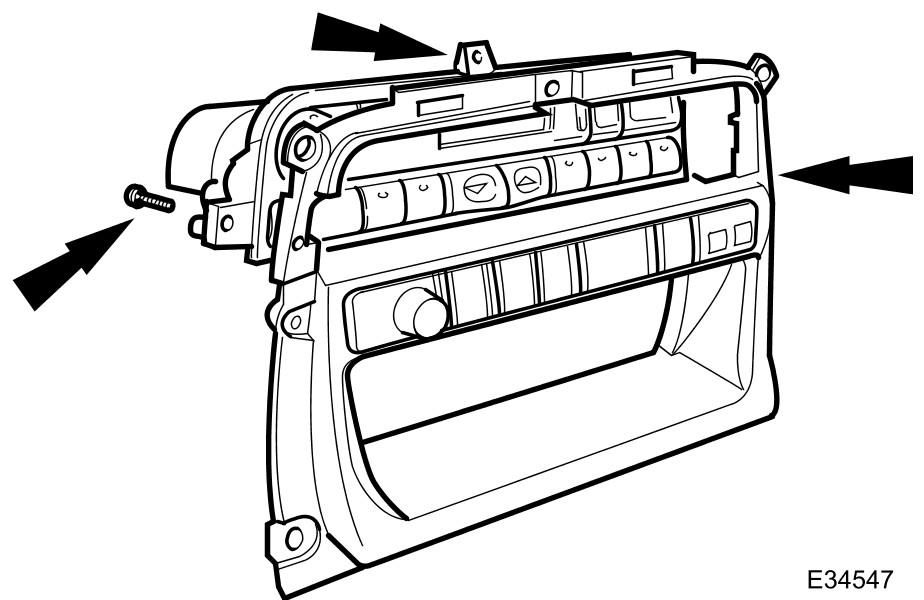

Remove remaining switch control module central securing screw and withdraw module from vehicle.
