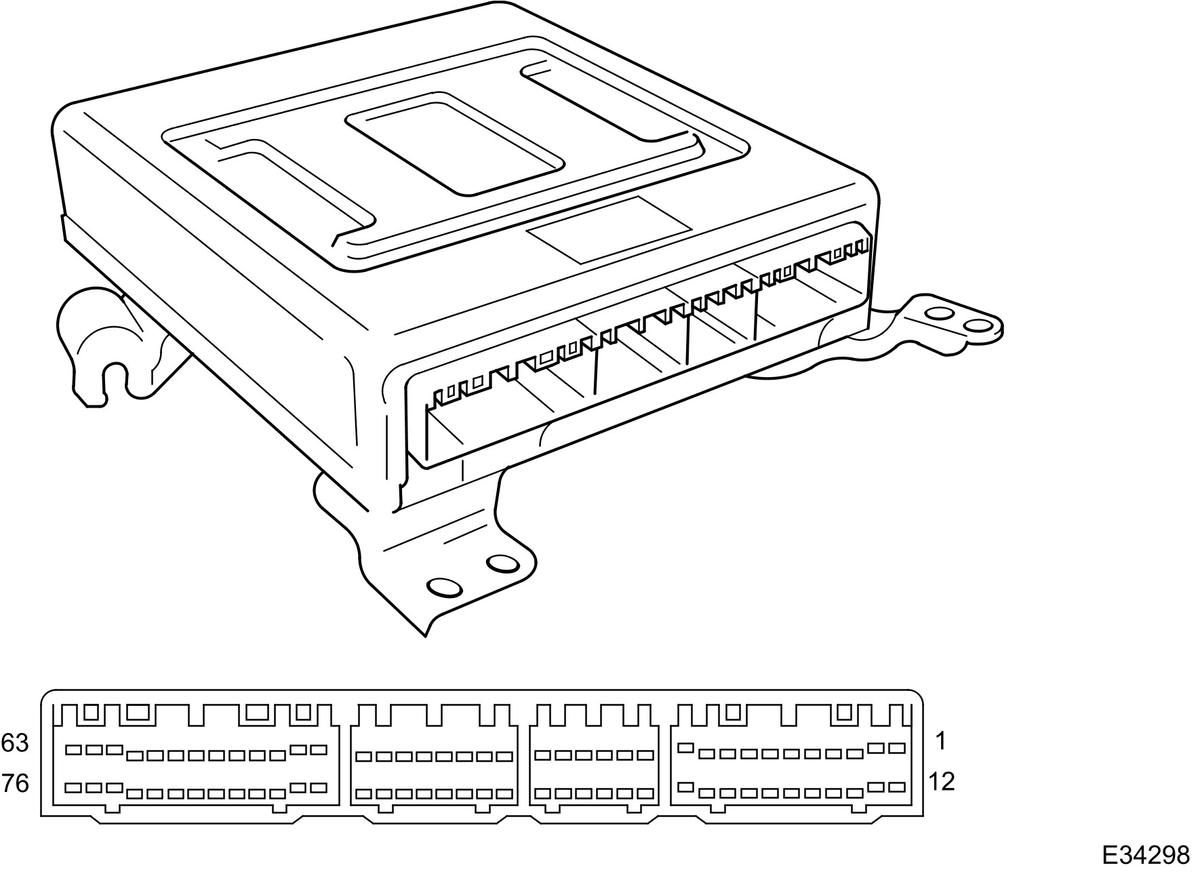

Air Conditioning Control Module (A/CCM)
WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2006 Jaguar XKR, 2006 Jaguar XK8, 2005 Jaguar XKR, 2005 Jaguar XK8, and 2004 Jaguar XKR. However, it is still accessible from the selected car via links, so may be relevant.

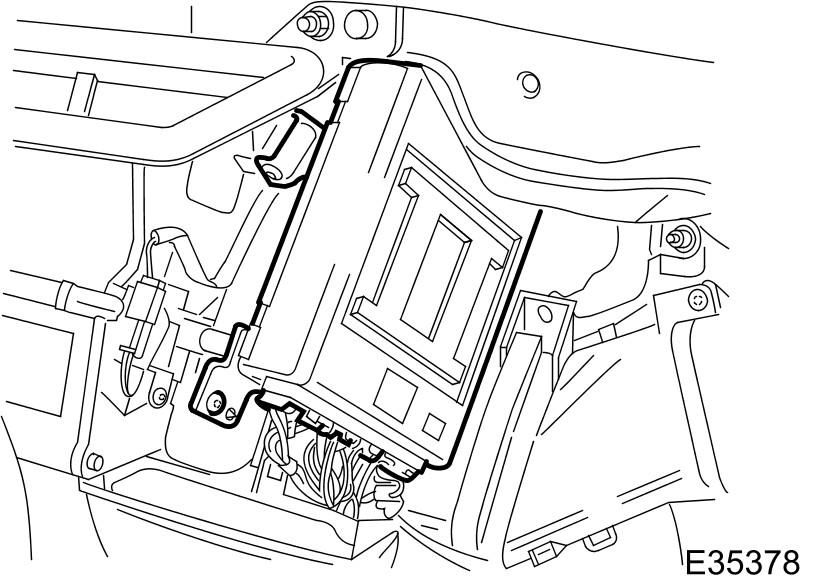

The A/CCM is located on the right hand side of the air conditioning unit and controls all system functions.
The temperature within the passenger compartment is continually compared with the temperature selected on the control panel LCD. The A/CCM receives data input signals and compares these with signals from the system temperature sensors and feedback devices. Based on this information the A/CCM adjusts the air outlet temperature, airflow and distribution from the air conditioning system into the passenger compartment.
