Multifunction Electronic Module - Removal and Installation: Removal

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2006 Jaguar XKR, 2006 Jaguar XK8, 2005 Jaguar XKR, 2005 Jaguar XK8, and 2004 Jaguar XKR. However, it is still accessible from the selected car via links, so may be relevant.

Disconnect the battery ground cable. Refer to Battery, Mounting and Cables article.

Courtesy of JAGUAR CARS, INC.

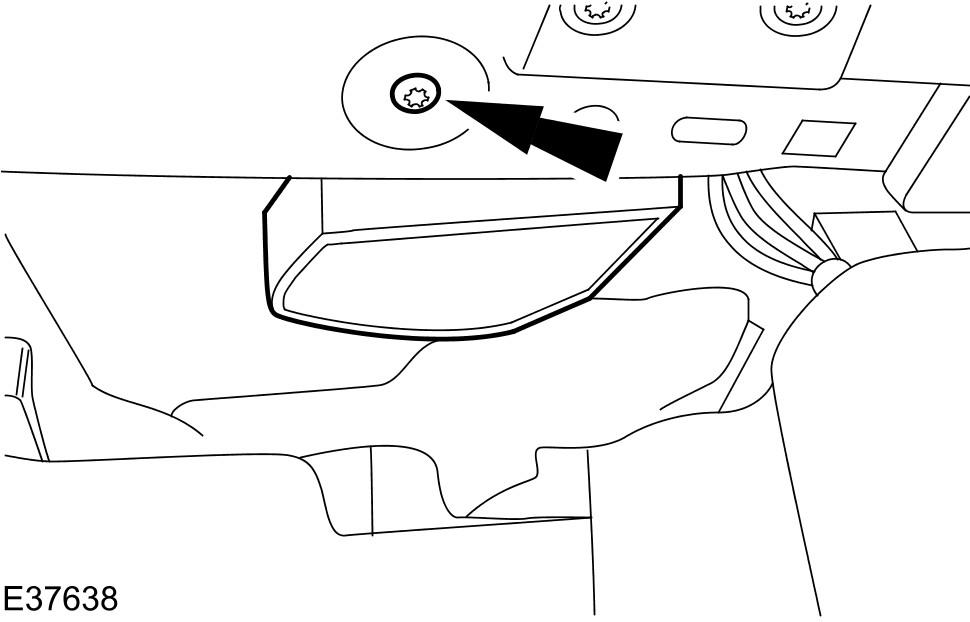

Remove the passenger side register duct.

Courtesy of JAGUAR CARS, INC.

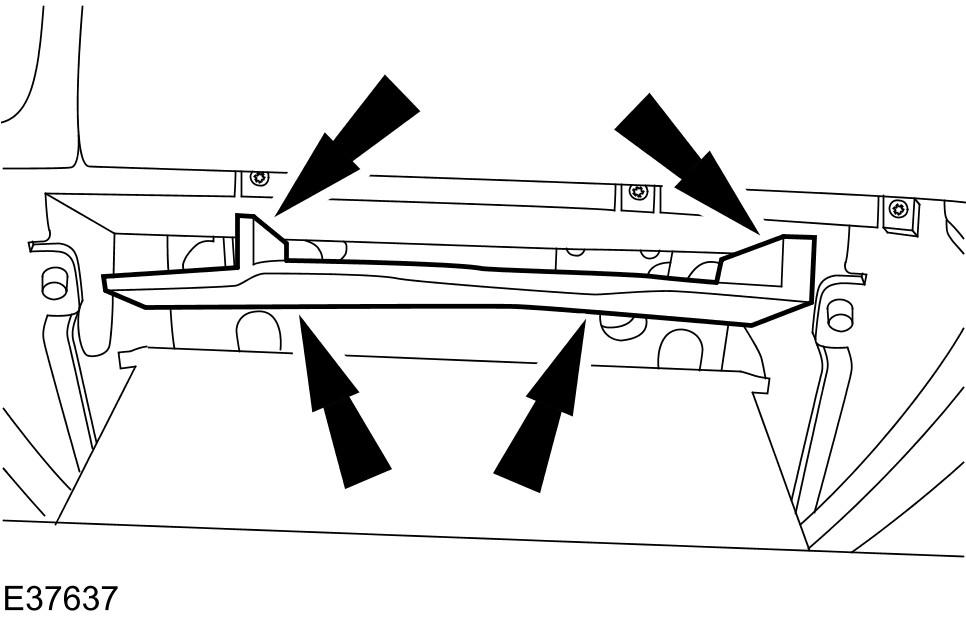

Remove the glove compartment shelf.

Courtesy of JAGUAR CARS, INC.

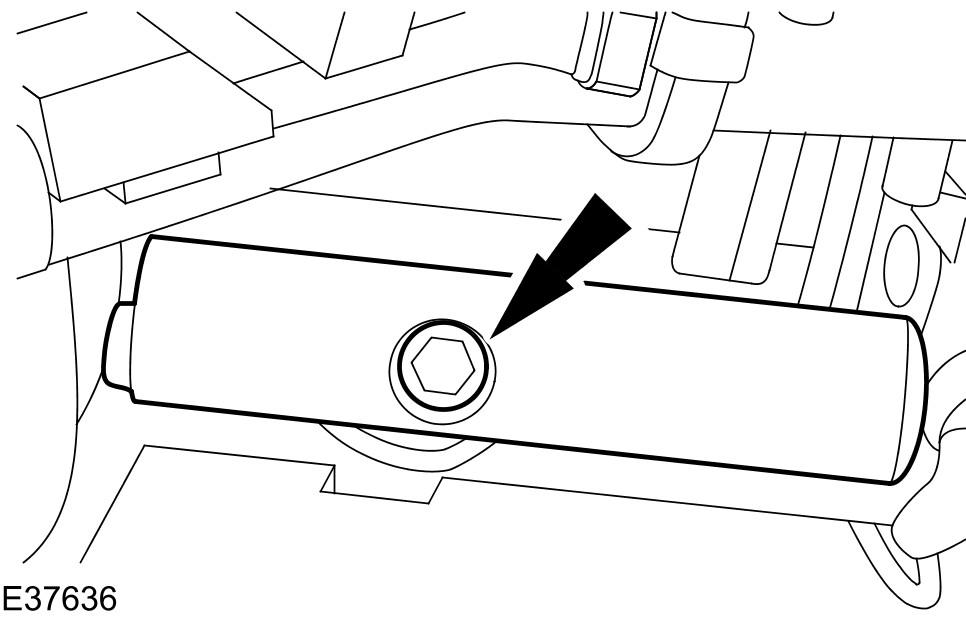

Disconnect the multifunction electronic module electrical connector.

Courtesy of JAGUAR CARS, INC.

NOTE: Glove compartment shown removed for clarity.

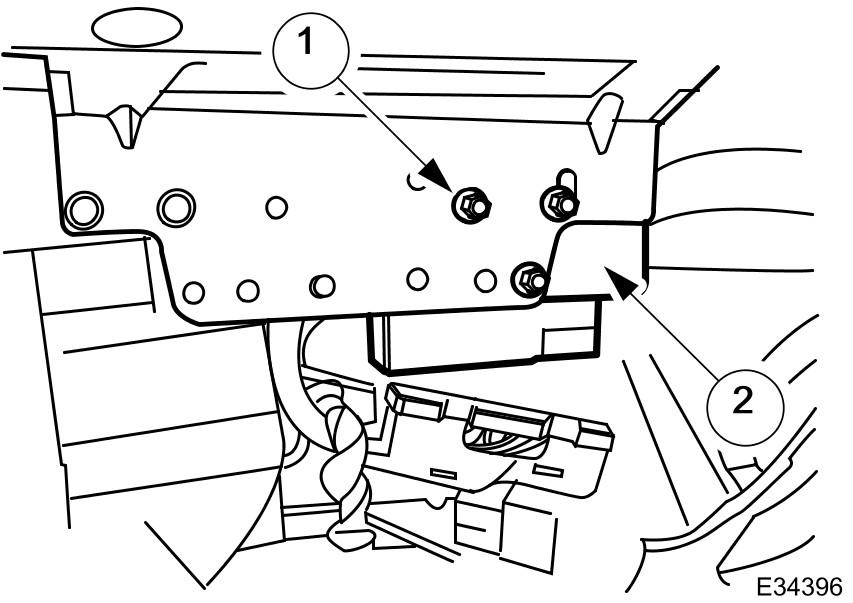

Remove the multifunction electronic module.
1. Remove the three nuts which secure the module to the instrument panel.
2. Remove the multifunction electronic module.
