Speed Control Module - Removal and Installation (Vehicles With: Adaptive Speed Control): Removal

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2009 Jaguar XKR, 2009 Jaguar XK8, 2008 Jaguar XKR, 2008 Jaguar XK8, and 2007 Jaguar XKR. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: This component is mounted to the rear of the RH A-pillar.

Courtesy of JAGUAR CARS, INC.

NOTE: LH illustration shown, RH is similar.

Remove the RH cowl side trim panel.

Courtesy of JAGUAR CARS, INC.

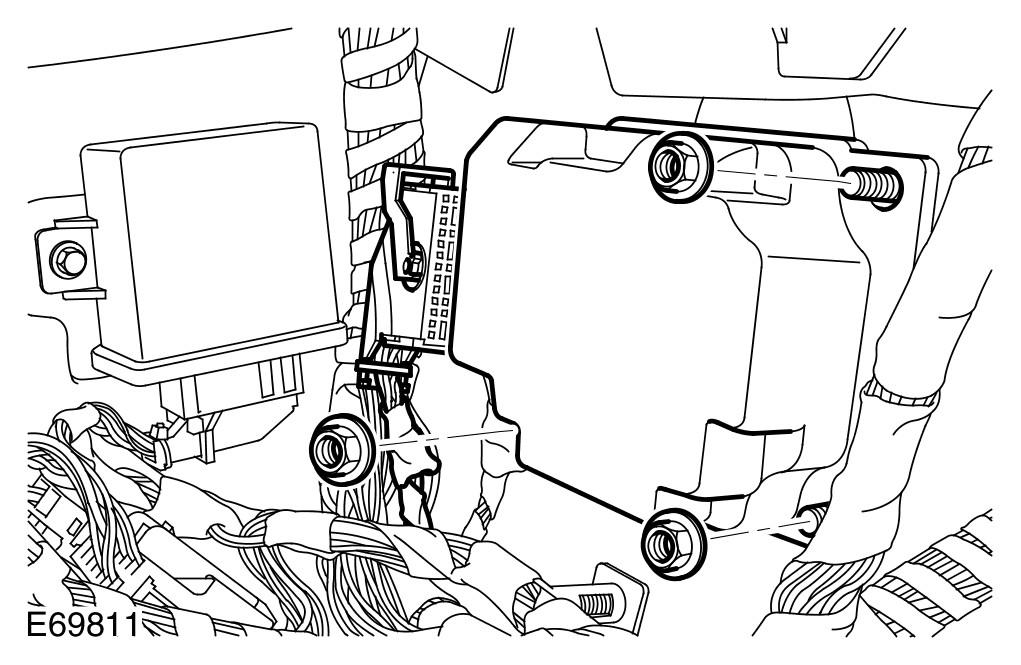

Remove the adaptive speed control module.
