Transmission Control Module (TCM) and Main Control Valve Body
WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2006 Jaguar XKR, 2006 Jaguar XK8, 2005 Jaguar XKR, 2005 Jaguar XK8, and 2004 Jaguar XKR. However, it is still accessible from the selected car via links, so may be relevant.
The transmission control module (TCM) and main control valve body is a combination of hydraulic and electronic control units. Both these modules are installed in the transmission, in the fluid pan.
This technical principle has the following advantages:
- Minimum tolerances (TCM is mated to solenoids)
- Better coordination of gear shifts
- Increased refinement
- Optimized shift quality
- Good reliability, since the number of plug connections and interfaces is reduced.

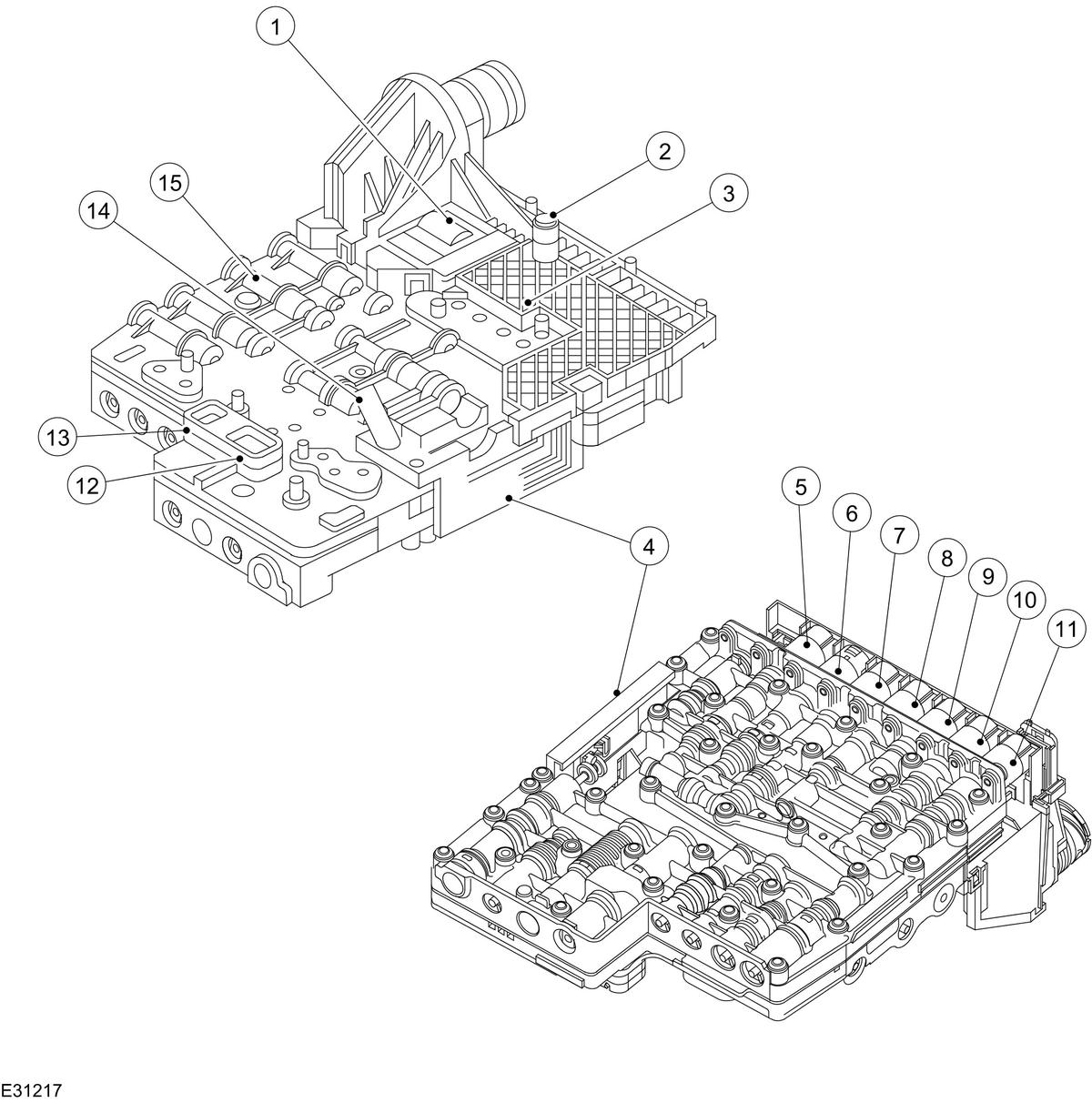

| Item Number | Description |
|---|---|
| 1 | TCM |
| 2 | Output speed sensor |
| 3 | Transmission fluid temperature sensor |
| 4 | Position switch |
| 5 | Pressure regulator 6 |
| 6 | Solenoid valve |
| 7 | Pressure regulator 5 |
| 8 | Pressure regulator 4 |
| 9 | Pressure regulator 3 |
| 10 | Pressure regulator 2 |
| 11 | Pressure regulator 1 |
| 12 | Discharge port |
| 13 | Suction port |
| 14 | Turbine speed sensor |
| 15 | Main control valve body |
