Oil Pressure Switch - In-Vehicle Procedures: Notes

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2006 Jaguar XKR, 2006 Jaguar XK8, 2005 Jaguar XKR, 2005 Jaguar XK8, and 2004 Jaguar XKR. However, it is still accessible from the selected car via links, so may be relevant.

Raise and support the vehicle. Refer to Jacking and Lifting .

Courtesy of JAGUAR CARS, INC.
Remove the generator lower cooling duct.

Courtesy of JAGUAR CARS, INC.

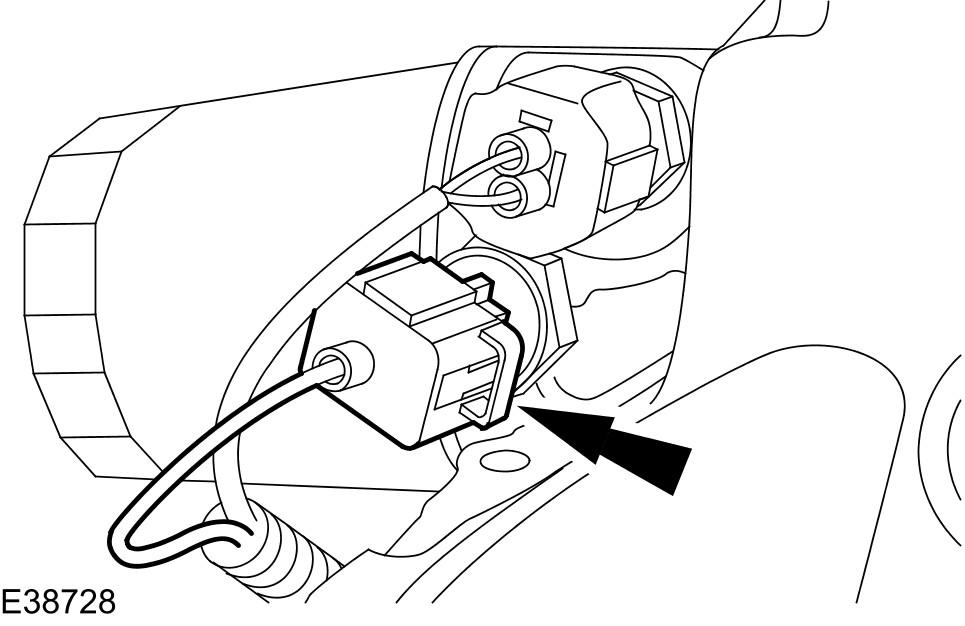

Disconnect the oil pressure switch electrical connector.

Courtesy of JAGUAR CARS, INC.

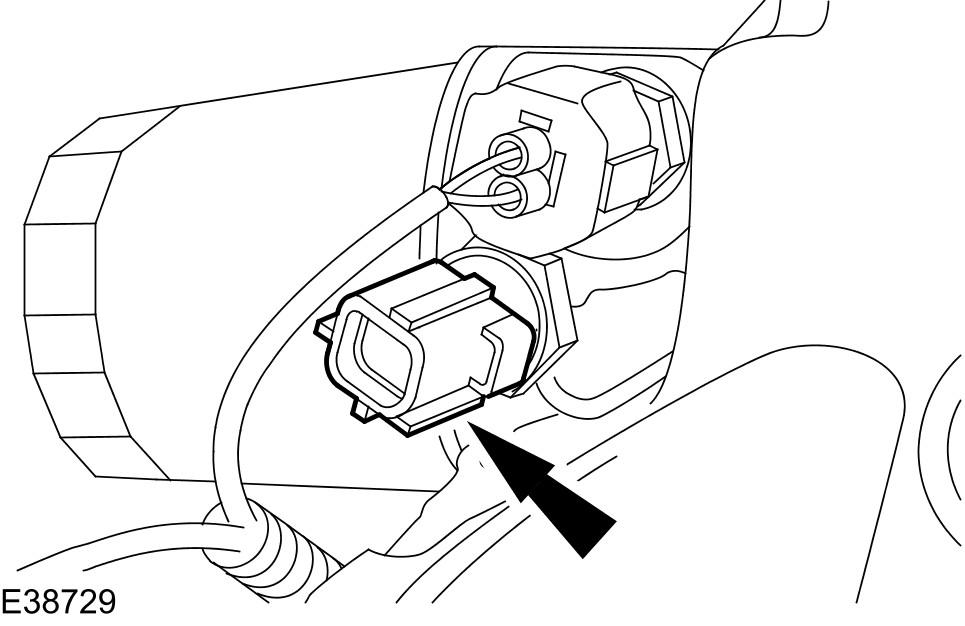

Remove the oil pressure switch.
