Speed Control - Description & Operation: Notes

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2006 Jaguar XKR, 2006 Jaguar XK8, 2005 Jaguar XKR, 2005 Jaguar XK8, and 2004 Jaguar XKR. However, it is still accessible from the selected car via links, so may be relevant.

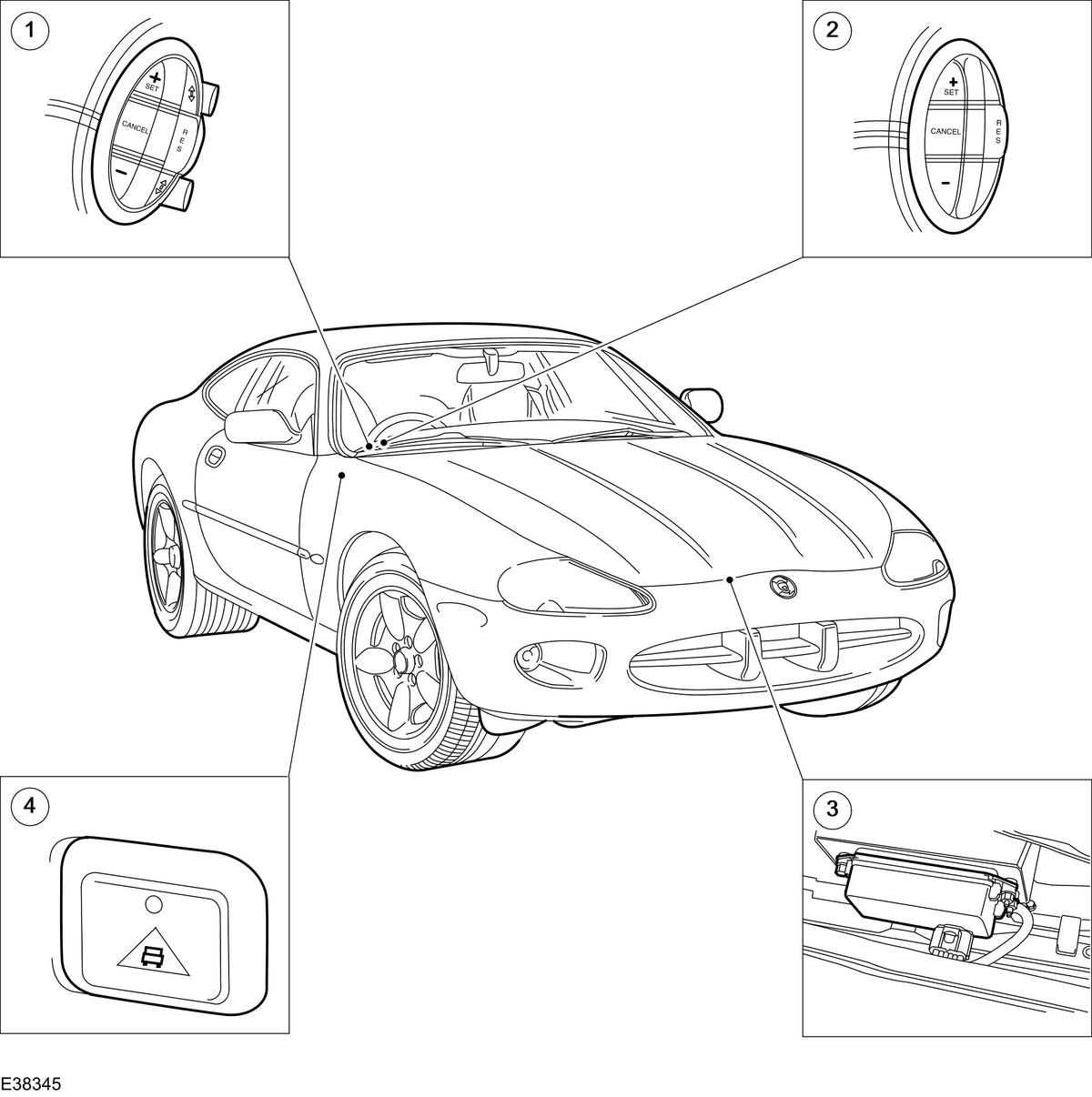

Fig 1: Speed Control Switches

Courtesy of JAGUAR CARS, INC.

Item Number	Description
1	Speed control switch - vehicles with adaptive speed control
2	Speed control switch - vehicles without adaptive speed control
3	Speed control module - vehicles with adaptive speed control
4	Forward alert switch - vehicles with adaptive speed control

The Speed Control system offers the driver relaxed vehicle cruising by enabling a pre-set constant vehicle speed to be maintained without driver operation of the accelerator pedal.

Speed control switch - vehicles without adaptive speed control

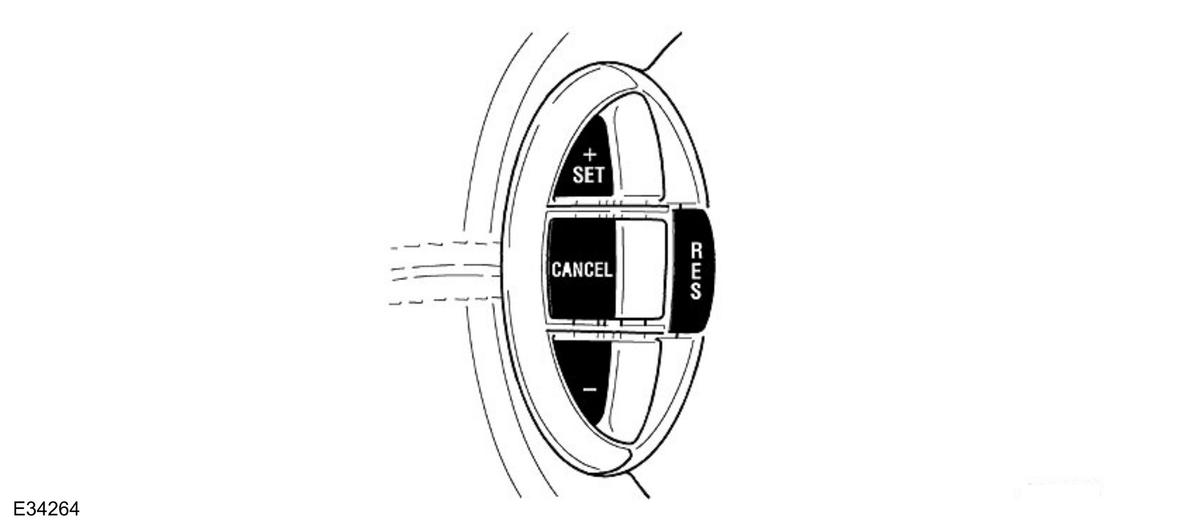

Fig 2: Speed Control Switch - Vehicles Without Adaptive Speed Control

Courtesy of JAGUAR CARS, INC.

The speed control switch provides for driver increase (SET +) or decrease (-) of set vehicle speed, suspension of system operation with set speed memorized (CANCEL) and resumption of operation at memorized vehicle speed (RESUME). The vehicle speed control system will not operate below 26km/h (16mph).

The set vehicle speed can be increased or decreased in 2km/h (1mph) increments by briefly pressing the (SET +) or (-) control button. Alternatively, the (SET +) or (-) button can be pressed and held until the required vehicle speed is reached.

Automatic switch off - vehicles without adaptive speed control

The speed control will disengage, but not clear the memory when:

the CANCEL button is activated.
the brake pedal is applied.
the vehicle speed falls below 26Km/h (16mph).
neutral, park or reverse gear positions are selected.
traction control is activated.

The speed control will disengage, and clear the memory when:

the ignition switch is set to position '0'.

maximum vehicle speed is reached.
the parkbrake is applied.
a fault occurs in the adaptive speed control system.

Speed control failure - vehicles without adaptive speed control

If a fault occurs during any speed control operation the speed control system will be deactivated and will remain in this state until the fault is rectified. The message center will display 'CRUISE NOT AVAILABLE'.
