Speed Control Module - Removal and Installation: Installation

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2006 Jaguar XKR, 2006 Jaguar XK8, 2005 Jaguar XKR, 2005 Jaguar XK8, and 2004 Jaguar XKR. However, it is still accessible from the selected car via links, so may be relevant.

Courtesy of JAGUAR CARS, INC.

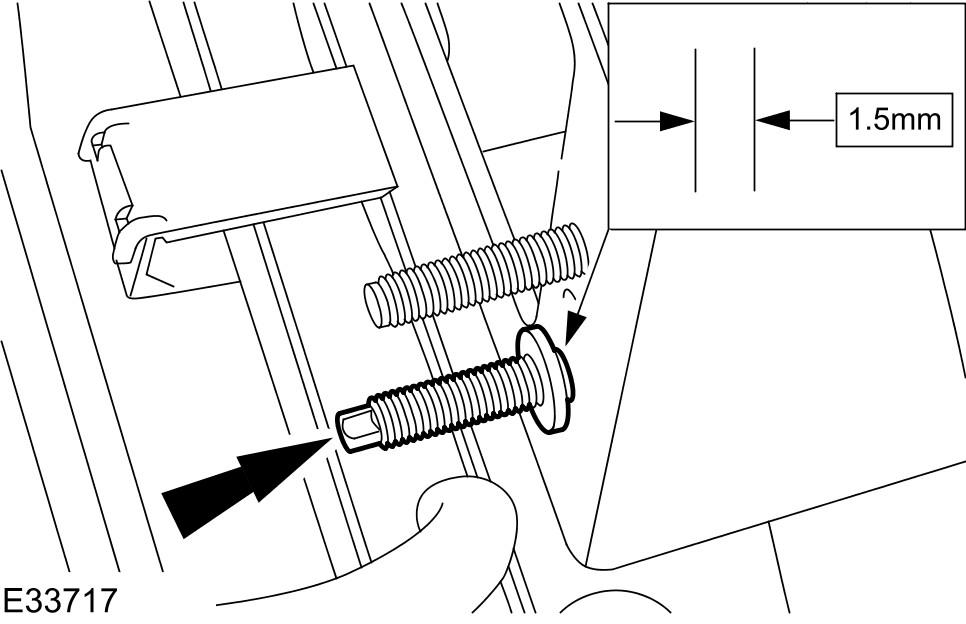

Adjust the speed control module alignment bolt shoulder to mounting bracket clearance to 1.5mm.

Courtesy of JAGUAR CARS, INC.

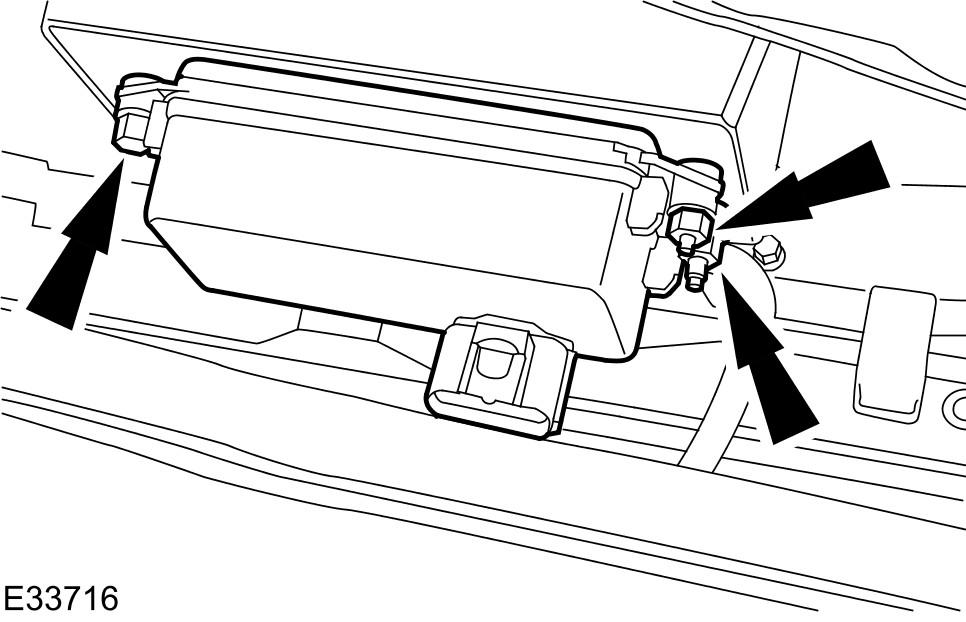

Install the speed control module.
- Tighten to 5 Nm.
Courtesy of JAGUAR CARS, INC.

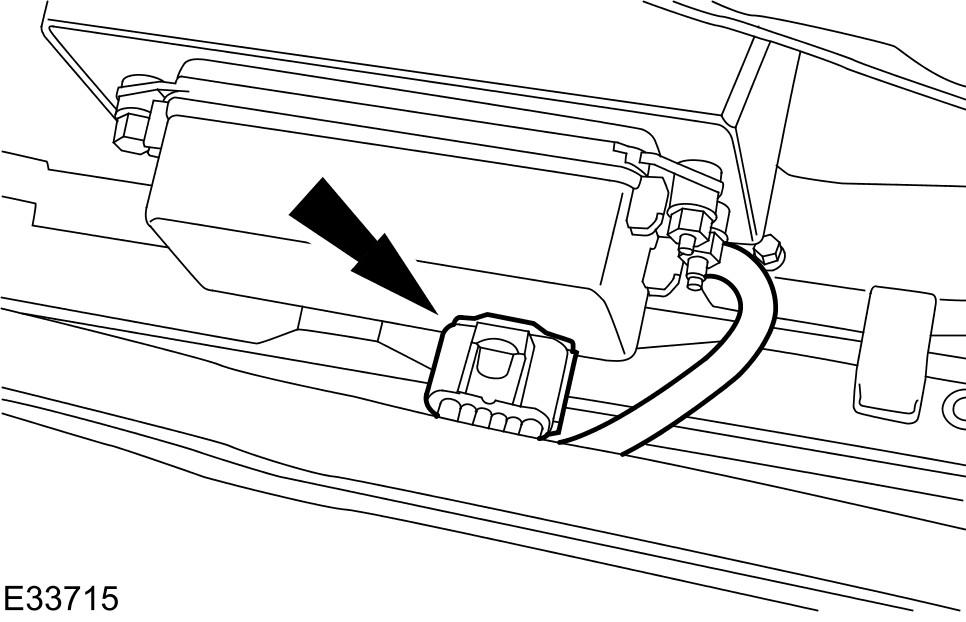

Connect the speed control module electrical connector.
Check and adjust the speed control module alignment. Refer to Speed Control Module Alignment - General Procedures .
Install the hood. For additional information, Refer to Body Closures . .
Carry out the battery reconnection procedure. For additional information, Refer to Battery, Mounting and Cables . .
Initialize the system. For additional information, refer to the Jaguar approved diagnostic system.
