Auxiliary Junction Box - Removal and Installation: Removal

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2006 Jaguar XKR, 2006 Jaguar XK8, 2005 Jaguar XKR, 2005 Jaguar XK8, and 2004 Jaguar XKR. However, it is still accessible from the selected car via links, so may be relevant.

Open the driver's door, or both doors if necessary, to allow the side windows to drop. Ensure that the doors remain open until after the battery has been disconnected.

Courtesy of JAGUAR CARS, INC.

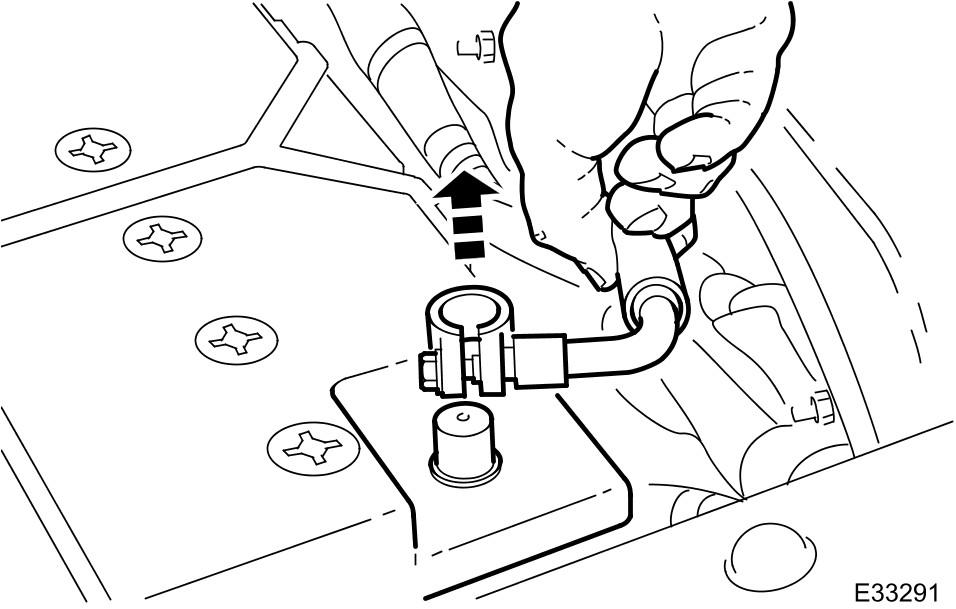

Disconnect the battery ground cable.
- Remove the battery cover.
Open the bonnet and fit body paintwork protection sheets.

Courtesy of JAGUAR CARS, INC.

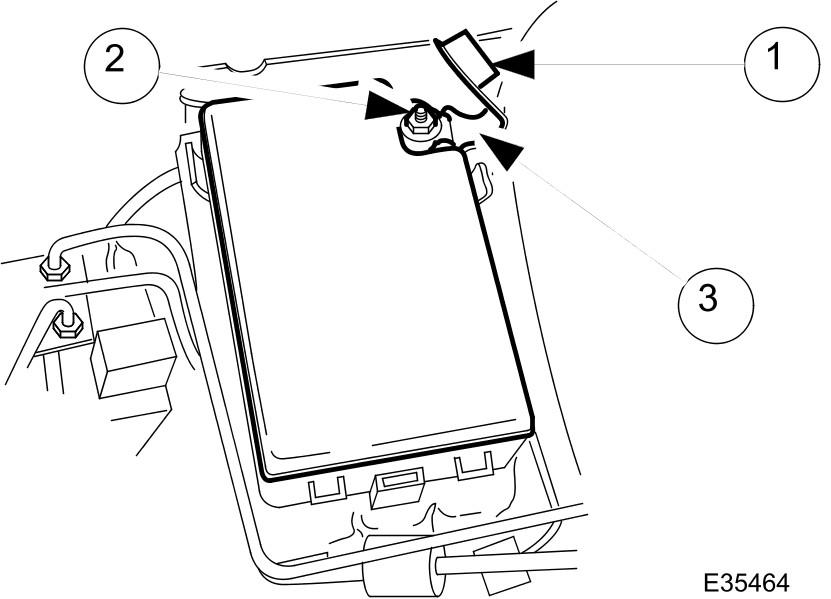

Remove the positive supply power cable.
1. Remove the fuse-box from the mounting panel.
  Reposition the cover from the positive cable.
2. Remove the nut which secures the positive cable to the fuse-box.
3. Disconnect the positive power cable.
Courtesy of JAGUAR CARS, INC.

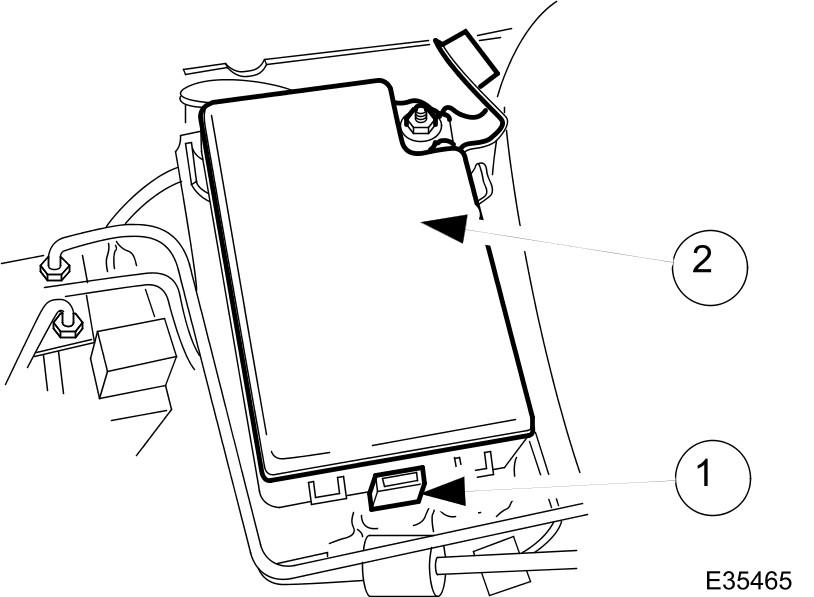

Remove the fuse-box from the mounting panel.
1. Release the securing latch, upwards.
  1. Reposition the fuse-box, inwards.
  2. Remove the fuse-box from the mounting panel.
2. Releases the securing tangs and remove the cover from the fuse-box.
Courtesy of JAGUAR CARS, INC.

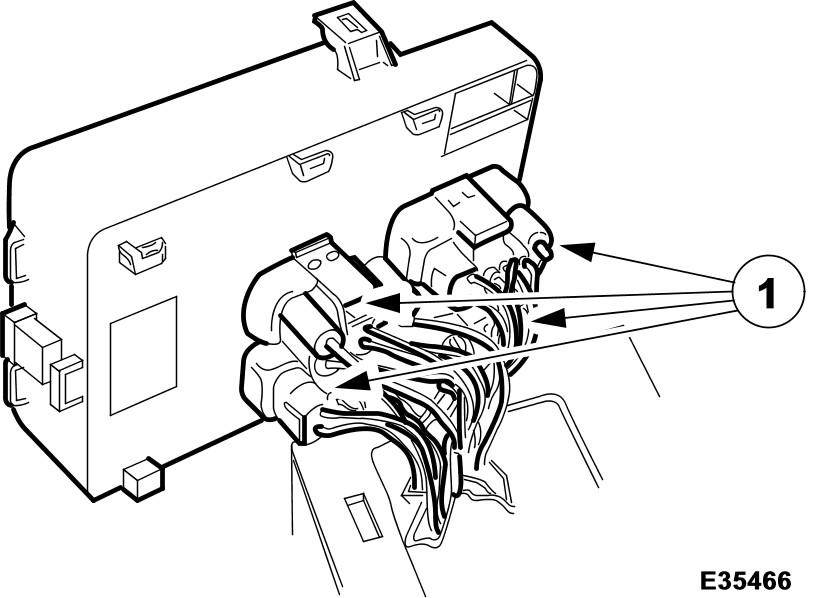

Remove the fuse-box.
1. Identify and disconnect the harness multi-plugs from the fuse-box. Remove the fuse-box from the vehicle.
Courtesy of JAGUAR CARS, INC.

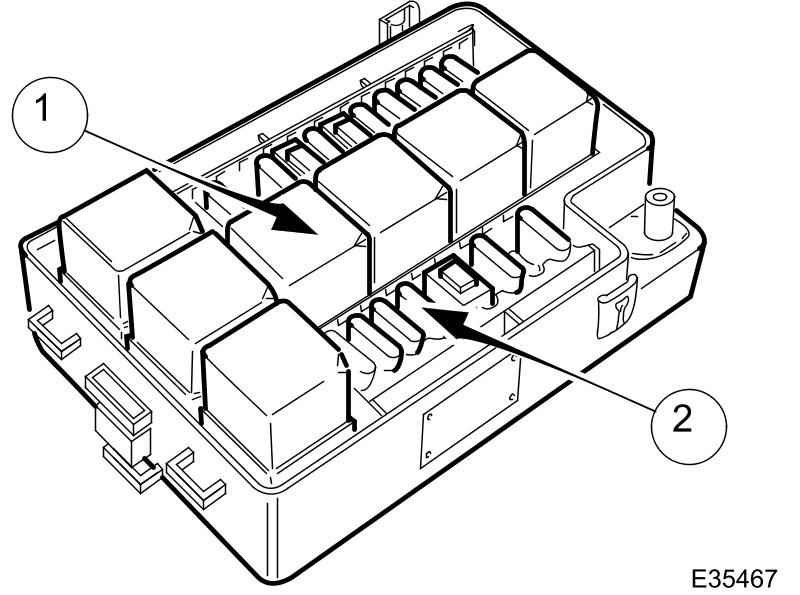

Remove the fuses and relays.
1. Note the position of each relay and remove them.
2. Identify each fuse and remove them. The value and position of each fuse is illustrated on the lid of the luggage compartment fuse-box - for all fuse-boxes on the vehicle.
