Module Location
WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2006 Jaguar XKR, 2006 Jaguar XK8, 2005 Jaguar XKR, 2005 Jaguar XK8, and 2004 Jaguar XKR. However, it is still accessible from the selected car via links, so may be relevant.

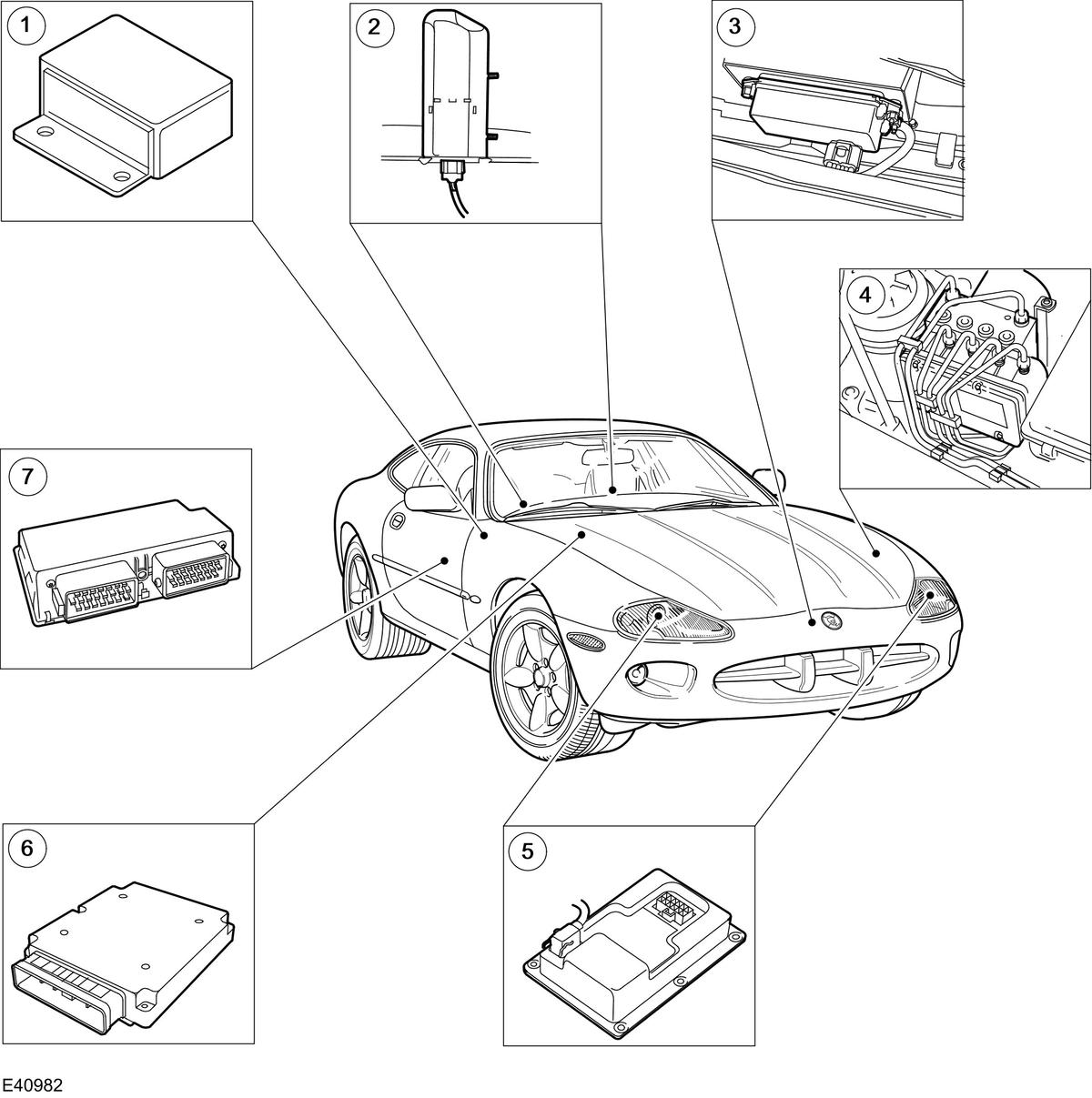

Courtesy of JAGUAR CARS, INC.
| Item Number |
Description |
| 1 |
Passive anti-theft system (PATS) module |
| 2 |
Head restraint control module |
| 3 |
Speed control module - vehicles with adaptive speed control |
| 4 |
Anti-lock brake system (ABS) module |
| 5 |
Ballast and headlamp leveling module |
| 6 |
Engine control module (ECM) |
| 7 |
Driver door module (DDM) |

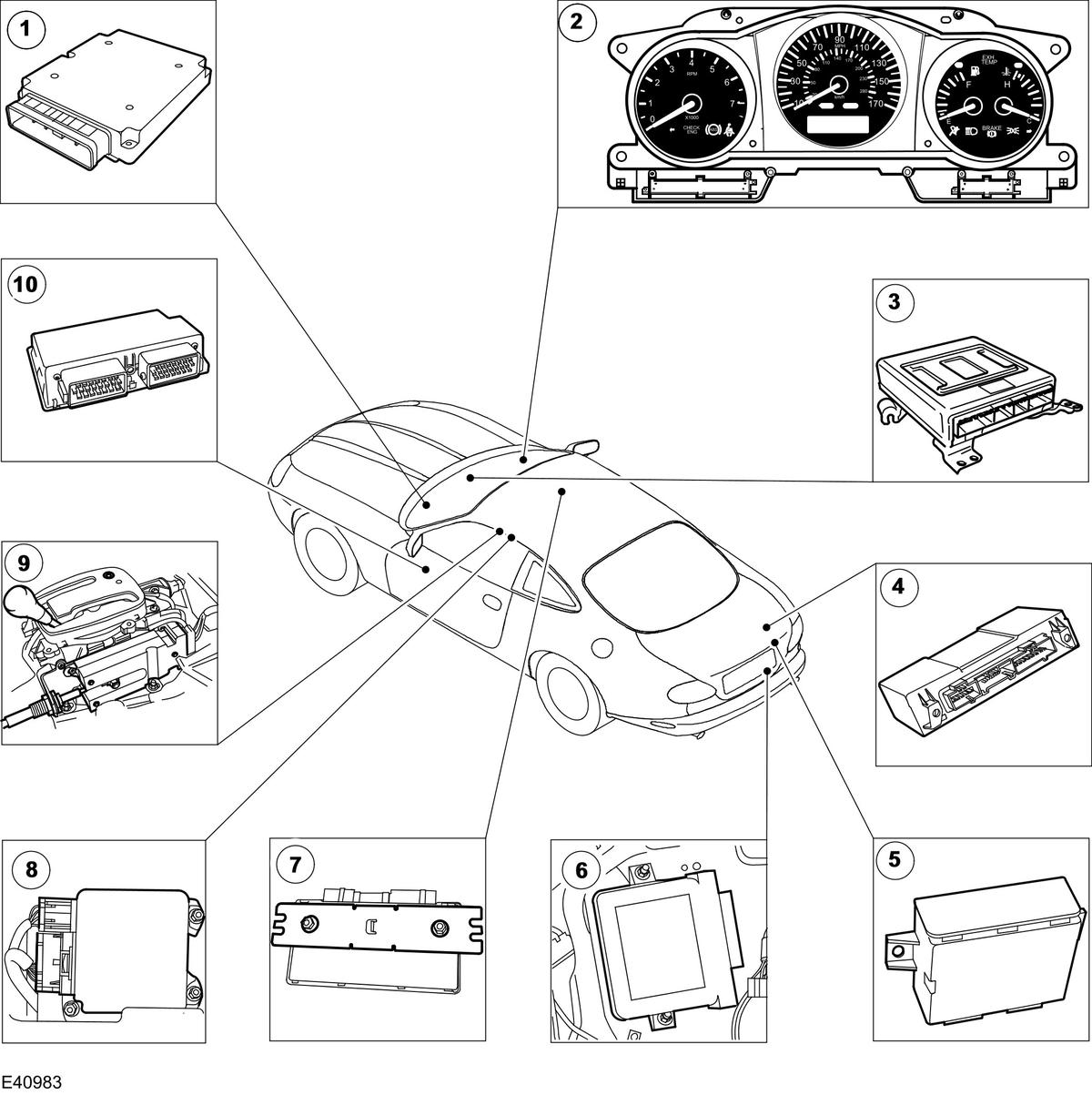

Courtesy of JAGUAR CARS, INC.
| Item Number |
Description |
| 1 |
Multifunction electronic control module |
| 2 |
Instrument cluster |
| 3 |
Climate control module |
| 4 |
Anti-theft alarm and double locking module |
| 5 |
Parking aid module |
| 6 |
Adaptive damping module |
| 7 |
Driver seat module (DSM) |
| 8 |
Restraints control module (RCM) |
| 9 |
Transmission control switch and selector lever indicator assembly |
| 10 |
Passenger door module (PDM) |
