Passenger Seat Control Module Connector End View

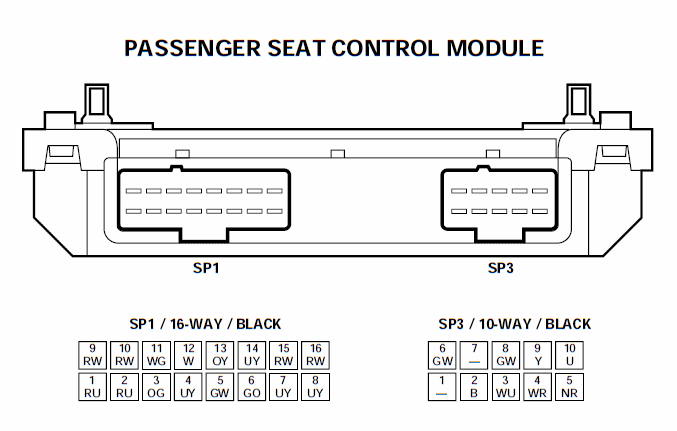

Fig 1: Passenger Seat Control Module Connector End View
G00558657Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
