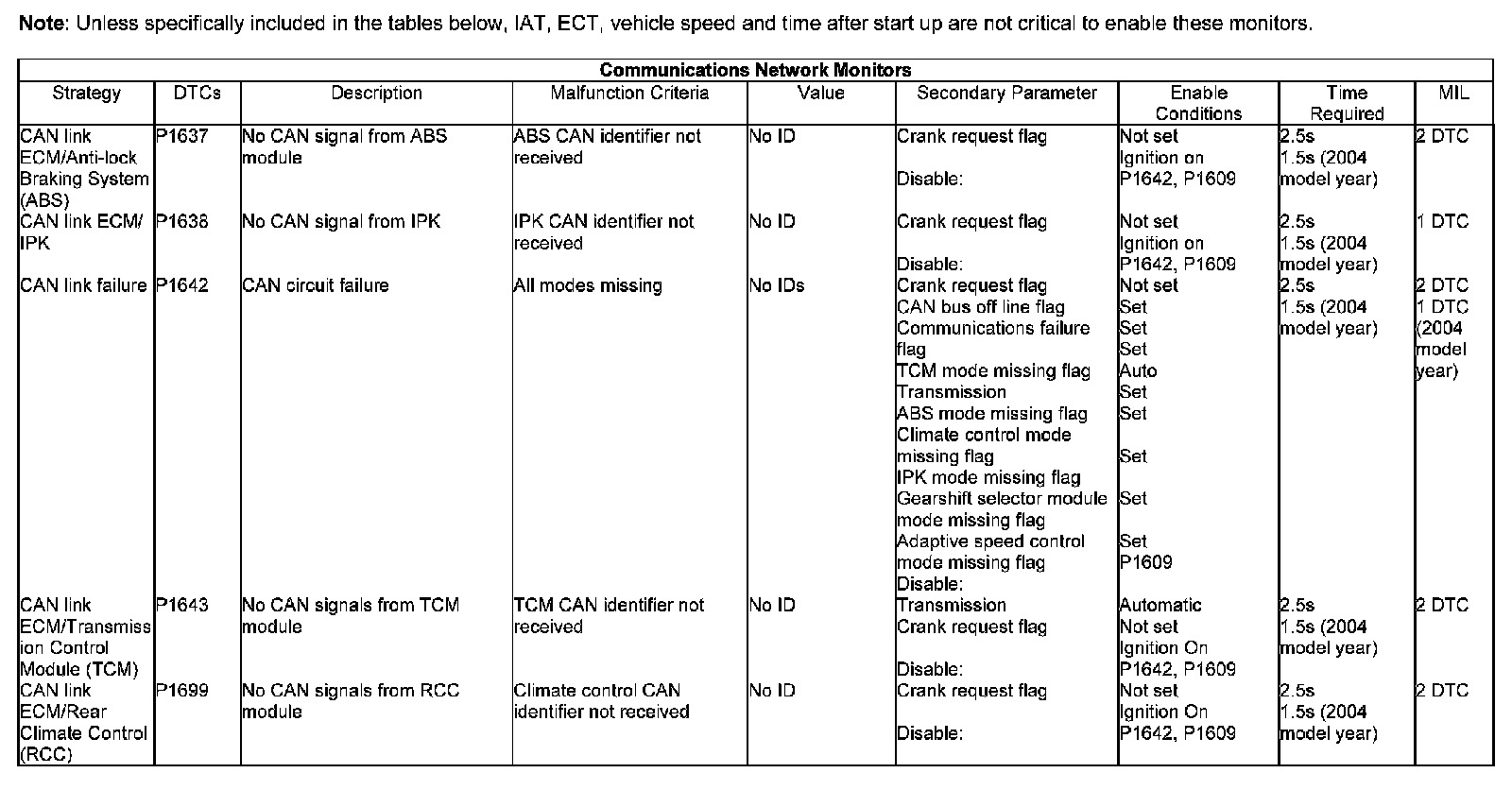

Communications Network Monitors



Communications Network Monitors

If the ECM does not receive any messages from the required module for a set time, then a fault is flagged.
