Navigation System Display Module - Removal and Installation: Removal

Remove battery cover and disconnect ground cable from battery terminal. Refer to BATTERY GROUND CABLE - REMOVAL AND INSTALLATION

Courtesy of JAGUAR CARS, INC.

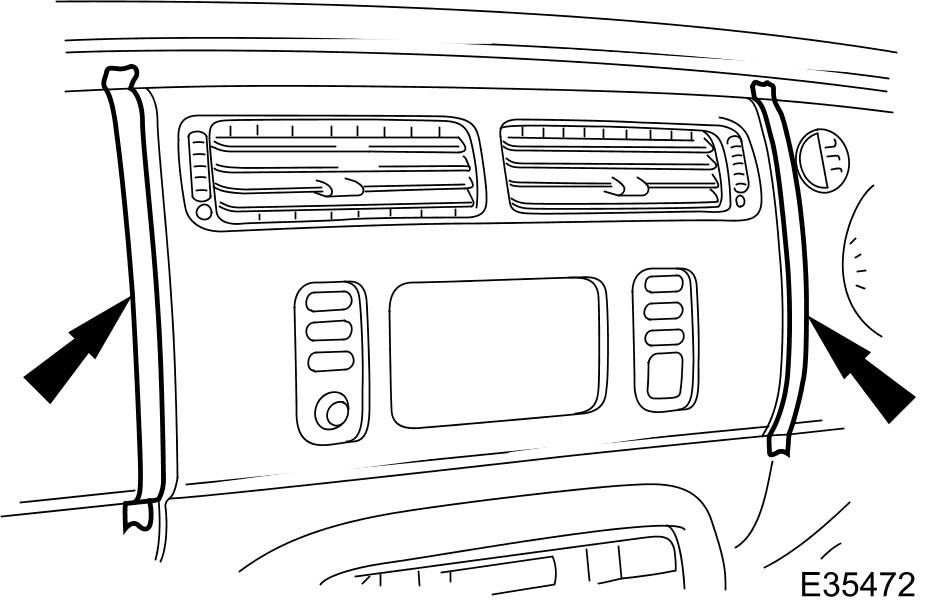

Position protective tape along adjacent veneer edges.

Courtesy of JAGUAR CARS, INC.

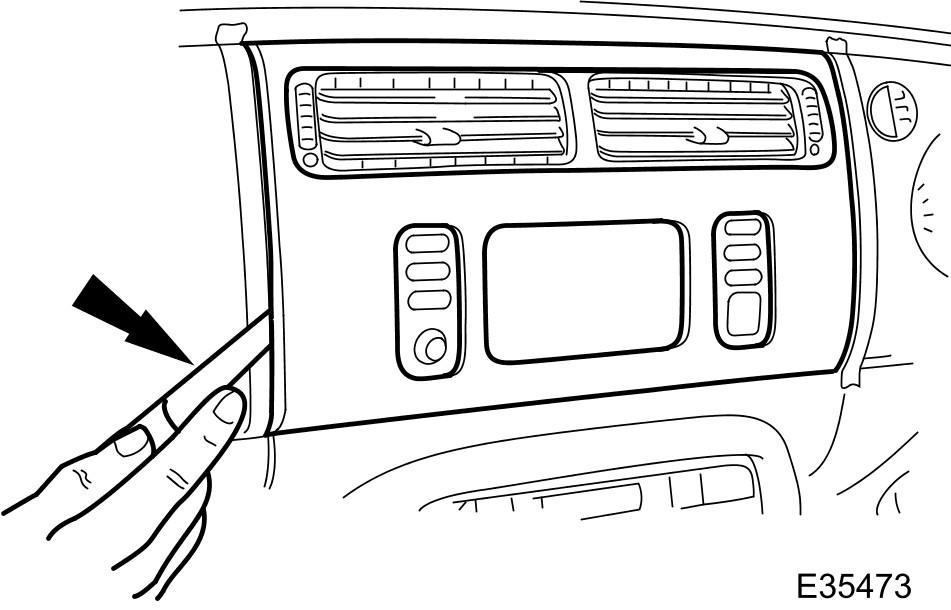

Commencing at bottom, use a thin plastic blade to release four center veneer clips.

Courtesy of JAGUAR CARS, INC.
Remove the four display and controls panel to facial screws.

Courtesy of JAGUAR CARS, INC.
Remove Panel.
- Partially withdraw panel for access.
- Depressing tangs, disconnect harness connectors.
- Remove panel from facial
