Ignition System



Ignition System

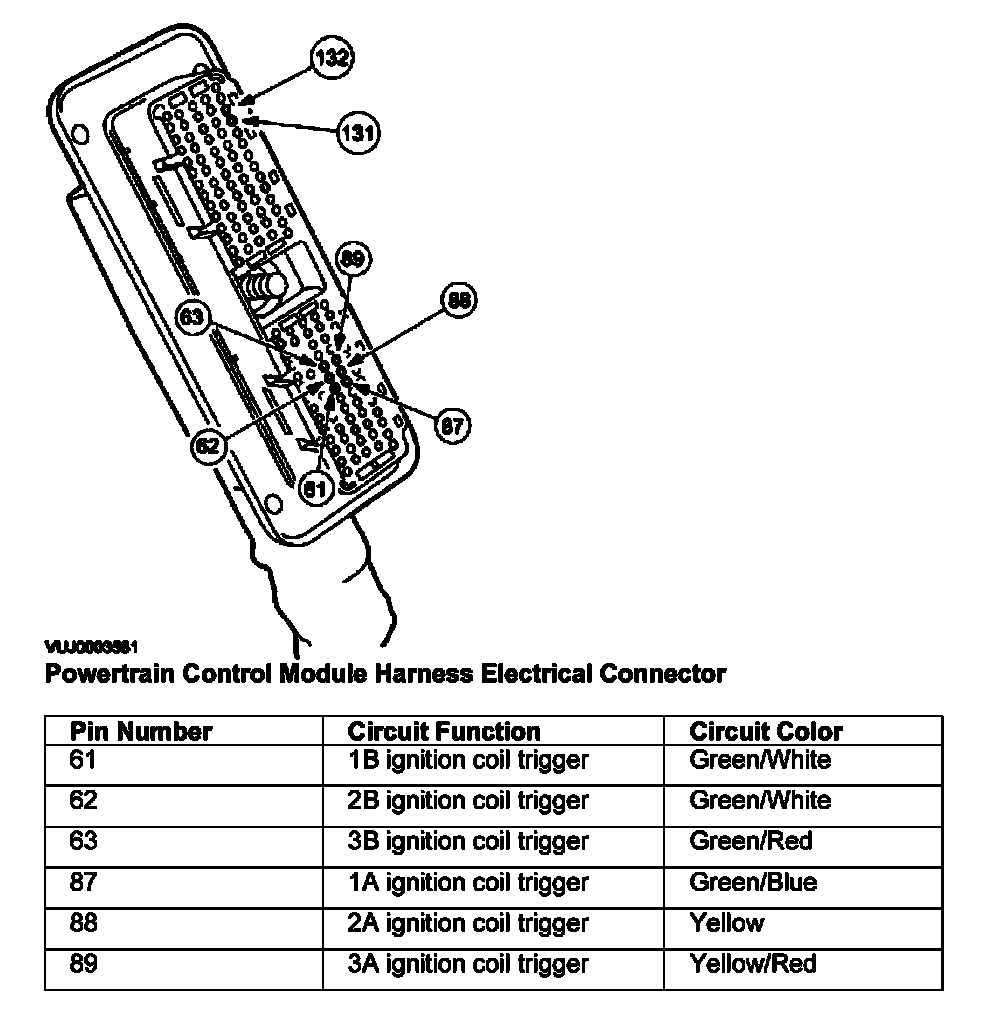

Powertrain Control Module Harness Electrical Connector:

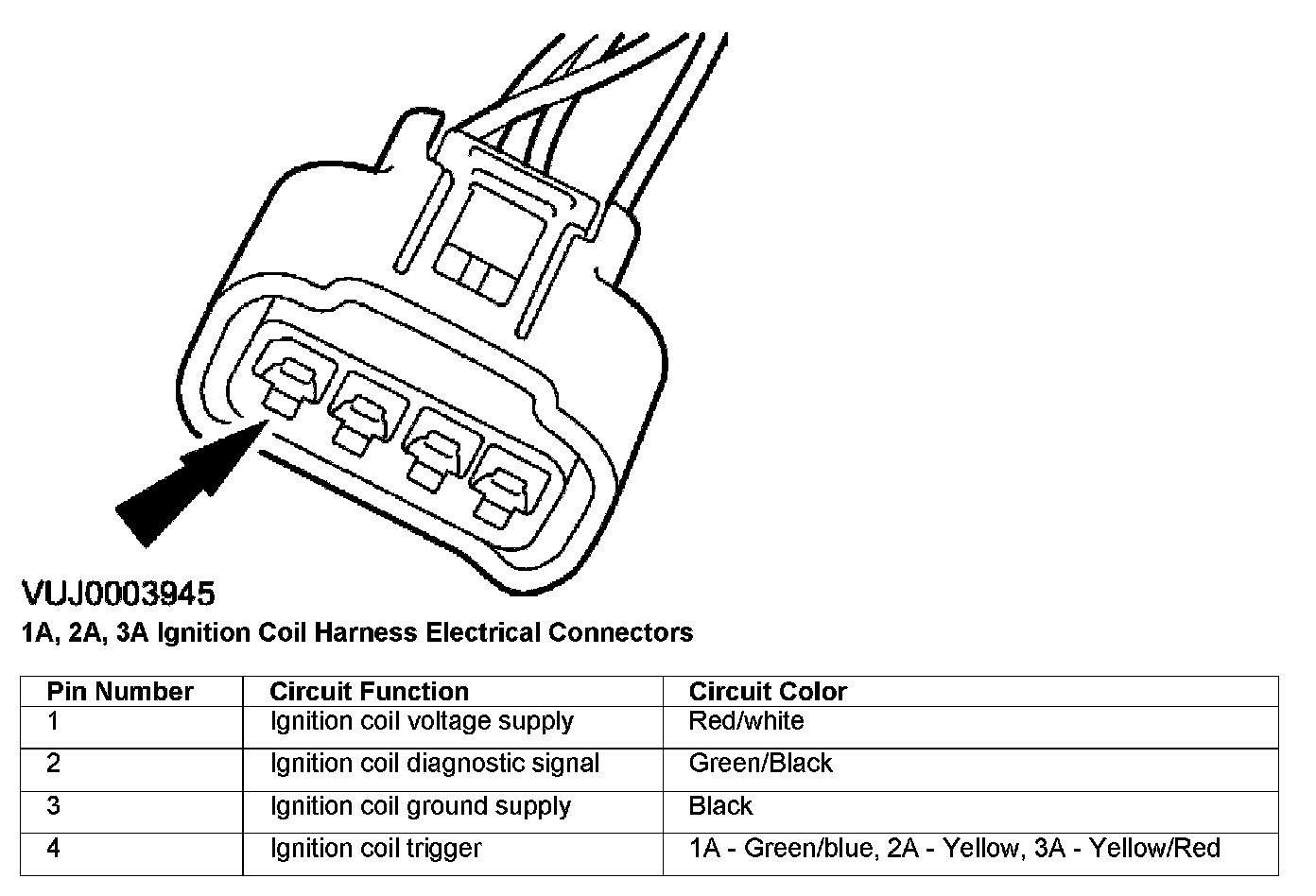

1A, 2A, 3A Ignition Coil Harness Electrical Connectors:

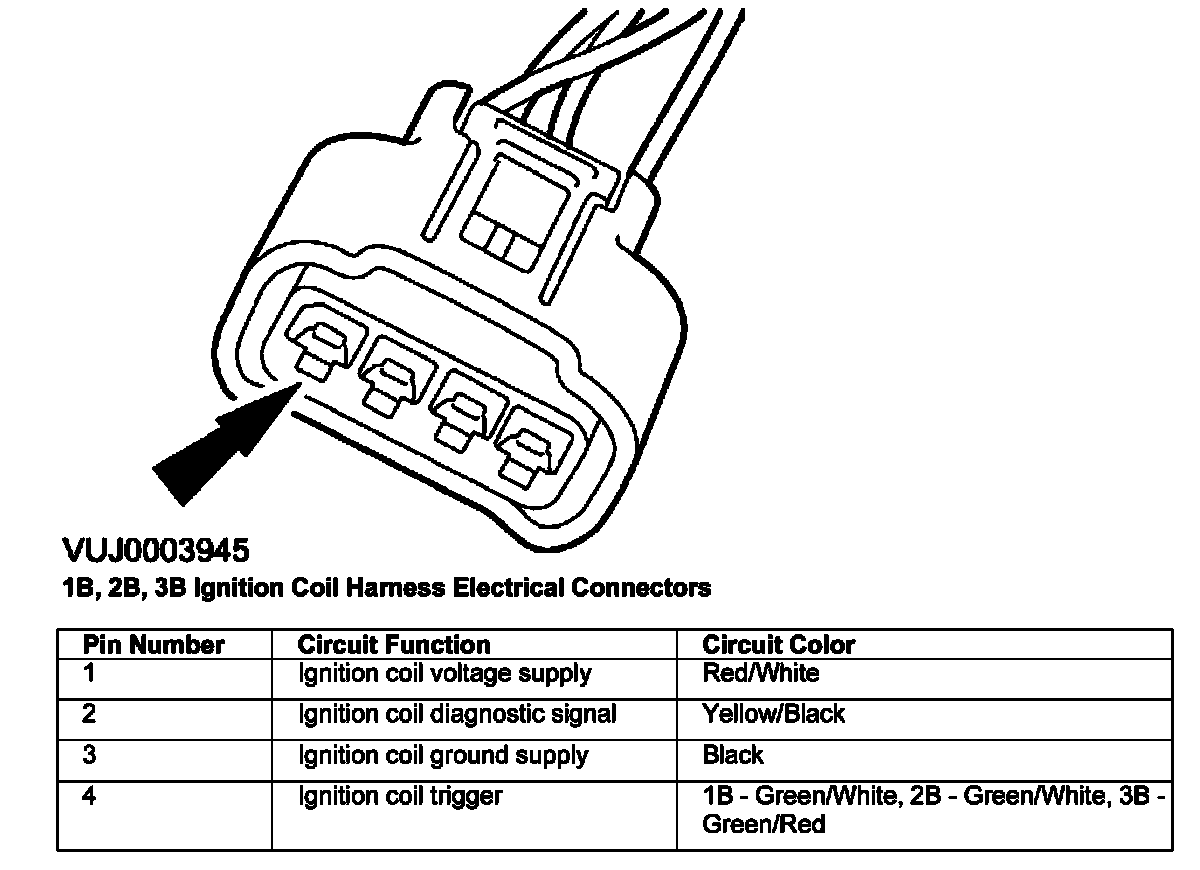

1B, 2B, 3B Ignition Coil Harness Electrical Connectors:




1A, 2A, 3A, 1B, 2B, 3B Ignition Coils:
