Vehicle Ride Height

Vehicle Ride Height

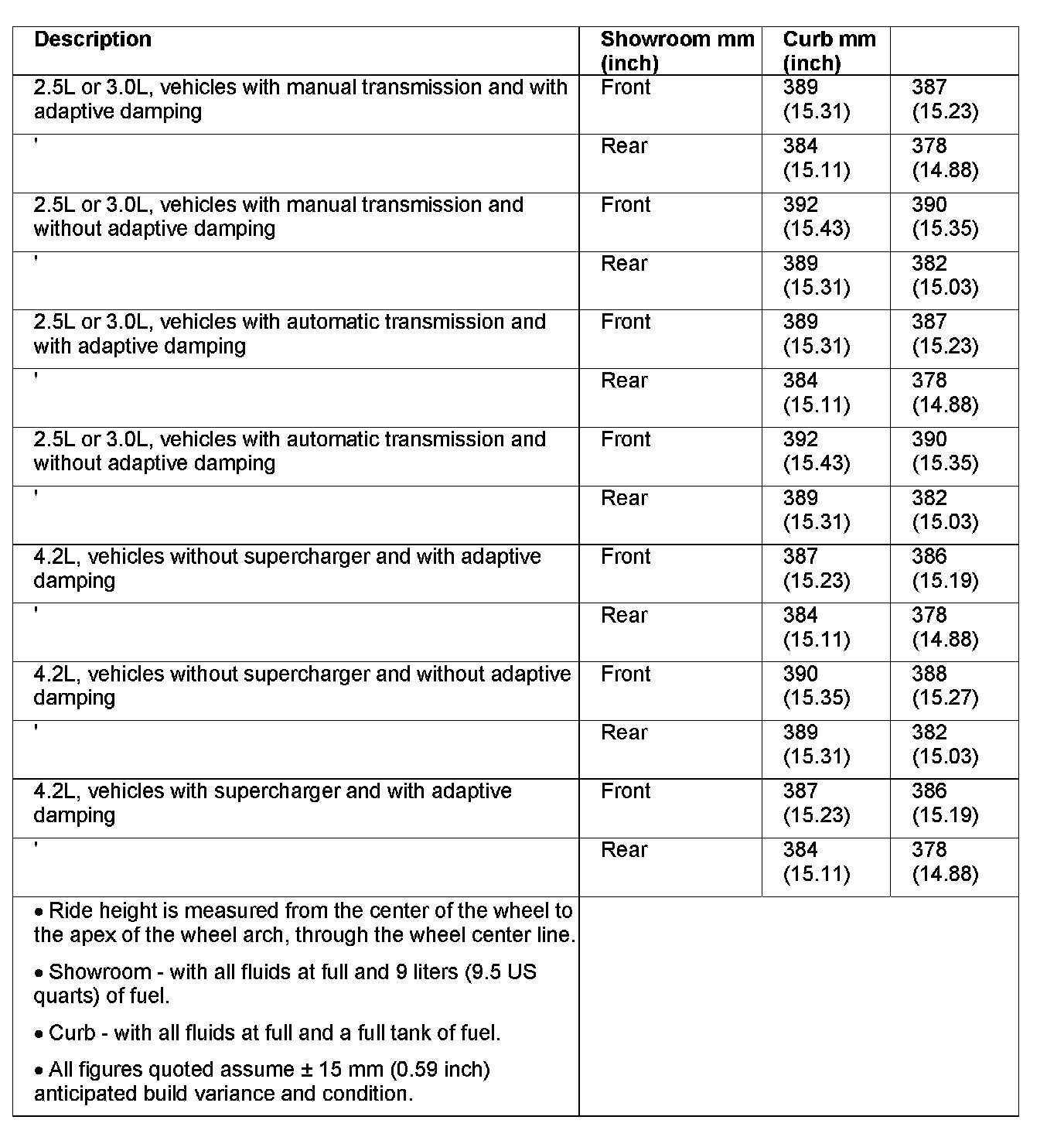

Ride Height
Front 388 ± 15 mm (15.3 inch ± 0.6 inch)
Rear 382.0 ± 15 mm (15.1 inch ± 0.6 inch)

Vehicle Lean (Side-to-Side Height Differences)
Front wheel opening difference-maximum 12 mm (0.5 inch)
Rear wheel opening difference-maximum 10 mm (0.4 inch)
Vehicle Attitude (Front-to-Rear Height Difference)
Maximum vehicle attitude = average front - average rear 14.5 mm (0.6 inch)
