Component Location

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2009 Jaguar XKR, 2009 Jaguar XK8, 2008 Jaguar XKR, 2008 Jaguar XK8, and 2007 Jaguar XKR. However, it is still accessible from the selected car via links, so may be relevant.

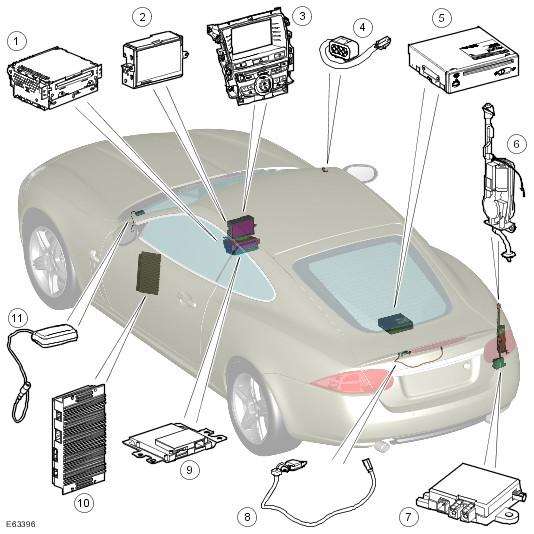

Fig 1: Navigation System Component Location
GJ0009906Courtesy of JAGUAR CARS, INC.
Item Number Description
1 Integrated Audio Module
2 Touch Screen Display
3 Integrated Control Panel
4 Microphone
5 Navigation computer
6 AM/FM antenna
7 FM antenna signal splitter
8 GPS antenna
9 Information and entertainment control module
10 Audio amplifier
11 Vehicle Information and Communication Systems (VICS) beacon antenna (Japan only)
