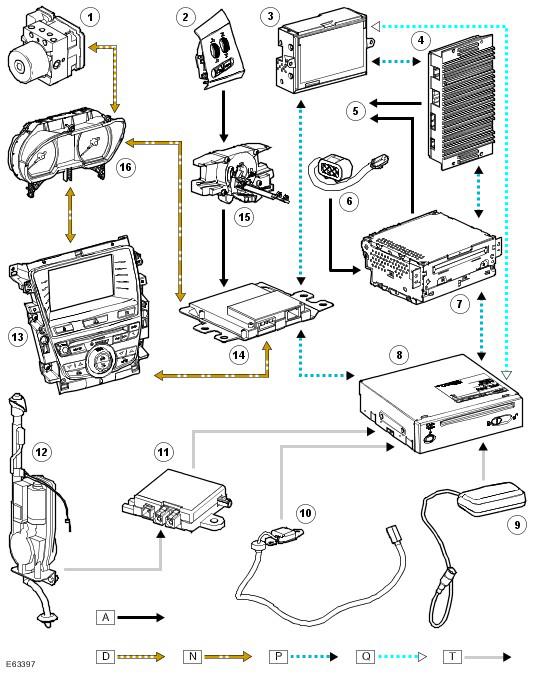

Control Diagram
WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2009 Jaguar XKR, 2009 Jaguar XK8, 2008 Jaguar XKR, 2008 Jaguar XK8, and 2007 Jaguar XKR. However, it is still accessible from the selected car via links, so may be relevant.
| Item Number | Description |
|---|---|
| 1 | ABS control module |
| 2 | Steering wheel controls |
| 3 | Touch Screen Display (TSD) |
| 4 | Audio amplifier |
| 5 | Speakers |
| 6 | Microphone |
| 7 | Integrated Audio Module |
| 8 | Navigation computer |
| 9 | Vehicle Information and Communication Systems (VICS) beacon antenna (Japan only) |
| 10 | GPS Antenna |
| 11 | AM/FM antenna splitter |
| 12 | AM/FM antenna |
| 13 | Integrated Control Panel |
| 14 | Information and entertainment control module |
| 15 | Clock spring |
| 16 | Instrument cluster |
NOTE:
A = Hardwired; D = High speed CAN bus; N = Medium speed CAN; P = MOST ring; Q = GVIF; T = Coaxial
