Information And Entertainment Control Panel
WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2009 Jaguar XKR, 2009 Jaguar XK8, 2008 Jaguar XKR, 2008 Jaguar XK8, and 2007 Jaguar XKR. However, it is still accessible from the selected car via links, so may be relevant.

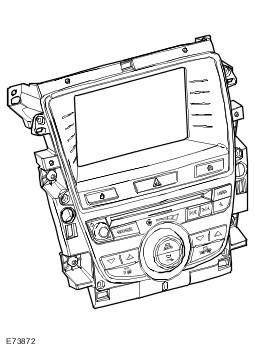

The Information and Entertainment Control Panel is connected to the MS CAN bus. The ICP incorporates switches for audio system control, climate control hazard warning lamps and the navigation system. The navigation system is operated from the TSD via signals on the MOST ring. Hard switches on the ICP send CAN signals to the ICM which transfers signals to the relevant module on the MOST ring.
