Air Suspension Module Connector End View

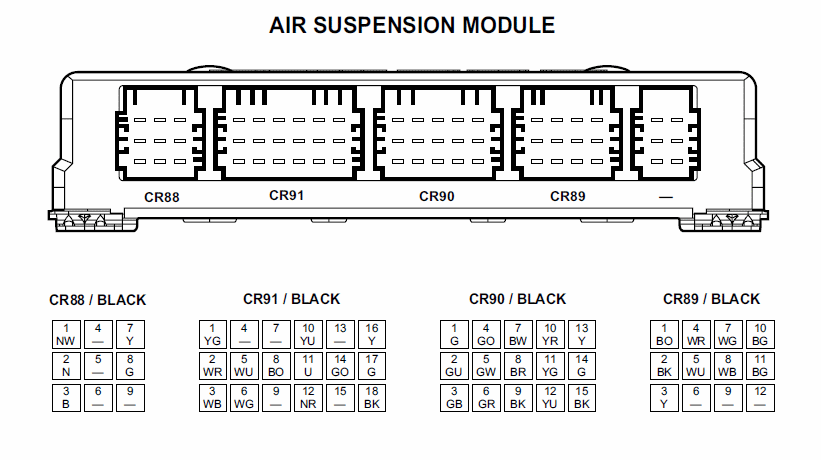

Fig 1: Air Suspension Module Connector End View
G00558664Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
