Instrument Cluster Connector End View
July 1:
So it begins
. Don't worry, this is not in the correct legal jurisdiction!
Instrument Cluster Connector End View

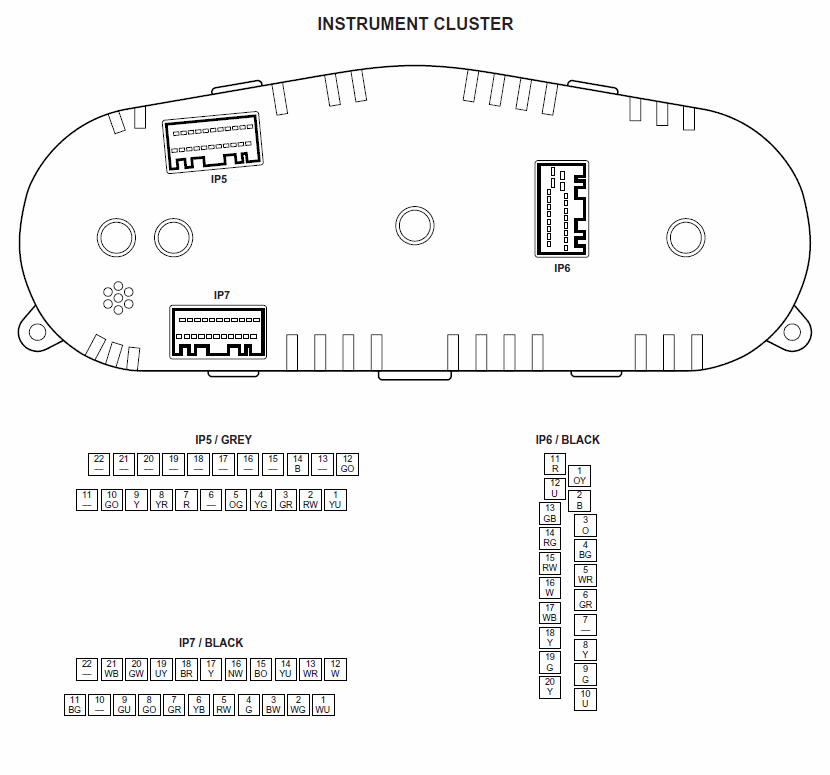

Fig 1: Instrument Cluster Connector End View
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
